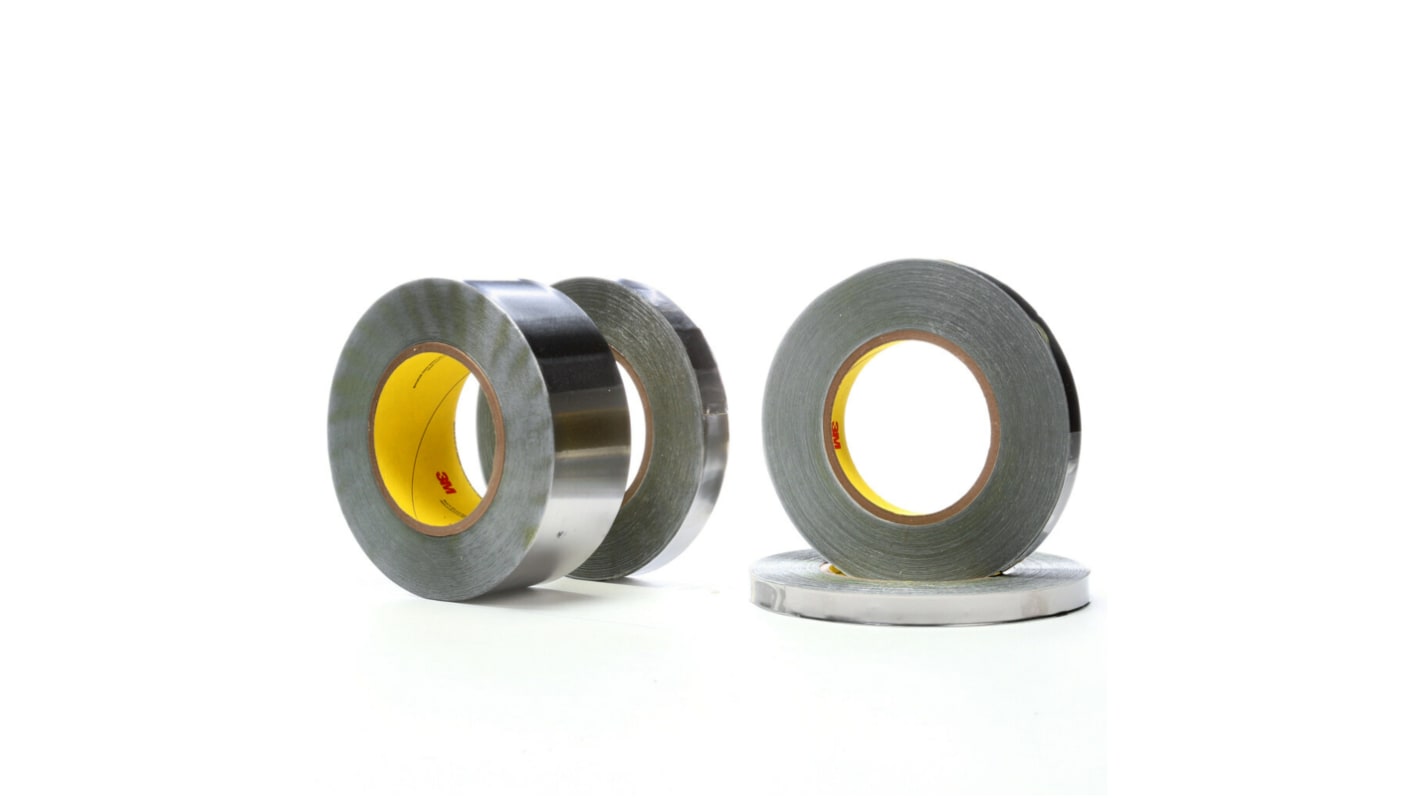

3M 420 US Conductive Metallic Tape, 19 mm x 32.9 m 106 °C Max
- RS Stock No.:
- 285-6224
- Distrelec Article No.:
- 302-00-745
- Mfr. Part No.:
- 7000029006
- Brand:
- 3M
Subtotal (1 unit)*
$237.60
(exc. GST)
$261.36
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- Final 3 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | $237.60 |
*price indicative
- RS Stock No.:
- 285-6224
- Distrelec Article No.:
- 302-00-745
- Mfr. Part No.:
- 7000029006
- Brand:
- 3M
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Product Type | Metallic Tape | |
| Backing Material | Lead | |
| Thickness | 0.17mm | |
| Width | 19 mm | |
| Length | 32.9m | |
| Conductivity | Conductive | |
| Adhesion Strength | 490N/cm | |
| Colour | Silver | |
| Adhesive Material | Rubber | |
| Tensile Strength | 3.5N/cm | |
| Minimum Operating Temperature | -54°C | |
| Maximum Operating Temperature | 106°C | |
| Standards/Approvals | HH-T-29B | |
| Model Number | 420 US | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Product Type Metallic Tape | ||
Backing Material Lead | ||
Thickness 0.17mm | ||
Width 19 mm | ||
Length 32.9m | ||
Conductivity Conductive | ||
Adhesion Strength 490N/cm | ||
Colour Silver | ||
Adhesive Material Rubber | ||
Tensile Strength 3.5N/cm | ||
Minimum Operating Temperature -54°C | ||
Maximum Operating Temperature 106°C | ||
Standards/Approvals HH-T-29B | ||
Model Number 420 US | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
The 3M Lead Foil Tape 420 is an electrically and thermally conductive tape. This highly conformable tape resists flame, moisture, weather, UV degradation, chemicals and radiation. Mated with an easy-release film liner, our malleable tape can be shaped into complex or detailed patterns or die-cut into specific shapes to meet assembly and manufacturing process needs.
Easily removed after use
Rubber based adhesive bonds well a variety of surface
Performs over a wide variety of temperatures
