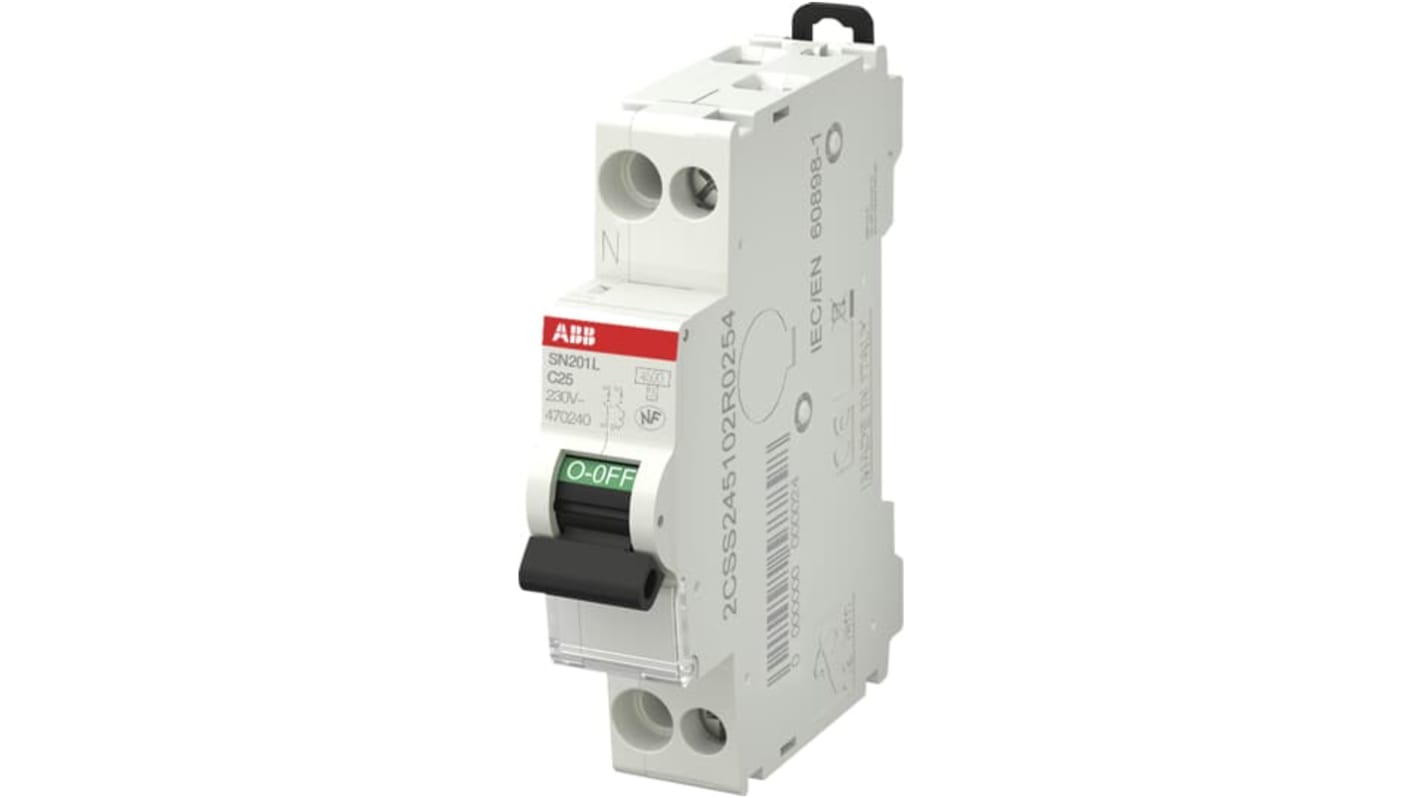

ABB SN201 SN201 Miniature Circuit Breaker, 1-Pole, 25A, Type C, 230V ac AC, 4.5 kA Breaking Capacity

This is an MCB designed for effective circuit protection in various electrical installations. As a 1+N pole circuit breaker with a current rating of 25 A, it provides reliable performance with a rated AC voltage of 230 V. The device measures 18mm in width and 69mm in length, suitable for mounting on DIN rails. This Compact design makes it Ideal for use in limited spaces while offering robust functionality.

• Provides short circuit protection for enhanced safety
• Type C circuit breaker suitable for inductive loads
• High breaking capacity of 4.5 kA for effective fault management
• Screw Terminal contact ensures secure electrical connections
• Designed for easy installation on DIN rail mounting

• Used in residential and commercial electrical panels
• Ideal for protecting lighting circuits from overloads
• Suitable for automation systems requiring circuit protection
• Employed in machinery needing reliable current control

The high breaking capacity of 4.5 kA allows the device to handle large fault currents without failing, thereby minimising the risk of damage to the system or fire hazards during electrical faults.

This device is designed as a Type C circuit breaker, making it suitable for handling inductive loads such as motors and transformers commonly found in industrial settings.

The Compact design and DIN rail compatibility of the MCB facilitate straightforward mounting in electrical enclosures, allowing for quick and efficient installation.

The design incorporates robust materials and a toggle switch reset actuator, which aids in reliable operation and quick resetting after a tripping event, ensuring minimal downtime.
