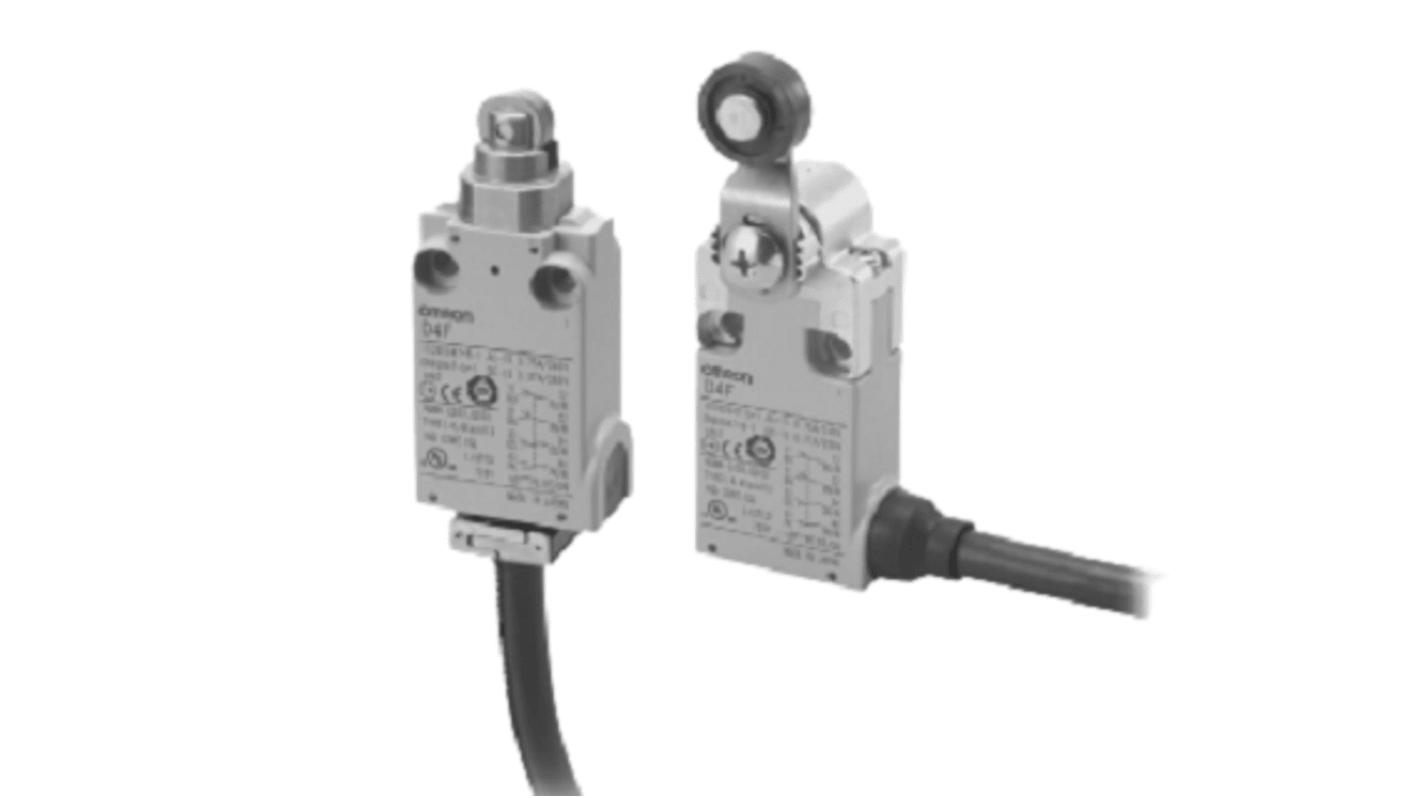

Omron D4F Series Roller Plunger Safety Limit Switch, 1 NO/1 NC, IP67

RS Stock No.:: 264-7387
Mfr. Part No.:: D4F-102-1D
Brand:: Omron

Omron D4F Series Roller Plunger Safety Limit Switch, 1 NO/1 NC, IP67

Subtotal (1 unit)*

$424.76

(exc. GST)

$467.24

(inc. GST)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	$424.76

*price indicative

RS Stock No.:: 264-7387
Mfr. Part No.:: D4F-102-1D
Brand:: Omron

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Actuator Type	Roller Plunger
	Product Type	Safety Limit Switch
	IP Rating	IP67
	Contact Configuration	1 NO/1 NC
	Contact Type	Slow Action
	Terminal Type	Earth
	Series	D4F
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	70°C
	Depth	30.8mm
	Width	30mm
	Standards/Approvals	UL, EN (TÜV), CCC
	Hazardous Area Certification	NO
	Mechanical Life	120Operations
	Operating Force	12N

	Select all
	Brand Omron
	Actuator Type Roller Plunger
	Product Type Safety Limit Switch
	IP Rating IP67
	Contact Configuration 1 NO/1 NC
	Contact Type Slow Action
	Terminal Type Earth
	Series D4F
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature 70°C
	Depth 30.8mm
	Width 30mm
	Standards/Approvals UL, EN (TÜV), CCC
	Hazardous Area Certification NO
	Mechanical Life 120Operations
	Operating Force 12N

Datasheet - D4F-102-1D

Omron D4F Series Safety Limit Switch, 12N Operating Force, IP67 - D4F-102-1D

This safety limit switch is a Compact electromechanical actuator designed to detect position and interrupt circuits within industrial control systems. It is suited to equipment requiring a robust, ingress-protected switching element with clear make/break contacts and a roller plunger actuator for direct mechanical engagement.

Features & Benefits

• IP67 enclosure protects against dust ingress and temporary immersion
• 1NO 1NC contact set permits both make and break sensing
• Slow action contacts minimise contact bounce during switching
• 12 N operating force enables consistent actuation with modest input loads
• Mechanical endurance rated for 120 operations supports intermittent use
• Terminal earth connection simplifies earthing arrangements for installations

Applications

• Suitable for conveyor end-of-travel detection in manufacturing lines
• Ideal for safety interlock on machine guards and access panels
• Used with packaging machinery for position confirmation of actuators
• Can be used for limit sensing on automated material-handling equipment

What temperature range can it reliably operate within?

It functions across a low of −30°C up to a high of 70°C, allowing use in many industrial environments.

How does the actuator type affect installation orientation?

The roller plunger permits linear contact with moving parts and accommodates slight lateral motion, reducing alignment sensitivity during mounting.

How does the device’s width benefit panel or section mounting?

With a 30mm width it occupies minimal lateral space, facilitating tight layouts on control panels or assembly frames.
