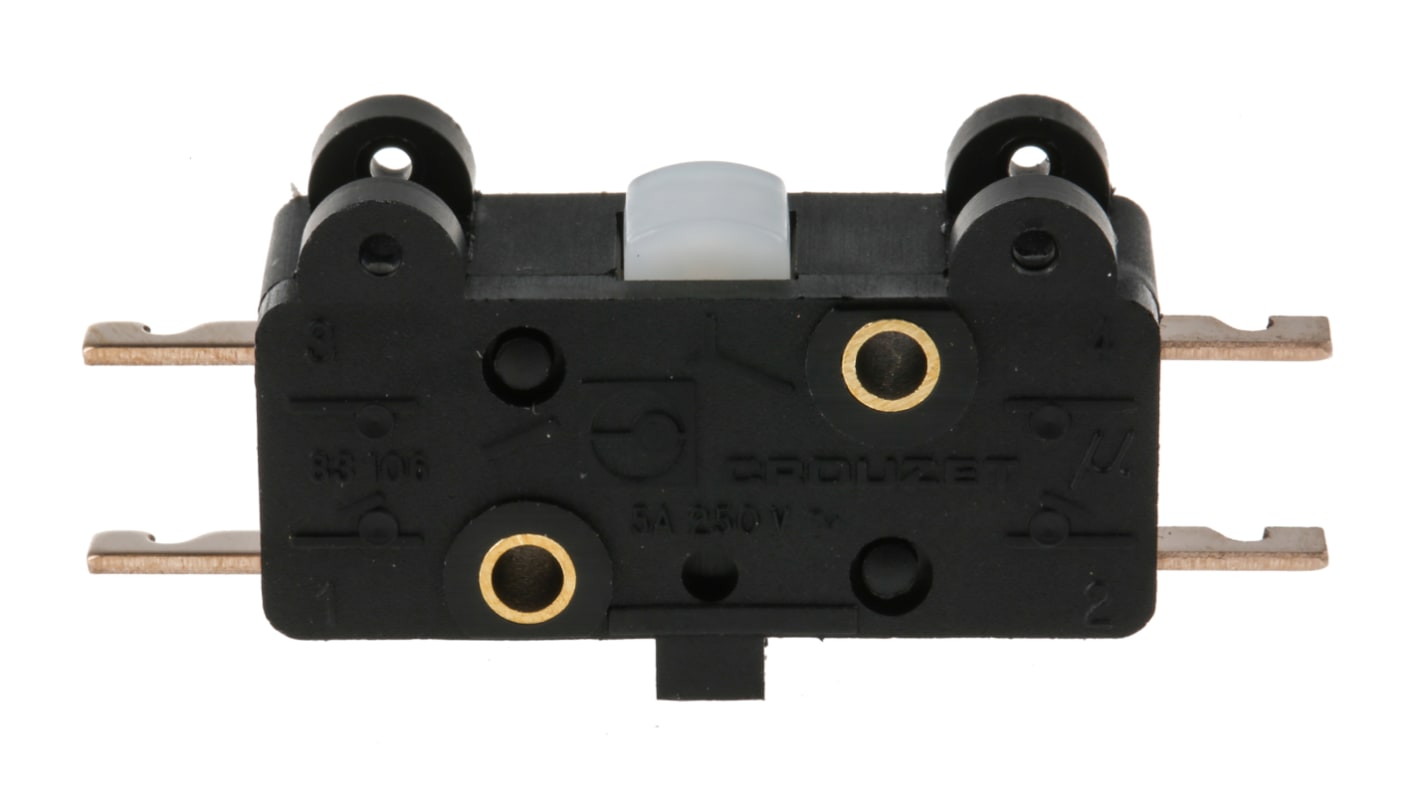

Crouzet Plunger Limit Switch, NO/NC, SPDT, Polyamide Housing, 250V ac Max, 17.5A Max

RS Stock No.:: 539-274
Mfr. Part No.:: 83106030
Brand:: Crouzet

Crouzet Plunger Limit Switch, NO/NC, SPDT, Polyamide Housing, 250V ac Max, 17.5A Max

3 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$38.42

(exc. GST)

$42.26

(inc. GST)

Units	Per unit
1 - 5	$38.42
6 - 11	$36.89
12 +	$35.36

RS Stock No.:: 539-274
Mfr. Part No.:: 83106030
Brand:: Crouzet

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: MA

Product Details

Precision Limit Switches with Cable

High precision limit switch with pre-wired 3 core cable (black,brown,blue), featuring an adjustable threaded barrel fixing.

Thermal current (Ith) 12 A
Assigned operating current (Ie) 5A at 250V
Minimum operating travel of 0.2mm
Temperature range -5 to +70 deg C
3 Terminal single pole form C changeover contacts
0.5M 3 core cable fitted, 0.75mm² conductors
Mechanical life 1 000 000 operations

Approvals

CSA

Telemecanique, Square D & Crouzet

Specifications

Attribute	Value
Actuator Type	Plunger
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
Maximum Current	17.5A
Housing Material	Polyamide
Maximum AC Voltage	250V
Length	19mm
Depth	13.6mm
Width	32mm
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-20°C
Mechanical Life	10000000Cycles
