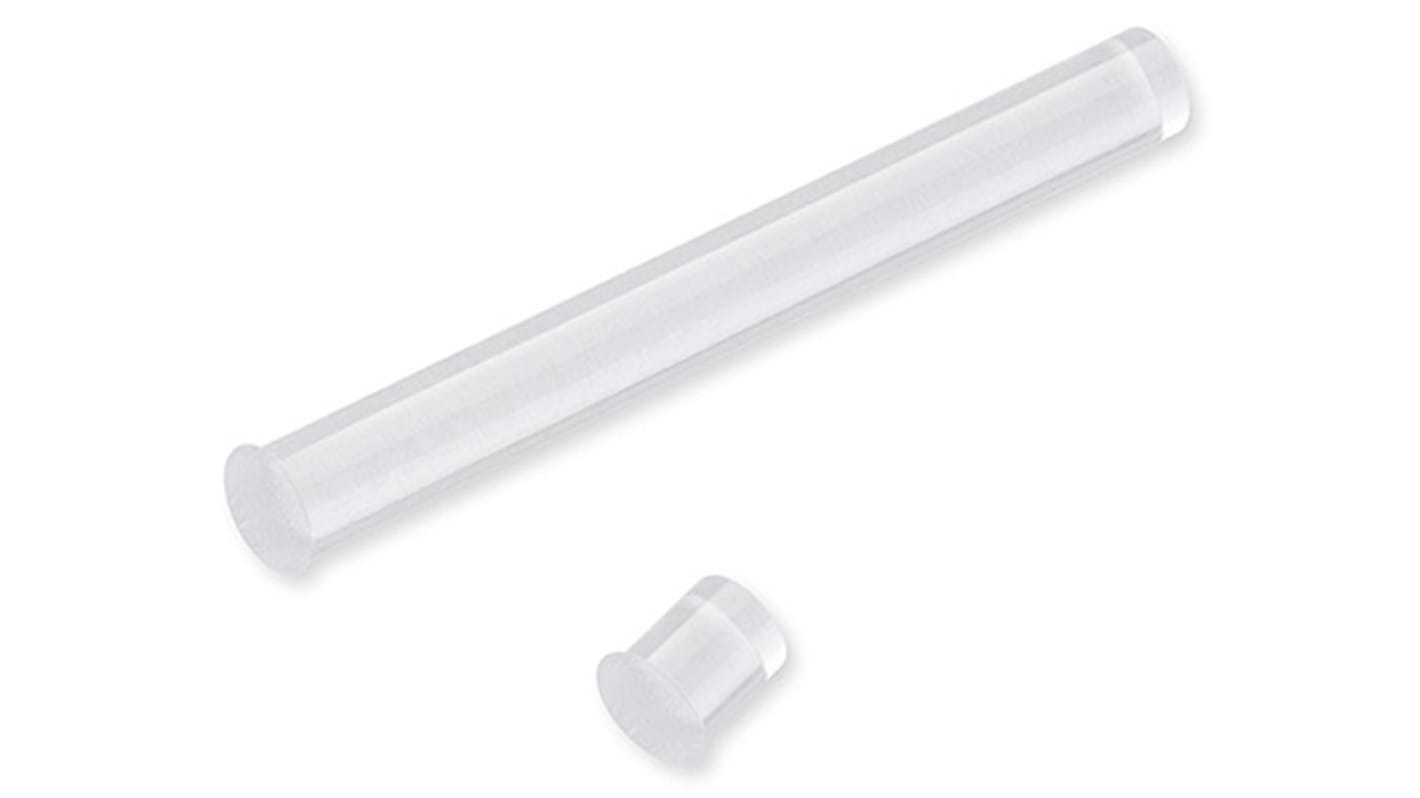

LFB063CTP VCC, Panel Mount LED Light Pipe, Clear Round Lens, Clear LED included

RS Stock No.:: 137-1357
Mfr. Part No.:: LFB063CTP
Brand:: VCC

LFB063CTP VCC, Panel Mount LED Light Pipe, Clear Round Lens, Clear LED included

View all LED Light Pipes

1975 In Global stock for delivery within 10 working day(s)

Added

View basket

Price (ex. GST) Each (In a Pack of 25)

$0.735

(exc. GST)

$0.809

(inc. GST)

Units	Per unit	Per Pack*
25 - 225	$0.735	$18.375
250 - 475	$0.722	$18.05
500 +	$0.708	$17.70
*price indicative

RS Stock No.:: 137-1357
Mfr. Part No.:: LFB063CTP
Brand:: VCC

Technical data sheets

LFB Series 3mm Press-fit, Low-profile Diffused Rigid Light Pipe

Legislation and Compliance

Product Details

LFB Series Press Fit Low Profile 3mm Light Pipes

The VCC LFB Series of 3mm low profile rigid light pipes feature a diffused round surface to provide uniform brightness and a wide viewing angle of 120°. They are front panel press-fit mounting with crushable ribs that simplify installation. The light pipes are available in a wide variety of lengths to accommodate differing PCB to front panel distances. An optional retainer (RTN112) for high-vibration environments is available for LFB Series of light pipes; see RS 137-1436.

• Low profile, flush panel design
• For use with SMT or through-hole LEDs
• Optical grade polycarbonate for maximum light transmission
• Wide range of standard lengths
• Wide viewing angle of 120°
• Frosted surface diffuses light and provides uniform brightness

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

LED Light Pipes - VCC

Specifications

Attribute	Value
Flexible/Rigid	Rigid
Length	15.9mm
Orientation	Straight
Dimensions	3 (Dia.) x 15.9mm
Mounting Type	Panel Mount
LED Colours	Clear
Lens Shape	Round
LED Included	Yes
Lens Colour	Clear
Outer Diameter	3mm
Inner Diameter	2.6mm
Series	LFB
