- RS Stock No.:
- 137-1370
- Mfr. Part No.:
- LMC_020_CTP
- Brand:
- VCC
680 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 20)
$1.009
(exc. GST)
$1.11
(inc. GST)
Units | Per unit | Per Pack* |
20 - 240 | $1.009 | $20.18 |
260 - 480 | $0.983 | $19.66 |
500 + | $0.969 | $19.38 |
*price indicative |
- RS Stock No.:
- 137-1370
- Mfr. Part No.:
- LMC_020_CTP
- Brand:
- VCC
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

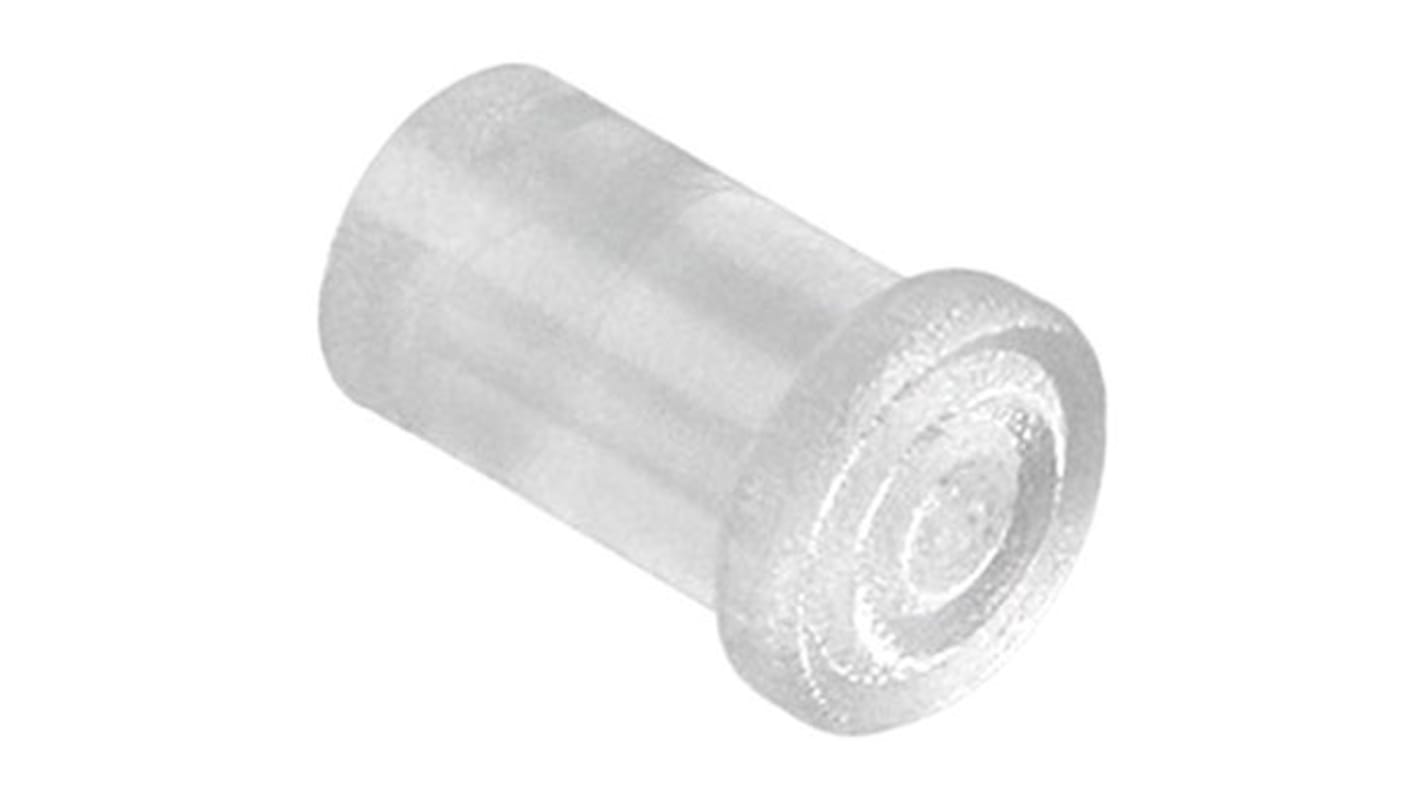

LMC Series Panel Mount Light Pipes
The VCC LMC series of panel mount micro light pipes feature a flush design with a wide viewing angle. The 2.5 mm diameter light pipes allows transmission of light from a surface mount or through-hole LED to a front panel display. The small size of the LMC series allows a panel mounting pitch (between centres) of only 4.8 mm.
Clear optical grade acrylic, UL 94-HB
Wide 160° viewing angle
2.59 mm mounting hole
Available in a variety of lengths
Wide 160° viewing angle
2.59 mm mounting hole
Available in a variety of lengths
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
LED Light Pipes - VCC
Specifications
Attribute | Value |
---|---|
Flexible/Rigid | Rigid |
Length | 5.842mm |
Orientation | Straight |
Dimensions | 3.18 (Dia.) x 24.43mm |
LED Colours | Clear |
Mounting Type | Panel Mount |
Lens Shape | Round |
LED Included | Yes |
Lens Colour | Clear |
Inner Diameter | 2.54mm |
Outer Diameter | 3.18mm |
Series | LMC |
