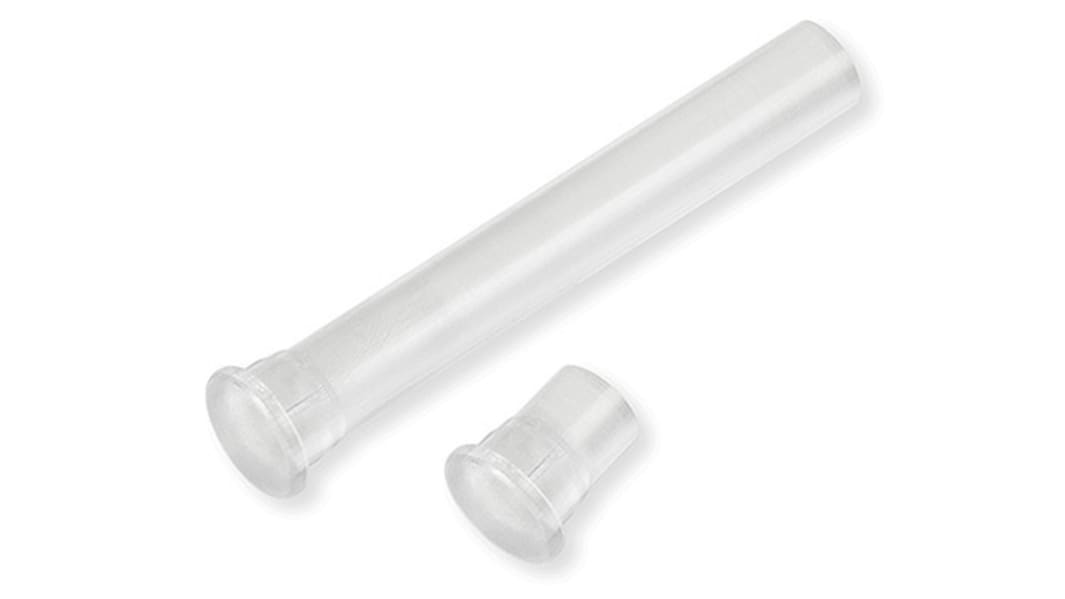

LFC075CTP VCC, Panel Mount LED Light Pipe, Clear Round Lens, Clear LED included

RS Stock No.:: 137-1353
Mfr. Part No.:: LFC075CTP
Brand:: VCC

LFC075CTP VCC, Panel Mount LED Light Pipe, Clear Round Lens, Clear LED included

View all LED Light Pipes

300 In Global stock for delivery within 10 working day(s)

Added

View basket

Price (ex. GST) Each (In a Pack of 25)

$0.801

(exc. GST)

$0.881

(inc. GST)

Units	Per unit	Per Pack*
25 - 225	$0.801	$20.025
250 - 475	$0.782	$19.55
500 +	$0.77	$19.25
*price indicative

RS Stock No.:: 137-1353
Mfr. Part No.:: LFC075CTP
Brand:: VCC

Technical data sheets

LFC Series 5mm Press-fit, Low-profile Diffused Rigid Light Pipe

Legislation and Compliance

COO (Country of Origin):: MX

Product Details

LFC Series Press Fit Low Profile 5mm Light Pipes

The VCC LFC Series of 5mm low profile rigid light pipes feature a diffused round surface to provide uniform brightness and a wide viewing angle of 120°. They are front panel press-fit mounting with crushable ribs that simplify installation. The light pipes are available in a wide variety of lengths to accommodate differing PCB to front panel distances. An optional retainer (RTN125) for high-vibration environments is available for LFB Series of light pipes; see RS 1371-321.

• Low profile, flush panel design
• For use with SMT or through-hole LEDs
• Optical grade polycarbonate for maximum light transmission
• Wide range of standard lengths
• Wide viewing angle of 120°
• Frosted surface diffuses light and provides uniform brightness

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

LED Light Pipes - VCC

Specifications

Attribute	Value
Flexible/Rigid	Rigid
Orientation	Straight
Length	19mm
Dimensions	5 (Dia.) x 19mm
LED Colours	Clear
Mounting Type	Panel Mount
Lens Shape	Round
LED Included	Yes
Lens Colour	Clear
Outer Diameter	5mm
Inner Diameter	3.86mm
Series	LFC
