DiodesZetex LED Driver IC, 4.5/40 V 1.5 A 8-Pin MSOP

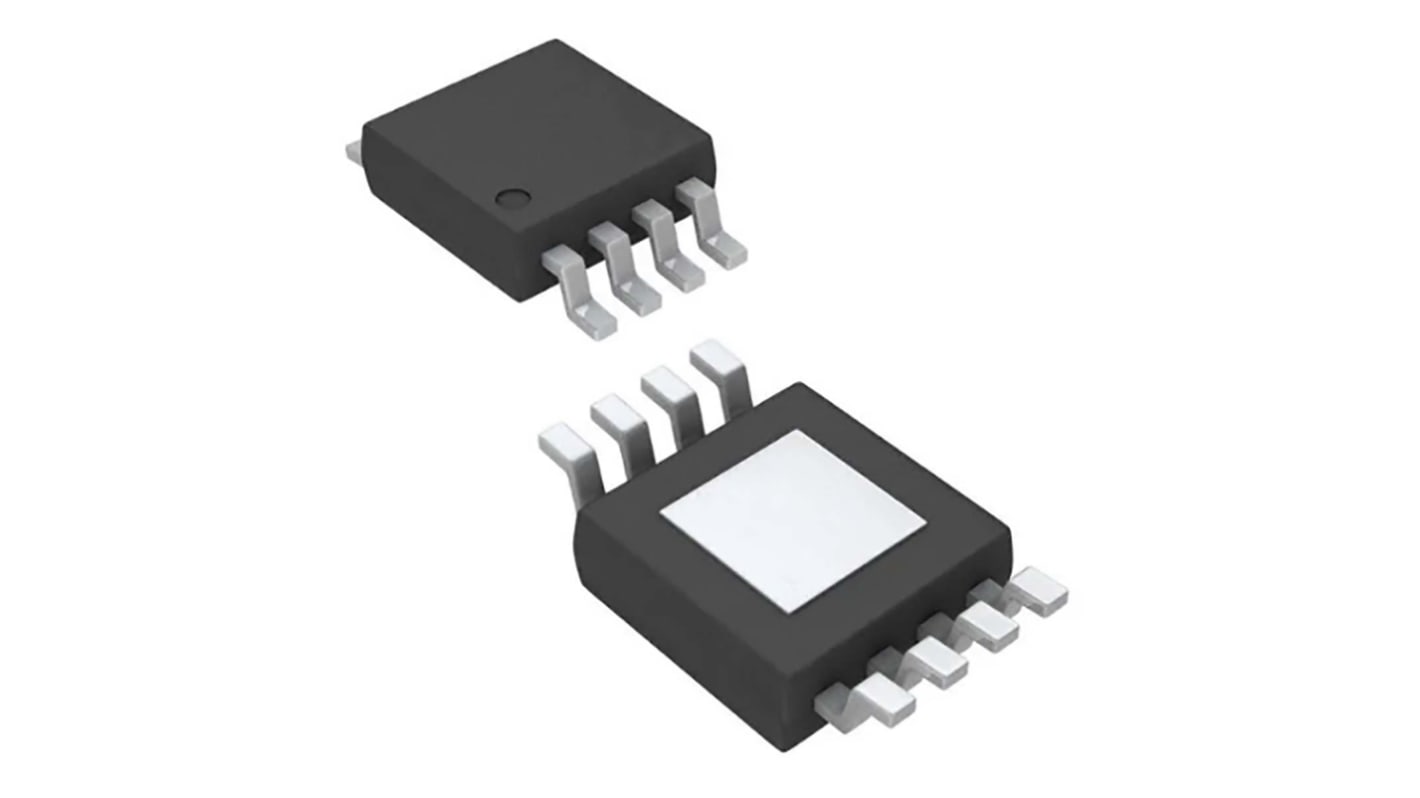

This image is representative of the product range

View all LED Driver ICs
Bulk discount available

Subtotal (1 reel of 2500 units)*

$1,825.00

(exc. GST)

$2,000.00

(inc. GST)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
Per Reel*
2500 - 2500$0.73$1,825.00
5000 - 7500$0.711$1,777.50
10000 +$0.70$1,750.00

*price indicative

RS Stock No.:
206-0171
Mfr. Part No.:
AL8860QMP-13
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Output Current

1.5A

Product Type

LED Driver IC

Input Voltage

4.5/40 V

Input Voltage Type

DC

Dimming Operation

PWM

Maximum Output Power

1.2W

Mount Type

Through Hole

Package Type

MSOP

Number of Pins

8

Maximum Output Voltage

42V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Series

AL8860

Length

3mm

Height

1.1mm

Standards/Approvals

No

Width

2.95 mm

Minimum Output Voltage

-0.3V

Automotive Standard

AEC-Q100

COO (Country of Origin):
CN
The DiodesZetex high efficiency 40V automotive grade buck LED driver is a hysteresis mode DC/DC step-down LED driver, designed for driving single or multiple series of the connected LEDs efficiently from a voltage source higher than the LED voltage. It provide an externally adjustable output current up to 1.5A for MSOP 8EP package.

Up to 1MHz switching frequency

LED short-circuit protection
