APEM 1-Axis Joystick Lever Hall Effect, IP67, 5 V dc, 10mA
- RS Stock No.:
- 727-5961
- Mfr. Part No.:
- BF240A01BK1200
- Brand:
- APEM
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$363.22
(exc. GST)
$399.54
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 48 unit(s) ready to ship from another location
- Plus 25 unit(s) shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | $363.22 |
| 5 - 9 | $356.84 |
| 10 - 24 | $350.21 |
| 25 - 49 | $343.40 |
| 50 + | $337.41 |
*price indicative
- RS Stock No.:
- 727-5961
- Mfr. Part No.:
- BF240A01BK1200
- Brand:
- APEM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Number of Axes | 1 | |
| Product Type | Joystick | |
| Series | BF | |
| Switch Technology | Hall Effect | |
| IP Rating | IP67 | |
| Handle Type | Lever | |
| Switch Contact Current | 10mA | |
| Joystick Travel | ±25° | |
| Terminal Type | Solder | |
| Mechanical Life | 5000000Cycles | |
| Contact DC Voltage | 5V dc | |
| Standards/Approvals | RoHS | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Number of Axes 1 | ||
Product Type Joystick | ||
Series BF | ||
Switch Technology Hall Effect | ||
IP Rating IP67 | ||
Handle Type Lever | ||
Switch Contact Current 10mA | ||
Joystick Travel ±25° | ||
Terminal Type Solder | ||
Mechanical Life 5000000Cycles | ||
Contact DC Voltage 5V dc | ||
Standards/Approvals RoHS | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- GB

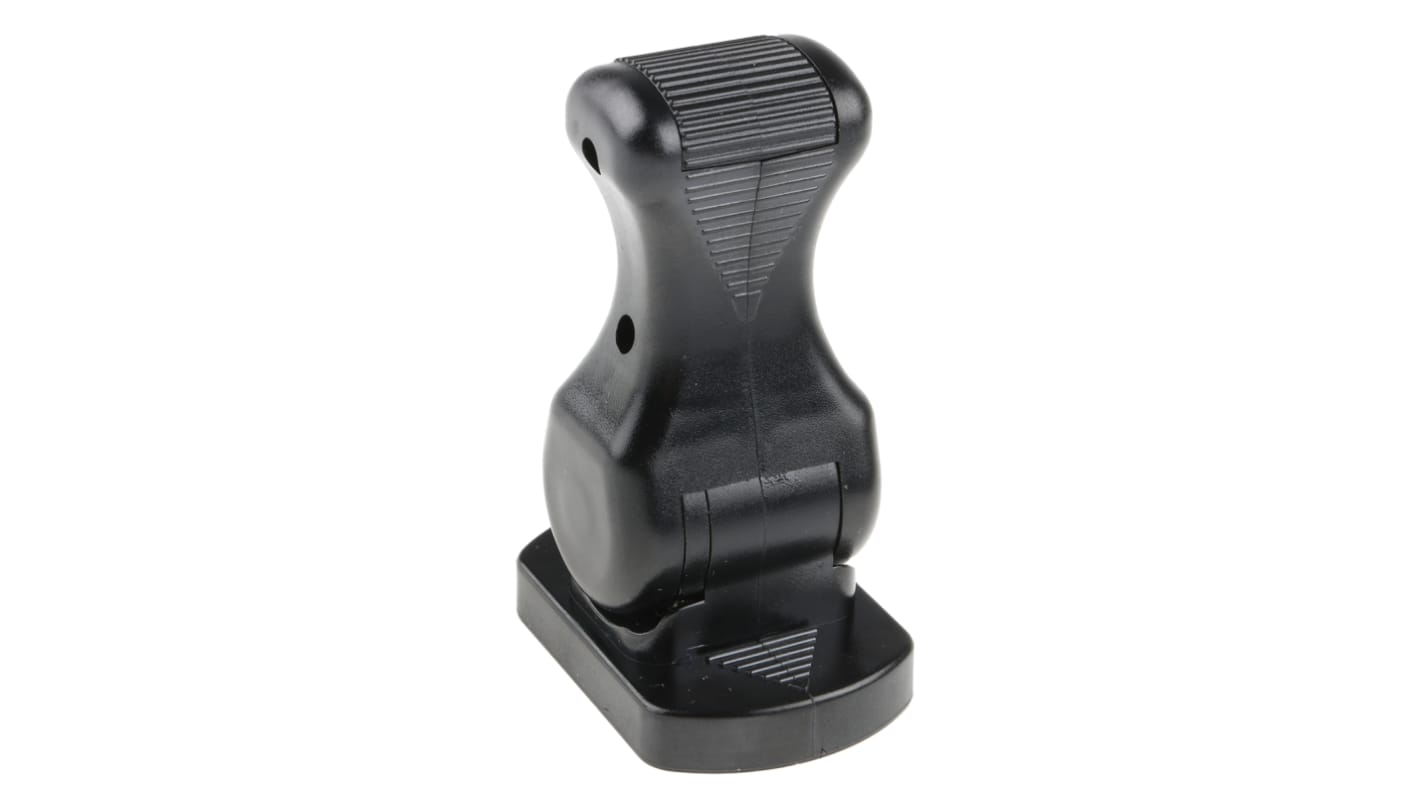

APEM Joystick Paddle Controller
The APEM 1 way paddle controller has an operating life of 5000000 cycles and contact electric current rating of 20mA and voltage rating of 5V. It combines the features of a contactless single axis joystick and a switch in one control. Long trouble-free life is assured with the latest Hall effect technology, providing a range of analogue, switched or custom PWM output options. The all-new design with its innovative mechanism and ergonomic styling is specifically designed for robustness, strength and performance.
Features and Benefits
Terminal type is through-hole
Hall effect joystick and switch function
Sculpted ergonomic design
Next-generation hall effect technology
Industry-standard connector
EMC and magnetically shielded - Analogue or PWM outputs
Effectively zero below panel depth
End stackable mounting
Operating temperature ranges between -25℃ and 70℃
Certifications
IP65 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP67 rated
