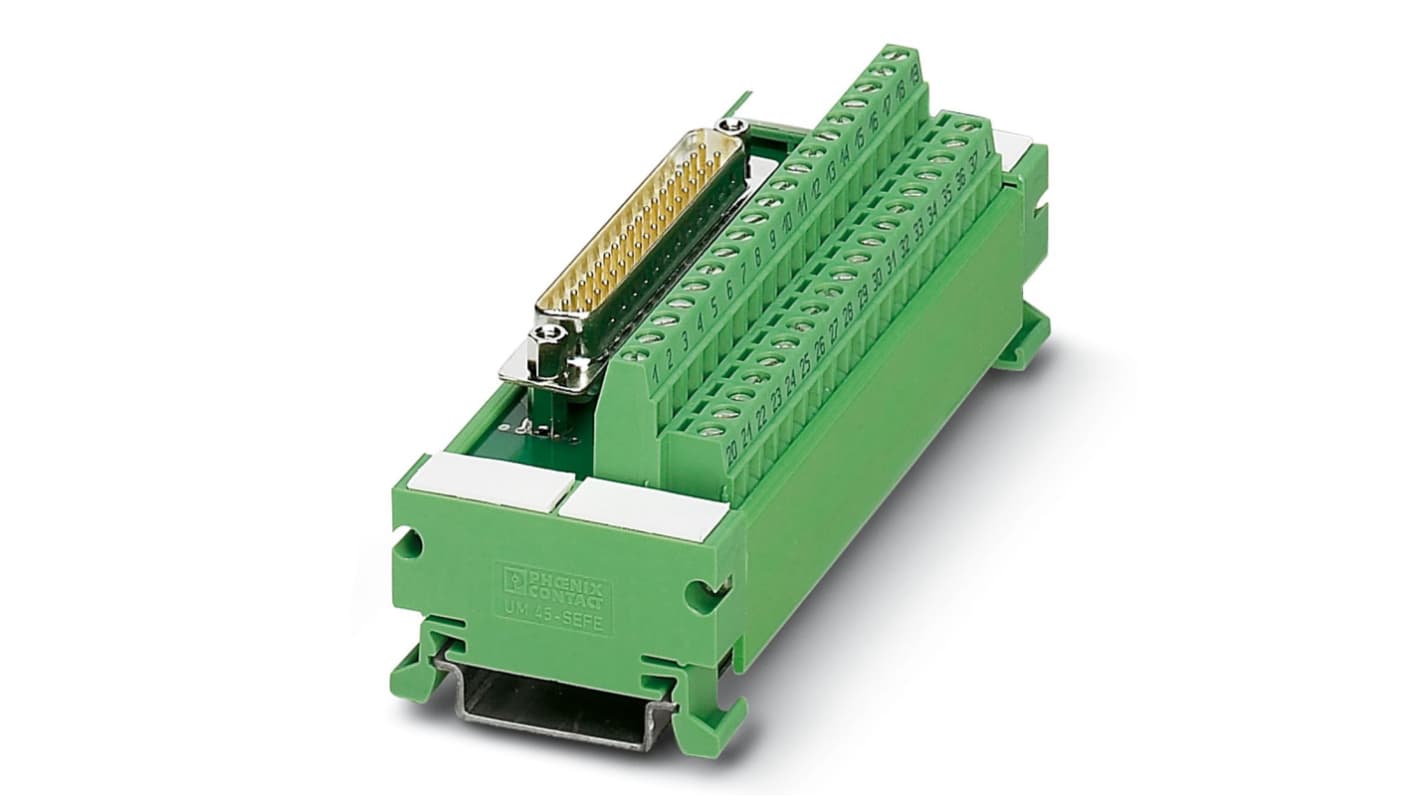

Phoenix Contact 25-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 2.5A

RS Stock No.:: 292-9600
Mfr. Part No.:: 2962793
Brand:: Phoenix Contact

Phoenix Contact 25-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 2.5A

5 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$116.60

(exc. GST)

$128.26

(inc. GST)

Units	Per unit
1 +	$116.60

RS Stock No.:: 292-9600
Mfr. Part No.:: 2962793
Brand:: Phoenix Contact

Technical data sheets

Varioface Module UM 45-D25SUB/S

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Varioface Compact-Line Modules for D-Sub connectors

The range of Varioface Compact-Line modules for D-Sub connectors from Phoenix Contact have the same properties as standard Varioface modules but are smaller in size.
Due to their low-profile mount of just 45 mm, the interface modules guarantee a high density in the cabinet and thus account for the trend towards miniaturisation. This significantly reduces the cabinet volume and, consequently, all related costs.
These modules are equipped with 9- to 50-pin male or female D-Sub connectors and screw-connection terminal blocks for conductor cross-sections up to 1.5 mm².

Features and Benefits

• Screw connection
• DIN Rail mount
• 800 V ac test proof voltage
• For assembly on NS 35/7.5

Specifications

Attribute	Value
Gender	Male
Wire Size	26 → 16 AWG
Number of Contacts	25
Connector Type	D-sub
Mounting Type	DIN Rail Mount
Test Proof Voltage	800V ac
Voltage Rating	25 V ac, 60 V dc
Current Rating	2.5A
Cable CSA	0.14 → 1.5mm²
Dimensions	90 x 42 x 45mm
Depth	45mm
Length	90mm
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+50°C
Width	42mm
