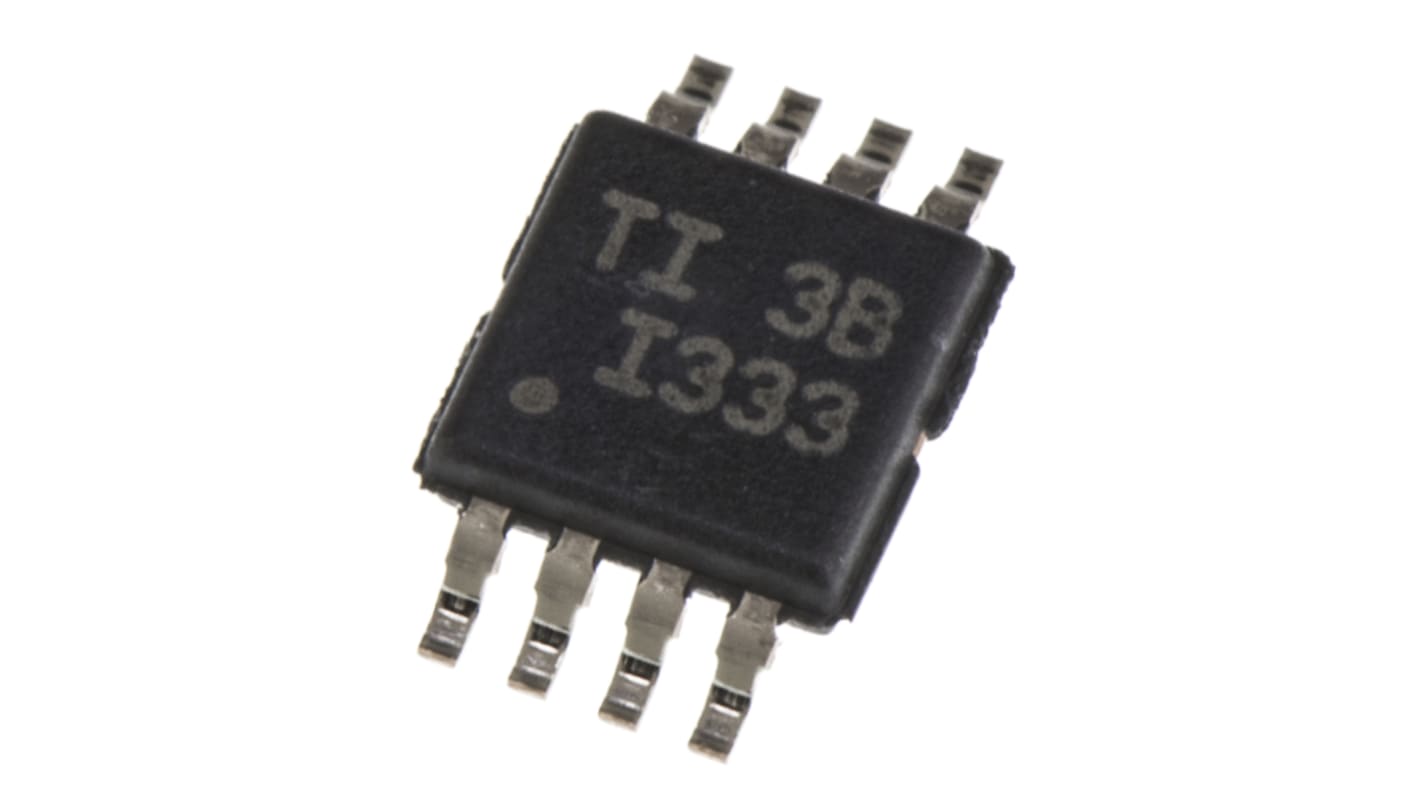

INA333AIDGKT Texas Instruments, Instrumentation Amplifier, 0.025mV Offset 150kHz, R-RO, 1.8 → 5.5 V, 8-Pin MSOP
- RS Stock No.:
- 704-4032
- Mfr. Part No.:
- INA333AIDGKT
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 unit)**
Was $8.89
You pay
$8.80
(exc. GST)
$9.68
(inc. GST)
Stock check temporarily unavailable - call for stock availability
FREE delivery for orders over $60.00 ex GST
Units | Per unit |
|---|---|
| 1 - 62 | $8.80 |
| 63 - 124 | $8.58 |
| 125 + | $8.47 |
**price indicative
- RS Stock No.:
- 704-4032
- Mfr. Part No.:
- INA333AIDGKT
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Power Supply Type | Dual, Single | |
| Package Type | MSOP | |
| Mounting Type | Surface Mount | |
| Typical Single Supply Voltage | 1.8 → 5.5 V | |
| Pin Count | 8 | |
| Typical Dual Supply Voltage | ±0.9 → ±2.75V | |
| Rail to Rail | Rail to Rail Output | |
| Maximum Input Offset Voltage | 0.025mV | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +150 °C | |
| Maximum Input Resistance | 100GΩ | |
| Minimum CMRR | 80dB | |
| Typical Gain Bandwidth Product | 150kHz | |
| Maximum Supply Current | 0.075 mA | |
| Height | 0.95mm | |
| Width | 3.1mm | |
| Dimensions | 3.1 x 3.1 x 0.95mm | |
| Length | 3.1mm | |
Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Power Supply Type Dual, Single | ||
Package Type MSOP | ||
Mounting Type Surface Mount | ||
Typical Single Supply Voltage 1.8 → 5.5 V | ||
Pin Count 8 | ||
Typical Dual Supply Voltage ±0.9 → ±2.75V | ||
Rail to Rail Rail to Rail Output | ||
Maximum Input Offset Voltage 0.025mV | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +150 °C | ||
Maximum Input Resistance 100GΩ | ||
Minimum CMRR 80dB | ||
Typical Gain Bandwidth Product 150kHz | ||
Maximum Supply Current 0.075 mA | ||
Height 0.95mm | ||
Width 3.1mm | ||
Dimensions 3.1 x 3.1 x 0.95mm | ||
Length 3.1mm | ||
