PowerPath Controllers & Ideal Diodes, Linear Technology

Integrated Ideal Diode controllers offer significant advantages over the use of discrete diodes in applications where forward voltage losses must be minimized such as diode-ORing of low voltage DC supplies. Some of these devices from Linear Technology include on-chip MOSFETs which take the place of conventional diodes with significantly reduced losses.

Lower losses than conventional discrete diodes
Controlled switching and switch-over between multiple diodes
MOSFET On-status outputs
Single and Dual versions available

Features for the LTC4415 include:

Adjustable current limiting – up to 4A per diode
Low reverse leakage current - 1μA Max
Precision Enable thresholds to set switch-over
Load Current Monitoring

Power Switches, Linear Technology

Select all	Attribute	Value
	Brand	Analog Devices
	Number of Channels per Chip	2
	Internal MOSFETs	No
	Typical Switching Time	0.4µs
	Mounting Type	Surface Mount
	Package Type	PDFN
	Pin Count	16
	Quiescent Current	1.5mA
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	-40 °C

	Select all
	Brand Analog Devices
	Number of Channels per Chip 2
	Internal MOSFETs No
	Typical Switching Time 0.4µs
	Mounting Type Surface Mount
	Package Type PDFN
	Pin Count 16
	Quiescent Current 1.5mA
	Maximum Operating Temperature +85 °C
	Minimum Operating Temperature -40 °C

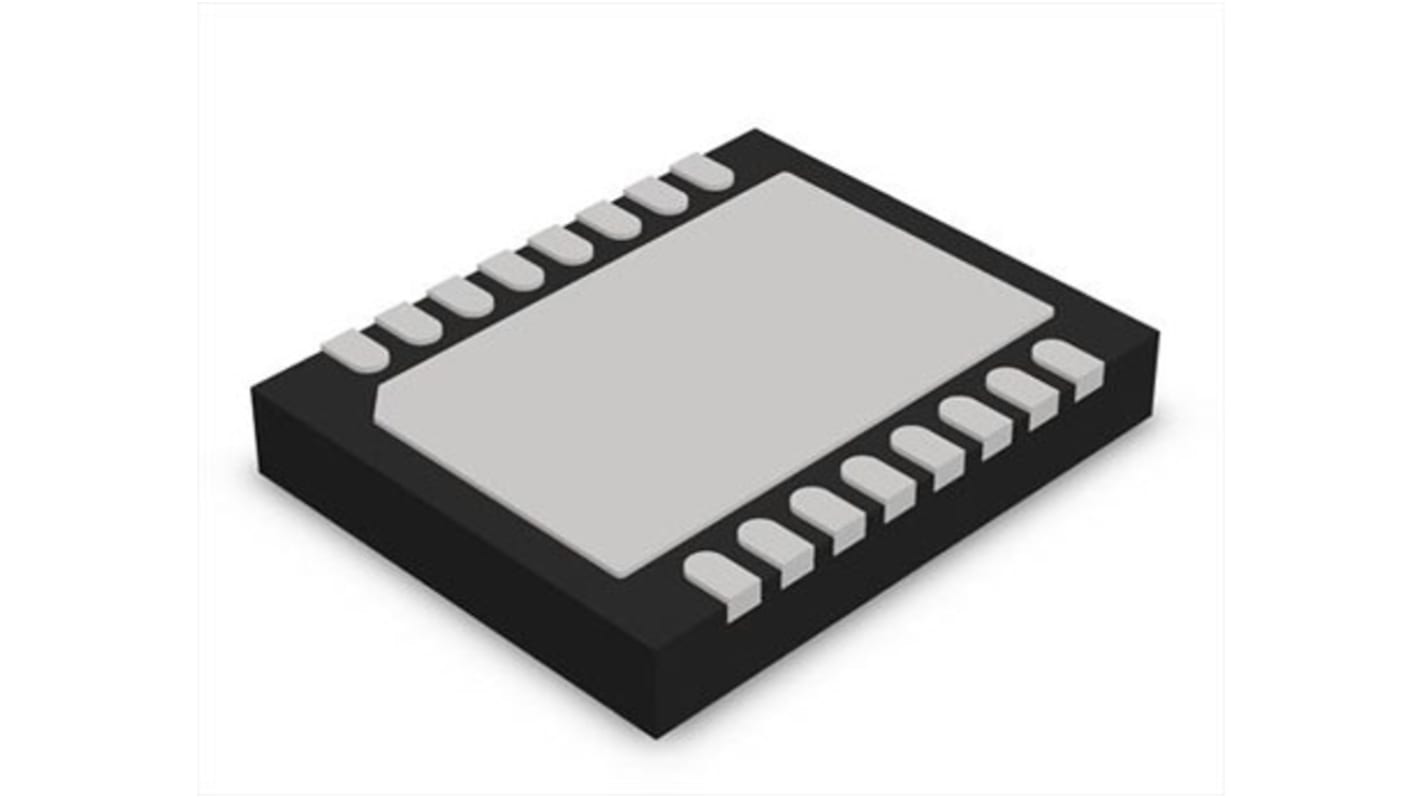

Analog Devices LTC4353IDE#PBF Ideal Diode Controller, 2 Channels 16 Pin, PDFN
