RS PRO Matt Die Cast Zinc Flap with a Fixed Pin, Screw Fixing, 50 mm x 76 mm x 11.5 mm
- RS Stock No.:
- 188-856
- Brand:
- RS PRO
Subtotal (1 pack of 2 units)*
$92.92
(exc. GST)
$102.21
(inc. GST)
Add 1 pack to get free delivery
In Stock
- 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | $92.92 | $46.46 |
*price indicative
- RS Stock No.:
- 188-856
- Brand:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hinge | |
| Material | Die Cast Zinc | |
| Hinge Type | Flap | |
| Length | 50mm | |
| Closing Type | Free Swinging | |
| Width | 76 mm | |
| Thickness | 11.5mm | |
| Fixing Method | Screw | |
| Pin Style | Fixed | |
| Fixing Hole Size | 6.3 mm | |
| Finish | Matt | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hinge | ||
Material Die Cast Zinc | ||
Hinge Type Flap | ||
Length 50mm | ||
Closing Type Free Swinging | ||
Width 76 mm | ||
Thickness 11.5mm | ||
Fixing Method Screw | ||
Pin Style Fixed | ||
Fixing Hole Size 6.3 mm | ||
Finish Matt | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN

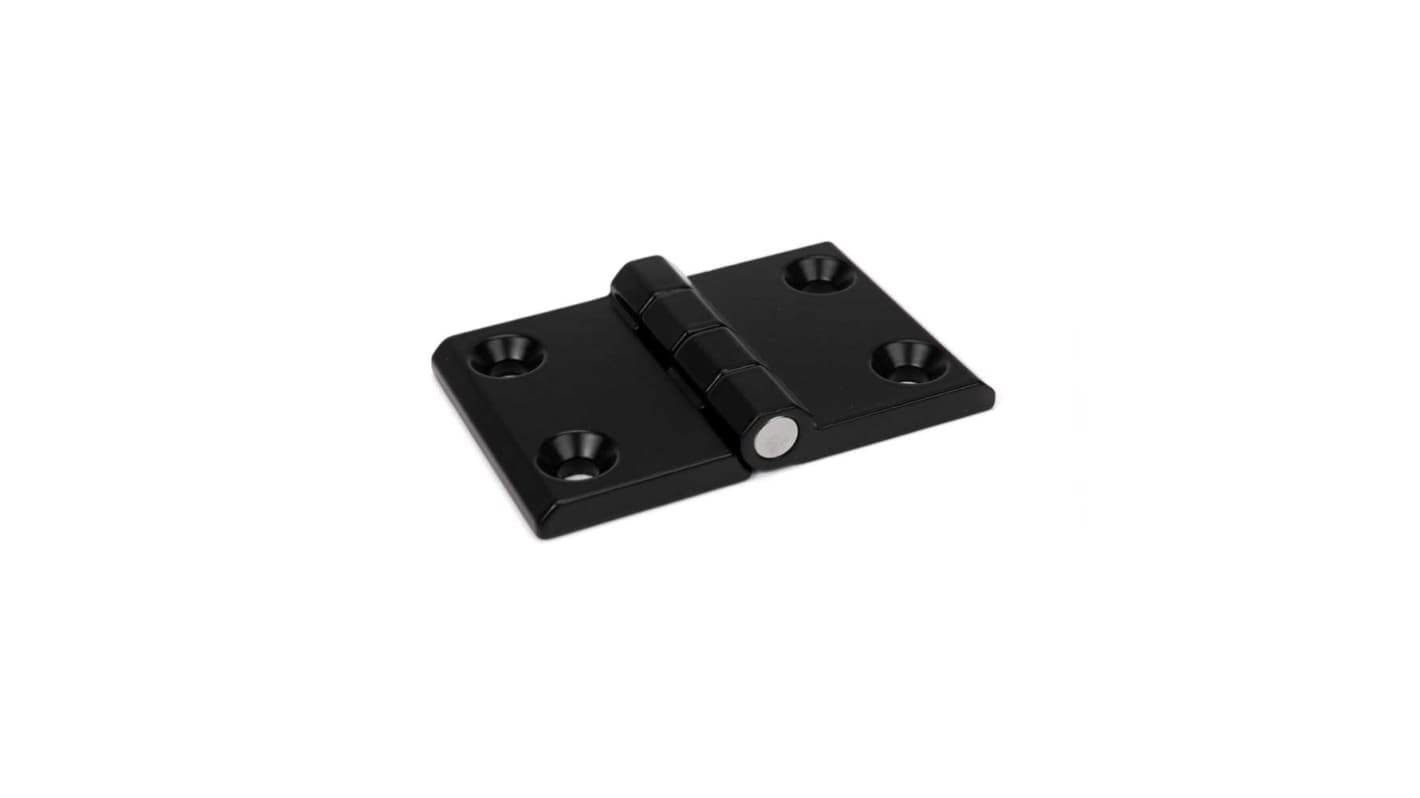

RS PRO Die Cast Zinc Back Flap Hinge, 50 x 76mm
A tough back flap hinge intended for internal fitting to cupboards and cabinets providing a clean external appearance.
Constructed from Die Cast Zinc with a Nickel Plated Steel pin and finished in a powder black coating the hinge is hard wearing, corrosion resistant and protected against knocks and scratches.
Fit for inside and outside use the back flap hinge is suitable for a wide range of applications including industrial and commercial furniture, enclosures and electrical cabinets.
Features and Benefits
Back flap hinge
Internal fit
Die Cast Zinc
Matt black powder coating
Nickel Plated Steel pin
Countersunk holes
