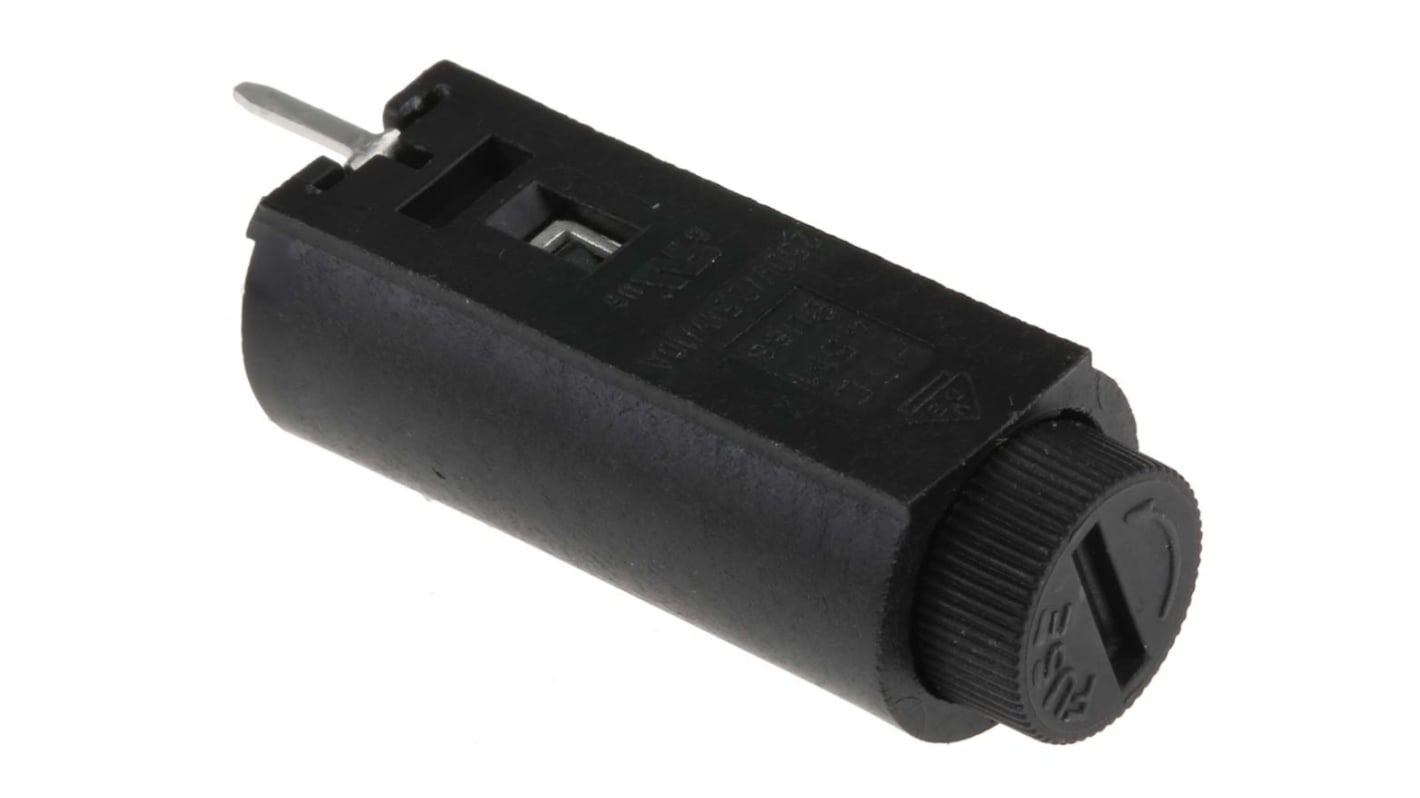

Eaton 10A PCB Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac

RS Stock No.:: 311-0015
Mfr. Part No.:: HTC-45M
Brand:: Eaton

Eaton 10A PCB Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac

Bulk discount available

Subtotal (1 pack of 5 units)**

$25.20

(exc. GST)

$27.70

(inc. GST)

1385 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit	Per Pack**
5 - 245	$5.04	$25.20
250 - 495	$4.998	$24.99
500 +	$4.90	$24.50

**price indicative

RS Stock No.:: 311-0015
Mfr. Part No.:: HTC-45M
Brand:: Eaton

Eaton Bussmann Bayonet Cap, PCB Mount Fuse Holders - HTC Series

The Eaton Bussmann HTC Series of PCB mount fuse holder offers current ratings and voltage ratings of 6.3 Amp and 250 Volts respectively. These vertical or horizontal surface mount fuse holders provide the installation hardware for a fuse and prevents accidental misuse in a circuit. It includes 5mm x 20mm cartridge type fuse carrier and knobs are spring loaded bayonet type with screwdriver slot. The body of this holder is made of high temperature thermoplastic material and tin plated brass is used for contact.

Features and Benefits

• Horizontal or vertical mount formats
• Compatible with 5 mm x 20 mm fuses
• High rated power acceptance
• Integrated protection against electrical shock
• Quick connect terminal type
• Body material is high temperature thermoplastic
• Fuse carriers are easily replaceable
• Shock safety
• Voltage rating is 250V

Applications

• Automotive
• Electronics equipment
• Industrial equipment
• Sockets and Switches

Approvals

UL recognised component; CSA certified; SEMKO

Eaton PCB Mount Fuse Holder, 250V AC Voltage Rating, 10A Current Rating HTC-45M

Use this fuse holder from Eaton to safely mount a fuse onto a PCB. The holder ensures the fuse remains securely in place and also offers insulation from external contact, for greater safety. This accessory helps to carry incoming electrical power to a fuse as efficiently as possible and ensures a clear current path, so there's minimal risk of dangerous voltages creeping to other components in your electrical system. A holder like this is suitable to use in industrial control cabinets. Together with a fuse, it helps to protect everything from lighting and heating systems to automotive equipment and electrical sockets.

• Wide operating temperature range of -30°C to +85°C, so suitable for demanding environments
• High rated power acceptance of 10A, so compatible with large capacity systems
• Tin-plated copper conductors for optimal electrical flow, so improves a circuit's efficiency
• Body made from hard-wearing thermoplastic for longevity in harsh settings

Why doesn't this fuse holder have a short-circuit current rating?

This is because the fuse holder doesn't interrupt current flow. That's the job of the fuse itself, which will always have a short-circuit current rating.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Note

Eaton formerly known as Bussmann

PCB Mounting

Voltage Rating 250V.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Fuse Holder Type	PCB Mount
	Fuse Size	5 x 20mm
	Current Rating	10A
	Voltage Rating	250V ac
	Number of Poles	1P
	Includes Indicator	No
	Cap Style	Slotted
	Contact Material	Tin Plated Copper
	Compatible Fuse Diameter	13mm
	Compatible Fuse Length	33.1mm

	Select all
	Brand Eaton
	Fuse Holder Type PCB Mount
	Fuse Size 5 x 20mm
	Current Rating 10A
	Voltage Rating 250V ac
	Number of Poles 1P
	Includes Indicator No
	Cap Style Slotted
	Contact Material Tin Plated Copper
	Compatible Fuse Diameter 13mm
	Compatible Fuse Length 33.1mm
