Eaton 10A PCB Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac
- RS Stock No.:
- 169-9384
- Mfr. Part No.:
- HTC-45M
- Brand:
- Eaton
On back order for despatch 31/08/2024, delivery within 10 working days from despatch date.
Price (ex. GST) 1 Bag of 1000
$9,506.00
(exc. GST)
$10,456.60
(inc. GST)
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 1 | $9,506.00 | $9.506 |
| 2 - 3 | $9,359.61 | $9.36 |
| 4 + | $9,157.13 | $9.157 |
*price indicative
- RS Stock No.:
- 169-9384
- Mfr. Part No.:
- HTC-45M
- Brand:
- Eaton
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
'BUSSMANN' Bayonet Cap, HTC Series
The Eaton Bussmann HTC Series of PCB mount fuse holder offers current ratings and voltage ratings of 6.3 Amp and 250 Volts respectively. These vertical or horizontal surface mount fuse holders provide the installation hardware for a fuse and prevents accidental misuse in a circuit. It includes 5mm x 20mm cartridge type fuse carrier and knobs are spring loaded bayonet type with screwdriver slot. The body of this holder is made of high temperature thermoplastic material and tin plated brass is used for contact.
Features and Benefits
For 5 x 20 mm fuses
Horizontal or vertical mount formats
Horizontal or vertical mount formats
Applications
• Automotive
• Electronics equipment
• Industrial equipment
• Sockets and Switches
• Electronics equipment
• Industrial equipment
• Sockets and Switches
Approvals
UL recognised component; CSA certified; SEMKO

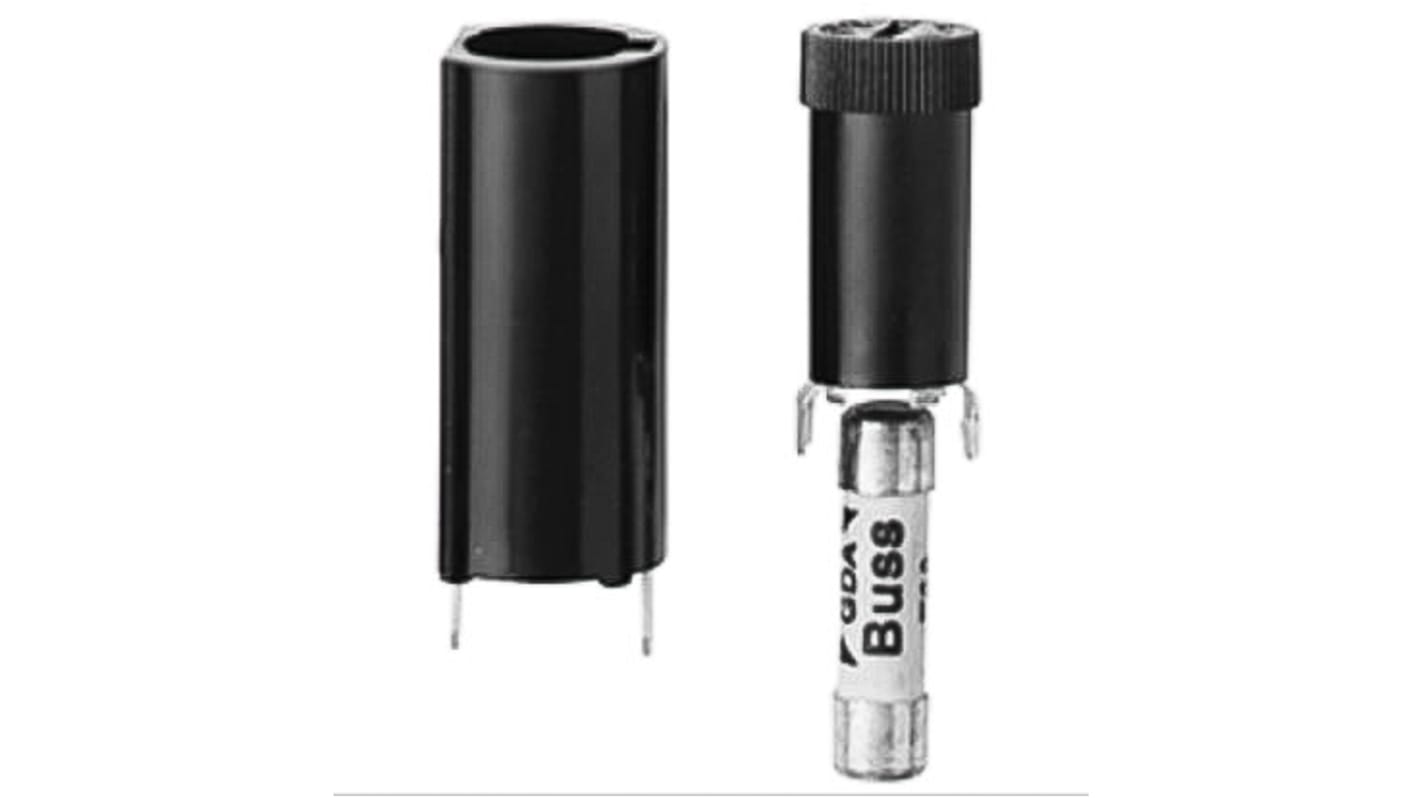

Eaton PCB Mount Fuse Holder, 250V AC Voltage Rating, 10A Current Rating HTC-45M
Use this fuse holder from Eaton to safely mount a fuse onto a PCB. The holder ensures the fuse remains securely in place and also offers insulation from external contact, for greater safety. This accessory helps to carry incoming electrical power to a fuse as efficiently as possible and ensures a clear current path, so there's minimal risk of dangerous voltages creeping to other components in your electrical system. A holder like this is suitable to use in industrial control cabinets. Together with a fuse, it helps to protect everything from lighting and heating systems to automotive equipment and electrical sockets.
• Wide operating temperature range of -30°C to +85°C, so suitable for demanding environments
• High rated power acceptance of 10A, so compatible with large capacity systems
• Tin-plated copper conductors for optimal electrical flow, so improves a circuit's efficiency
• Body made from hard-wearing thermoplastic for longevity in harsh settings
• High rated power acceptance of 10A, so compatible with large capacity systems
• Tin-plated copper conductors for optimal electrical flow, so improves a circuit's efficiency
• Body made from hard-wearing thermoplastic for longevity in harsh settings
Why doesn't this fuse holder have a short-circuit current rating?
This is because the fuse holder doesn't interrupt current flow. That's the job of the fuse itself, which will always have a short-circuit current rating.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Note
Eaton formerly known as Bussmann
PCB Mounting
Voltage Rating 250V.
Specifications
Attribute | Value |
|---|---|
| Fuse Holder Type | PCB Mount |
| Fuse Size | 5 x 20mm |
| Current Rating | 10A |
| Voltage Rating | 250V ac |
| Number of Poles | 1P |
| Includes Indicator | No |
| Contact Material | Tin Plated Copper |
| Series | Bussmann |
| Cap Style | Slotted |
