Schurter 16A PCB Mount Fuse Holder for 5 x 20 mm, 6.3 x 32 mm Fuse, 600V ac
- RS Stock No.:
- 167-6951
- Mfr. Part No.:
- 0751.0056
- Brand:
- Schurter
5 In AU stock for next working day delivery
99 In Global stock for delivery within 10 working day(s)
Price (ex. GST) 1 Bag of 20
$8.23
(exc. GST)
$9.05
(inc. GST)
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 12 | $8.23 | $0.412 |
13 - 24 | $8.12 | $0.406 |
25 + | $7.95 | $0.398 |
*price indicative
- RS Stock No.:
- 167-6951
- Mfr. Part No.:
- 0751.0056
- Brand:
- Schurter
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details

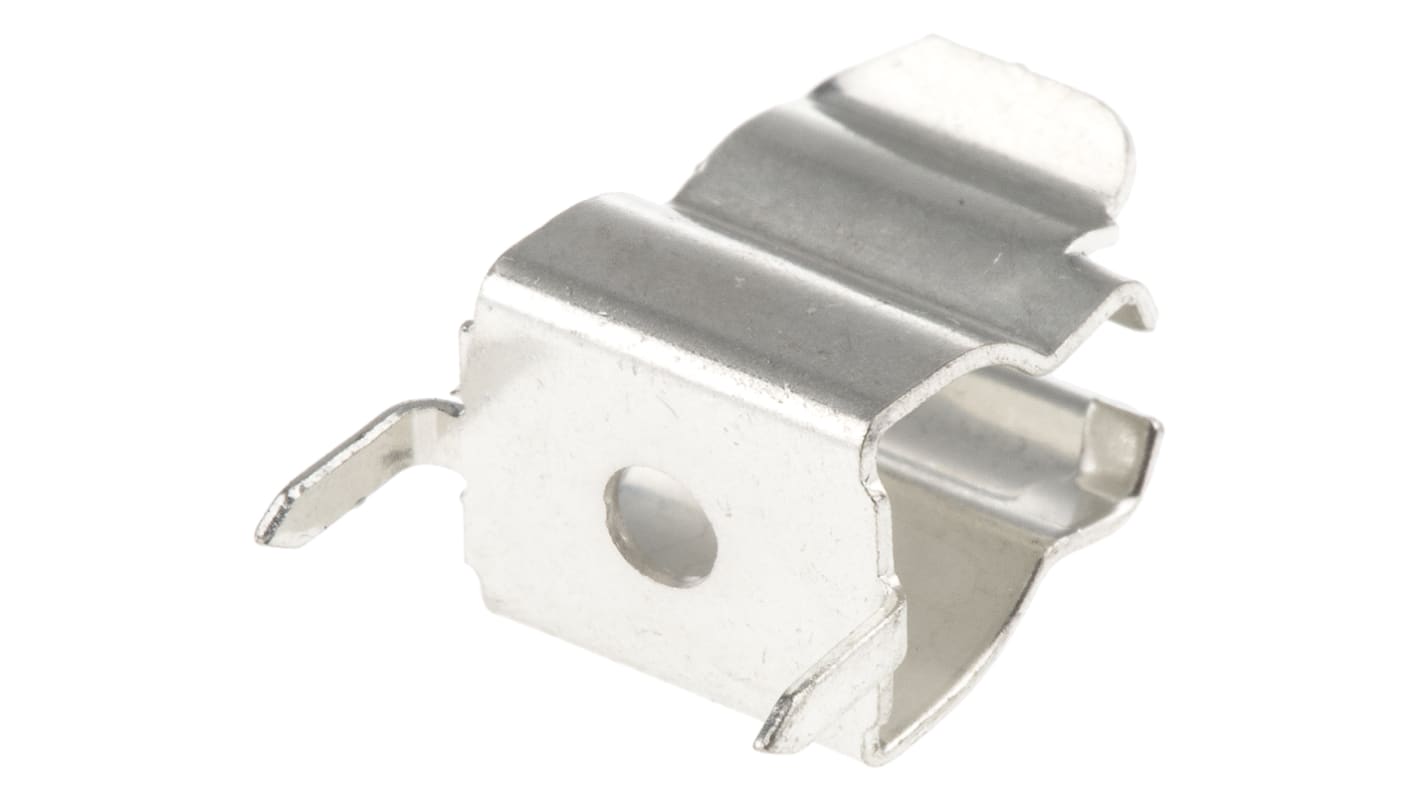

OG type jaw fuse holder
For 5 x 20 and 6.3 x 32 mm fuses.
Suitable for mounting on PCBs.
Suitable for mounting on PCBs.
Standards
CEI 257, CSA, UL
Schurter Fuse Holder
The Schurter OG series horizontal jaw surface mount fuse holder has an electrical rating of 600VAC and 10A supply voltage. It provides the installation hardware for a fuse and preventing accidental misuses in the circuit. It's available in 5x20mm or 6.3x32mm cartridge type. The fuse carrier and knob are spring-loaded bayonet type with screwdriver slot.
Features and Benefits
• Fuse carriers are easily replaceable
• Operating temperature ranges between -40°C and 85°C
• Shock safety
• Thermoset is used as a body material
• Operating temperature ranges between -40°C and 85°C
• Shock safety
• Thermoset is used as a body material
Applications
• Household appliance
• Industrial equipment
• Industrial equipment
Certifications
• CEI257
• CSA
• UL listed
• CSA
• UL listed
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
PCB Wire Ended
All fuses have Thermoplaste Polyamide bodies
Specifications
Attribute | Value |
---|---|
Fuse Holder Type | PCB Mount |
Fuse Size | 5 x 20 mm, 6.3 x 32 mm |
Current Rating | 16A |
Voltage Rating | 600V ac |
Includes Indicator | No |
Terminal Type | Solder |
Contact Material | Tin Plated Bronze |
