ABB R600 Series Interface Relay, DIN Rail, 5V dc Coil, SPDT, 40mA

RS Stock No.:: 669-9996
Mfr. Part No.:: 1SNA645036R2500 RB121PG-5VDC
Brand:: ABB

ABB R600 Series Interface Relay, DIN Rail, 5V dc Coil, SPDT, 40mA

View this category

Bulk discount available

Subtotal (1 unit)*

$45.04

(exc. GST)

$49.54

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

Plus 13 unit(s) shipping from 27 April 2026
Plus 57 unit(s) shipping from 27 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 5	$45.04
6 - 11	$44.37
12 +	$43.87

*price indicative

RS Stock No.:: 669-9996
Mfr. Part No.:: 1SNA645036R2500 RB121PG-5VDC
Brand:: ABB

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Coil Voltage	5V dc
	Product Type	Interface Relay
	Contact Configuration	SPDT
	Mount Type	DIN Rail
	Series	R600
	Terminal Type	Screw
	Switching Current	6A
	Switching DC Voltage	5V dc
	Coil Current	40mA
	Minimum Operating Temperature	-20°C
	Switching AC Voltage	250V ac
	Maximum Operating Temperature	70°C
	Height	75mm
	Standards/Approvals	CE
	Width	6mm
	Length	70mm

	Select all
	Brand ABB
	Coil Voltage 5V dc
	Product Type Interface Relay
	Contact Configuration SPDT
	Mount Type DIN Rail
	Series R600
	Terminal Type Screw
	Switching Current 6A
	Switching DC Voltage 5V dc
	Coil Current 40mA
	Minimum Operating Temperature -20°C
	Switching AC Voltage 250V ac
	Maximum Operating Temperature 70°C
	Height 75mm
	Standards/Approvals CE
	Width 6mm
	Length 70mm

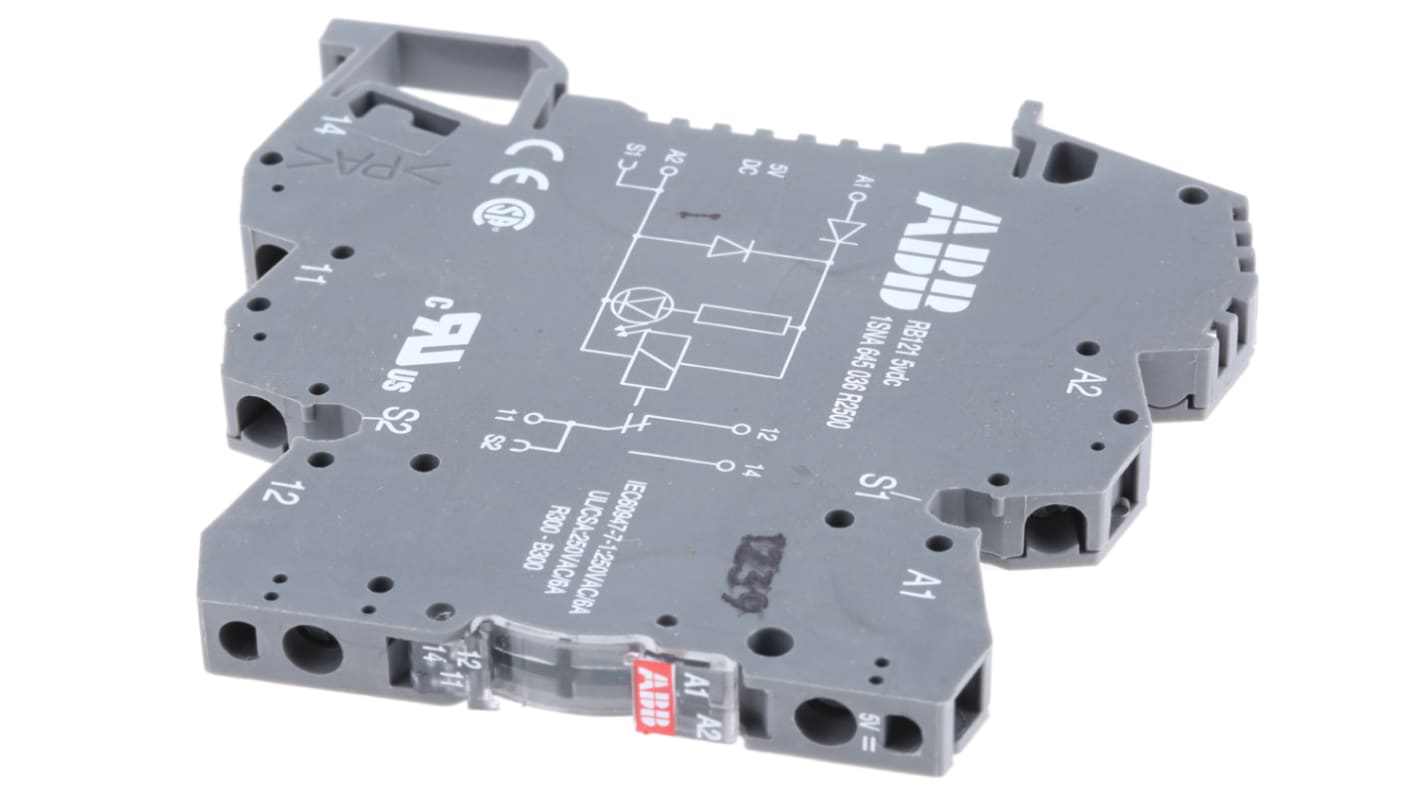

ABB Interface Relay, 40mA Current Rating, 5V DC Control Voltage - R600 Series - 1SNA645036R2500

Link up peripherals and control systems with different operating voltages using this interface relay from ABB. It features screw terminals for secure electrical connections that won't easily come loose, even in the event of heavy vibrations. The component has a built-in green LED indicator that clearly displays its operating status for easy troubleshooting. Its fast response time of 5ms and its release time of 8ms mean it provides rapid switching, helping to prevent downtime. A typical power consumption of 0.2W means it's an energy-efficient choice.

Features and Benefits

• Wide operating temperature range between -20°C and +70°C for use in demanding conditions

• Designed for DIN rail mounting for ease of installation

• IP20 rating means its finger-safe and protected against objects larger than 12mm

• Light weight of 20g minimises strain on your equipment

• Current rating of 40mA for use in low-power applications

Applications

• Medical equipment

• Telecommunication stations

• Electronics manufacture

What wire sizes will this interface relay accommodate?

IP20 rated

UL94 approval

CEI 947-7-1

CEI 947-1

CEI 1131-2

CEI 60664-1

This interface relay accepts wires ranging in size from 24 to 12AWG, making it a versatile choice.
