MPN

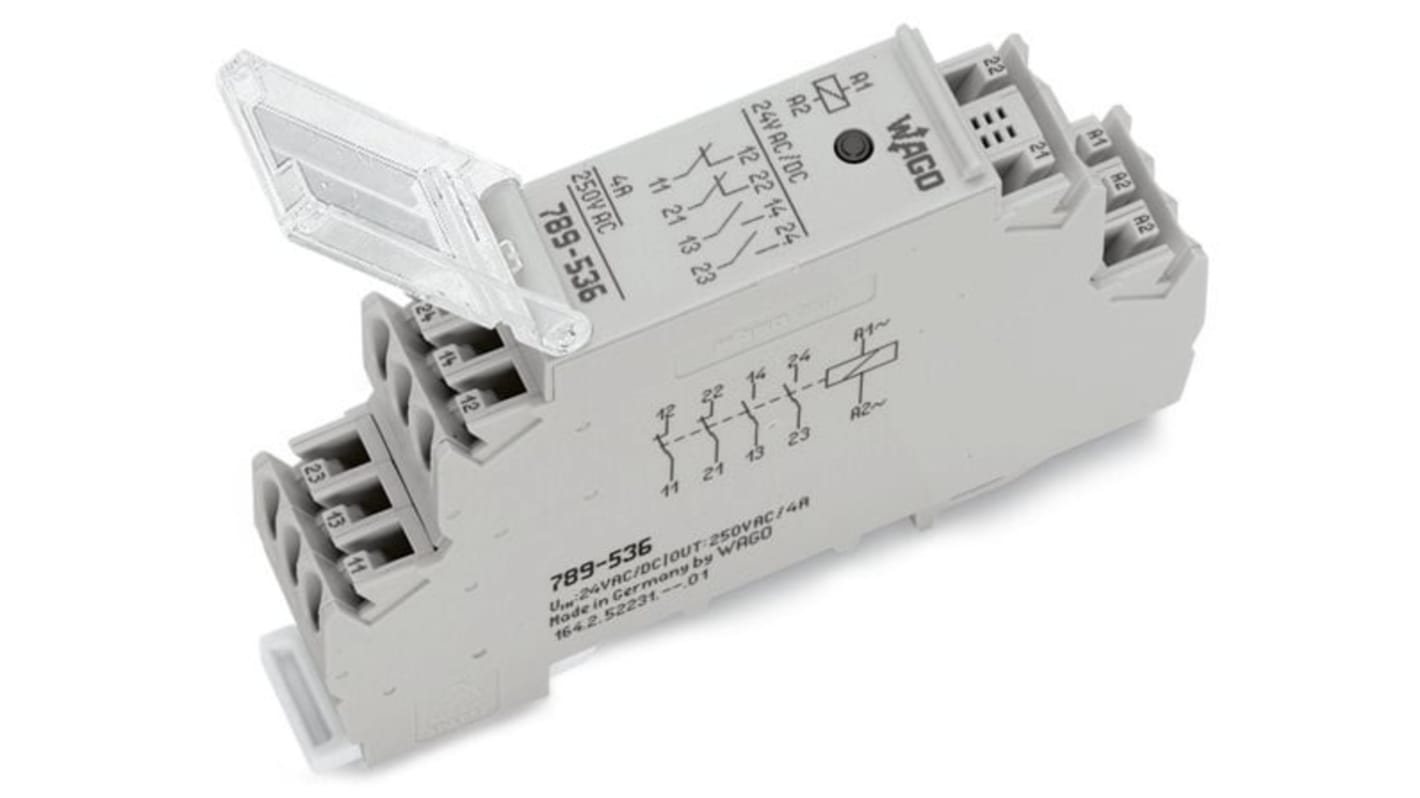

WAGO 789 Series Relay Module, DIN Rail, 24V ac/dc Coil, 12mA

RS Stock No.:: 279-4264
Mfr. Part No.:: 789-536
Brand:: WAGO

WAGO 789 Series Relay Module, DIN Rail, 24V ac/dc Coil, 12mA

Subtotal (1 unit)*

$240.60

(exc. GST)

$264.66

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

Plus 1 unit(s) shipping from 27 April 2026
Plus 2 unit(s) shipping from 21 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$240.60

*price indicative

RS Stock No.:: 279-4264
Mfr. Part No.:: 789-536
Brand:: WAGO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	WAGO
	Product Type	Relay Module
	Coil Voltage	24V ac/dc
	Mount Type	DIN Rail
	Series	789
	Terminal Type	Cage Clamp
	Minimum Operating Temperature	-25°C
	Switching DC Voltage	24V dc
	Switching AC Voltage	250V ac
	Coil Current	12mA
	Contact Material	Gold Plated Silver Nickel
	Maximum Operating Temperature	40°C
	Width	17.5mm
	Standards/Approvals	EN 61810-1, EN 60664-1
	Height	90mm
	Length	55mm

	Select all
	Brand WAGO
	Product Type Relay Module
	Coil Voltage 24V ac/dc
	Mount Type DIN Rail
	Series 789
	Terminal Type Cage Clamp
	Minimum Operating Temperature -25°C
	Switching DC Voltage 24V dc
	Switching AC Voltage 250V ac
	Coil Current 12mA
	Contact Material Gold Plated Silver Nickel
	Maximum Operating Temperature 40°C
	Width 17.5mm
	Standards/Approvals EN 61810-1, EN 60664-1
	Height 90mm
	Length 55mm

Datasheet - 789-536

COO (Country of Origin):: DE

The WAGO relay module features cage clamp connection technology and its contacts made from silver alloy.

Mounting type DIN-35 rail

RoHS compliant
