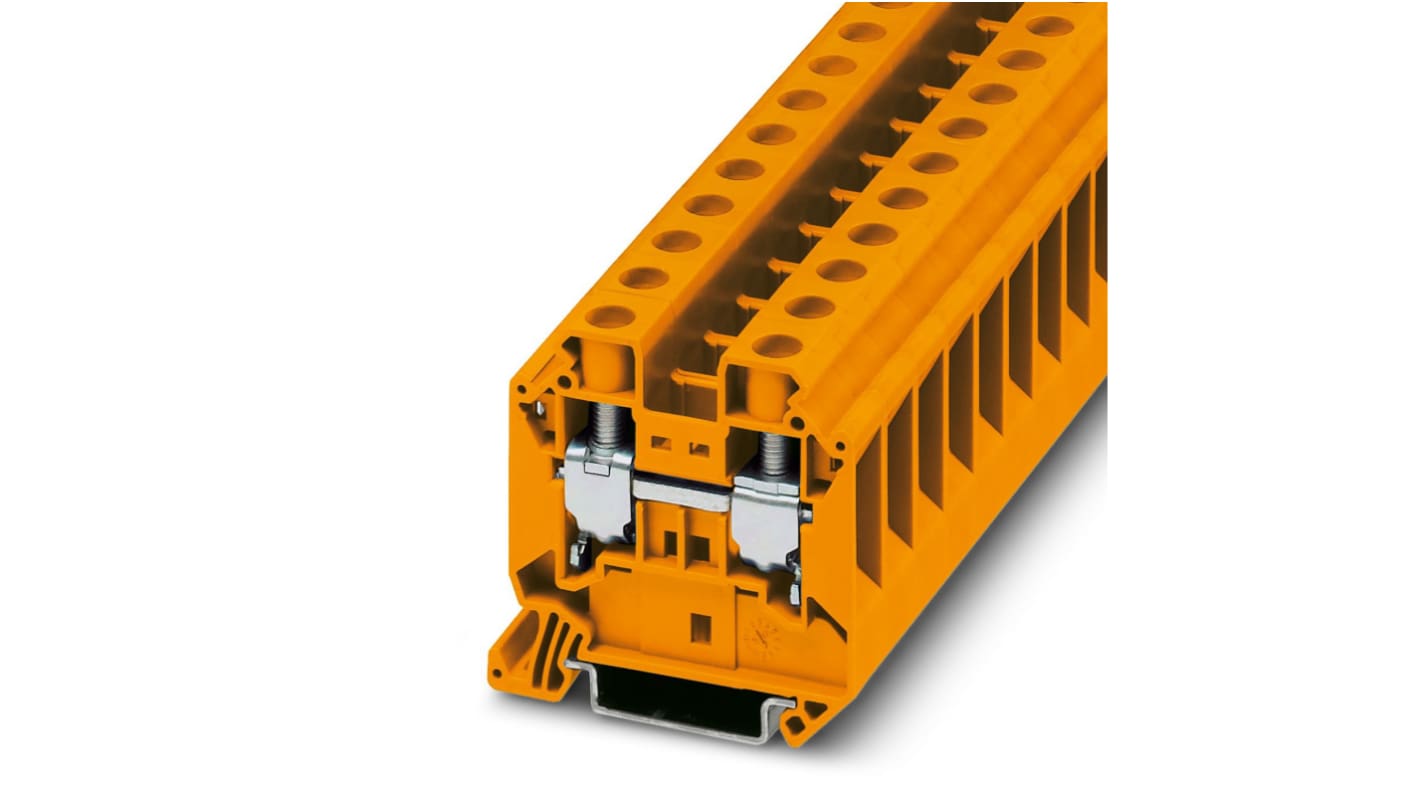

Phoenix Contact UT 16 OG Series Orange Feed Through Terminal Block, 1.5 → 25mm², Single-Level, Screw Termination
- RS Stock No.:
- 857-4837
- Mfr. Part No.:
- 3047468
- Brand:
- Phoenix Contact
Stocked by manufacturer – available for delivery 05/08/2024
Price (ex. GST) 1 Box of 50
$266.77
(exc. GST)
$293.45
(inc. GST)
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | $266.77 | $5.335 |
*price indicative
- RS Stock No.:
- 857-4837
- Mfr. Part No.:
- 3047468
- Brand:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TR
Product Details
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 76 A, connection method: Screw connection, number of connections: 2, cross section: 1.5 mm² - 25 mm², AWG: 16 - 4, width: 12.2 mm, color: orange, mounting type: NS 35/7,5, NS 35/15
The reducing bridges can be used to connect terminal blocks with different connection technologies, e.g., UT 35 screw terminal block with Push-in technology 2,5 Push-in terminal blocks, to form power blocks
Tested for railway applications
Specifications
Attribute | Value |
|---|---|
| Colour | Orange |
| Number of Levels | Single |
| Series | UT 16 OG |
| Termination Method | Screw |
| Cable CSA | 1.5 → 25mm² |
| Voltage Rating | 1 kV |
| Current Rating | 76A |
| Model Number | UT 16 OG |
