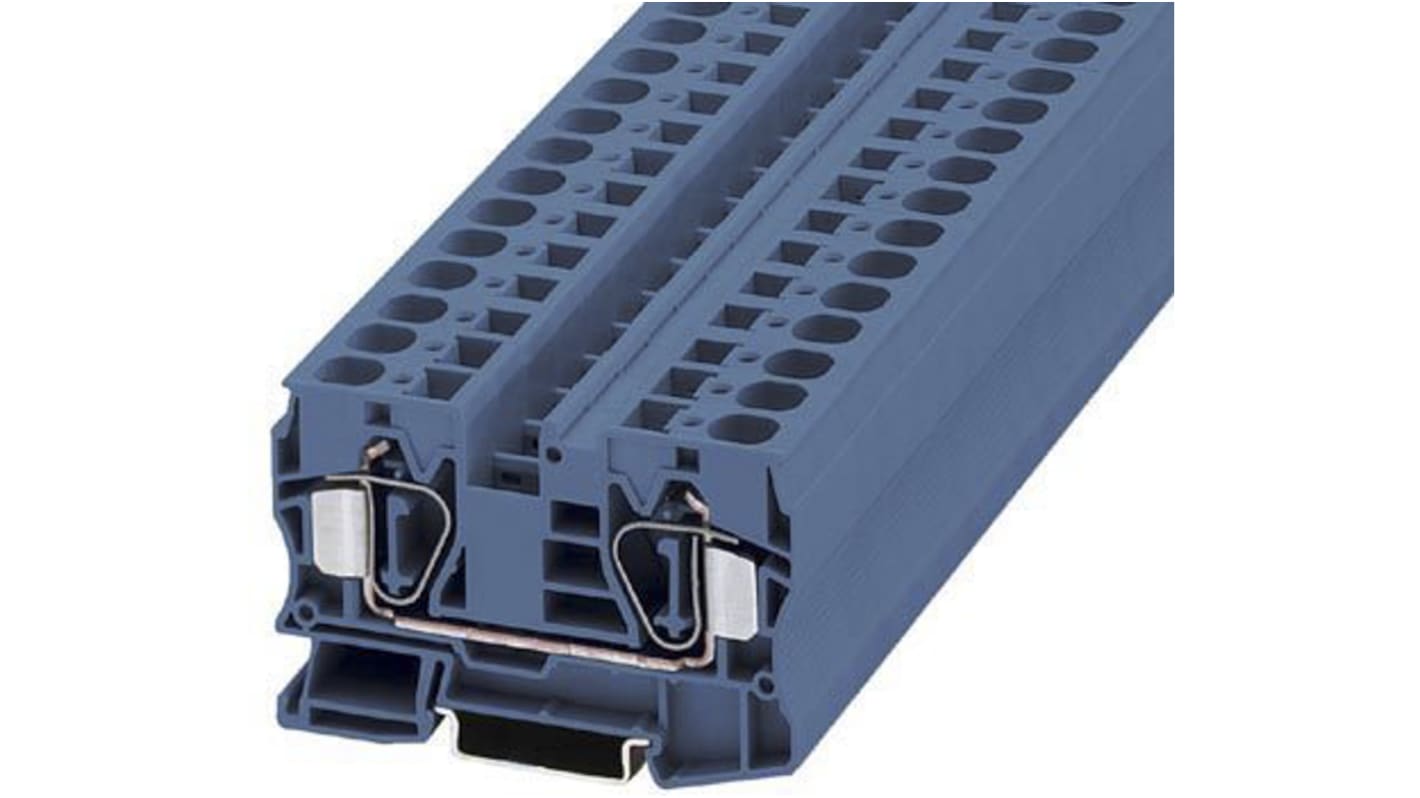

Phoenix Contact ST 16 BU Series Blue Feed Through Terminal Block, 1.5 → 25mm², Single-Level, Spring Clamp

RS Stock No.:: 648-3041
Mfr. Part No.:: 3036152
Brand:: Phoenix Contact

Phoenix Contact ST 16 BU Series Blue Feed Through Terminal Block, 1.5 → 25mm², Single-Level, Spring Clamp

23 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$10.09

(exc. GST)

$11.10

(inc. GST)

Units	Per unit
1 +	$10.09

RS Stock No.:: 648-3041
Mfr. Part No.:: 3036152
Brand:: Phoenix Contact

Technical data sheets

Feed-through terminal block ST 16 BU

Legislation and Compliance

COO (Country of Origin):: PL

Product Details

ST Terminals

The small spring mechanism in these terminals provides significant space saving, without sacrificing any of the usual features. Large terminal entry aperture allows bootlace ferruled cables to be fitted up to maximum cable capacity of the terminal.

Features and benefits:

Fused for added protection

The ST 4-FSI/C fuse terminal block accommodates flat-type fuses according to ISO/DIS 8820/DIN 72581-3 or the TCP .../DC32V thermal miniature circuit breaker as the fuse element

Versions with LED for easily indicating a fuse that has been blown

Fits on an NS 35/7.5 and NS35/15 DIN rail

Operating temperatures of -60°C to 85°C

Spring-loaded fuse terminals adopt the functional operation of the fuse holder and potential distribution

Typical Applications:

• Tested for railway applications

Complete Line:

The ST series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.

If you'd like to learn more about Complete Line, please click here.

Note

Cable cross-sectional area quoted refers to cable with rigid conductors

Certificate No.

KEMA 00ATEX2052 U

Group and Category

II 2 G D Ex e II

Specifications

Attribute	Value
Colour	Blue
Number of Levels	Single
American Wire Gauge	24 → 4AWG
Series	ST 16 BU
Termination Method	Spring Clamp
Cable CSA	1.5 → 25mm²
Voltage Rating	800 V
Current Rating	76A
Model Number	ST 16 BU
