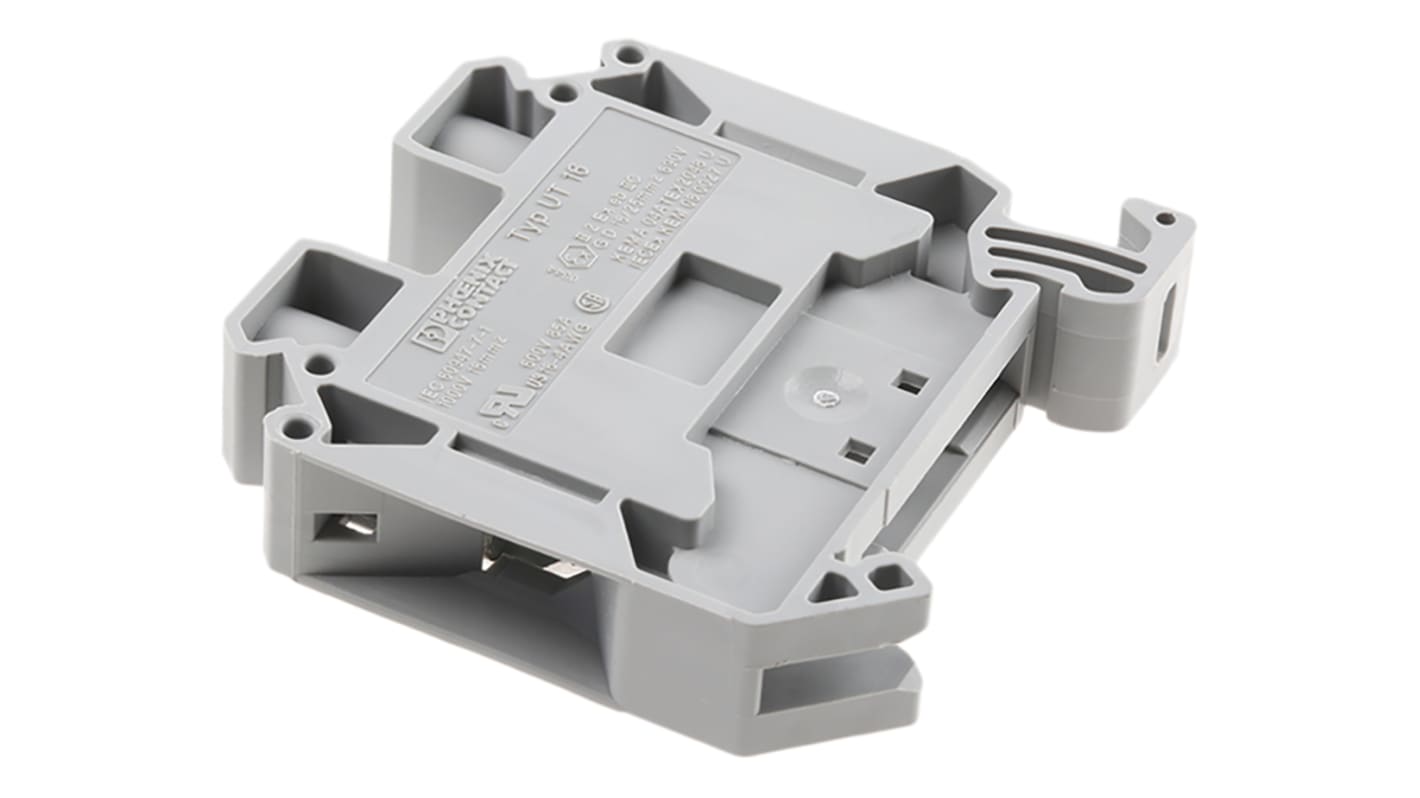

Phoenix Contact UT 16 Series Grey Feed Through Terminal Block, 1.5 → 25mm², Single-Level, Screw Termination, ATEX
- RS Stock No.:
- 624-6909
- Mfr. Part No.:
- 3044199
- Brand:
- Phoenix Contact
35 In AU stock for next working day delivery
2400 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Pack of 5)
$3.894
(exc. GST)
$4.283
(inc. GST)
Units | Per unit | Per Pack* |
---|---|---|
5 + | $3.894 | $19.47 |
*price indicative
- RS Stock No.:
- 624-6909
- Mfr. Part No.:
- 3044199
- Brand:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TR
Product Details
Phoenix Contact Feed-Through Terminal Block, 8kV Rated Surge Voltage, Screw Connections - UT 16 - Feed-through terminal block 3044199
Is overcurrent playing havoc with your industrial relays? Protect them with this feed-through terminal block from Phoenix Contact. Thanks to a rated surge voltage of 8kV, you can count on it to stop power spikes causing damage to your equipment.
The unit is made from hard-wearing PA plastic that resists corrosion and abrasion to deliver an extended service life in harsh settings. It accepts conductors between 16 and 4AWG for compatibility with commonly used cabling. A large surface area for marking makes identifying your terminals a cinch.
As this robust block resists shock, you can put it to work in harsh industrial applications such as machine building, plant engineering and railways. It's flame-retardant for safety, meaning it only burns briefly if there's a fire.
The unit is made from hard-wearing PA plastic that resists corrosion and abrasion to deliver an extended service life in harsh settings. It accepts conductors between 16 and 4AWG for compatibility with commonly used cabling. A large surface area for marking makes identifying your terminals a cinch.
As this robust block resists shock, you can put it to work in harsh industrial applications such as machine building, plant engineering and railways. It's flame-retardant for safety, meaning it only burns briefly if there's a fire.
Features & Benefits
• Screw terminals hold wires firmly in vibrating conditions to minimise maintenance
• Insulated for safety, so protects against electric shock
• Function shafts allow for easy potential power distribution
• Space-saving design thanks to its compact dimensions of 55.5 (L) x 12.2 (W) x 54.4mm (D) without an end cover
• Insulated for safety, so protects against electric shock
• Function shafts allow for easy potential power distribution
• Space-saving design thanks to its compact dimensions of 55.5 (L) x 12.2 (W) x 54.4mm (D) without an end cover
Phoenix Contact CLIPLINE UT Range
Specifications
Attribute | Value |
---|---|
Colour | Grey |
Number of Levels | Single |
American Wire Gauge | 16 → 4AWG |
Series | UT 16 |
Termination Method | Screw |
Cable CSA | 1.5 → 25mm² |
Current Rating | 76A |
Voltage Rating | 1 kV |
Minimum Operating Temperature | -60°C |
Maximum Operating Temperature | +110°C |
Hazardous Area Certification | ATEX |
Model Number | UT 16 |
