XP Power ITW DC-DC Converter, 24V dc/ 42mA Output, 36 → 75 V dc Input, 1W, Through Hole, +105°C Max Temp -40°C

RS Stock No.:: 167-2130
Mfr. Part No.:: ITW4824SA
Brand:: XP Power

XP Power ITW DC-DC Converter, 24V dc/ 42mA Output, 36 → 75 V dc Input, 1W, Through Hole, +105°C Max Temp -40°C

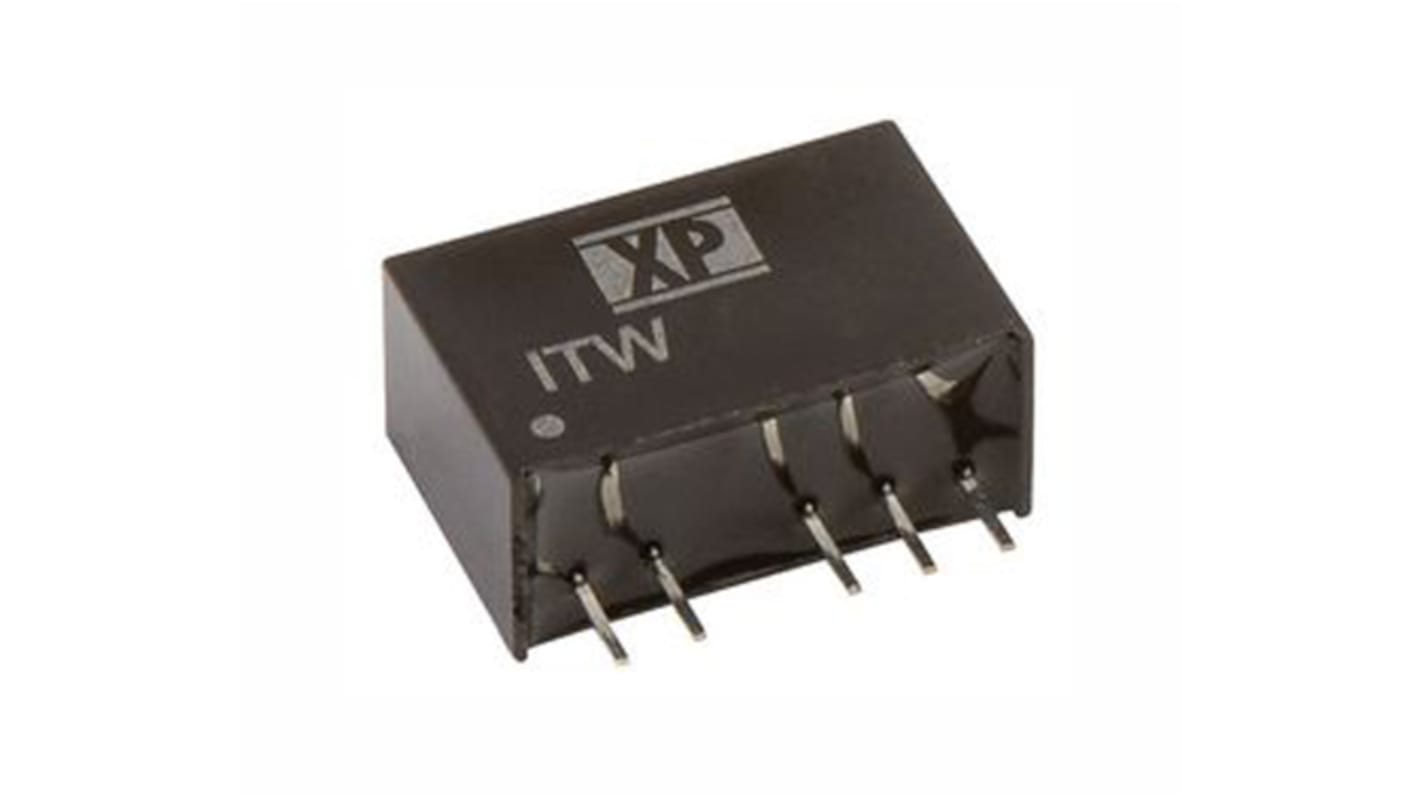

This image is representative of the product range

Price 1 Tube of 20**

$300.35

(exc. GST)

$330.39

(inc. GST)

On back order for despatch 21/04/2025, delivery within 10 working days from despatch date.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80.00 ex GST

Tube(s)	Per Tube	Per unit**
1 +	$300.35	$15.018

**price indicative

RS Stock No.:: 167-2130
Mfr. Part No.:: ITW4824SA
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	24V dc
Input Voltage Range	36 → 75 V dc
Power Rating	1W
Input Voltage Nominal	48 V dc
Output Current	42mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	SIP 6
Isolation Voltage	1.5kV dc
Depth	11mm
Width	7.62mm
Length	17mm
Series	ITW
Load Regulation	±1%
Minimum Temperature	-40°C
Standards Met	EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F
Maximum Temperature	+105°C

XP Power ITW DC-DC Converter, 24V dc/ 42mA Output, 36 → 75 V dc Input, 1W, Through Hole, +105°C Max Temp -40°C

FREE delivery for orders over $80.00 ex GST

XP Power - ITW Series Isolated DC-DC Converter
