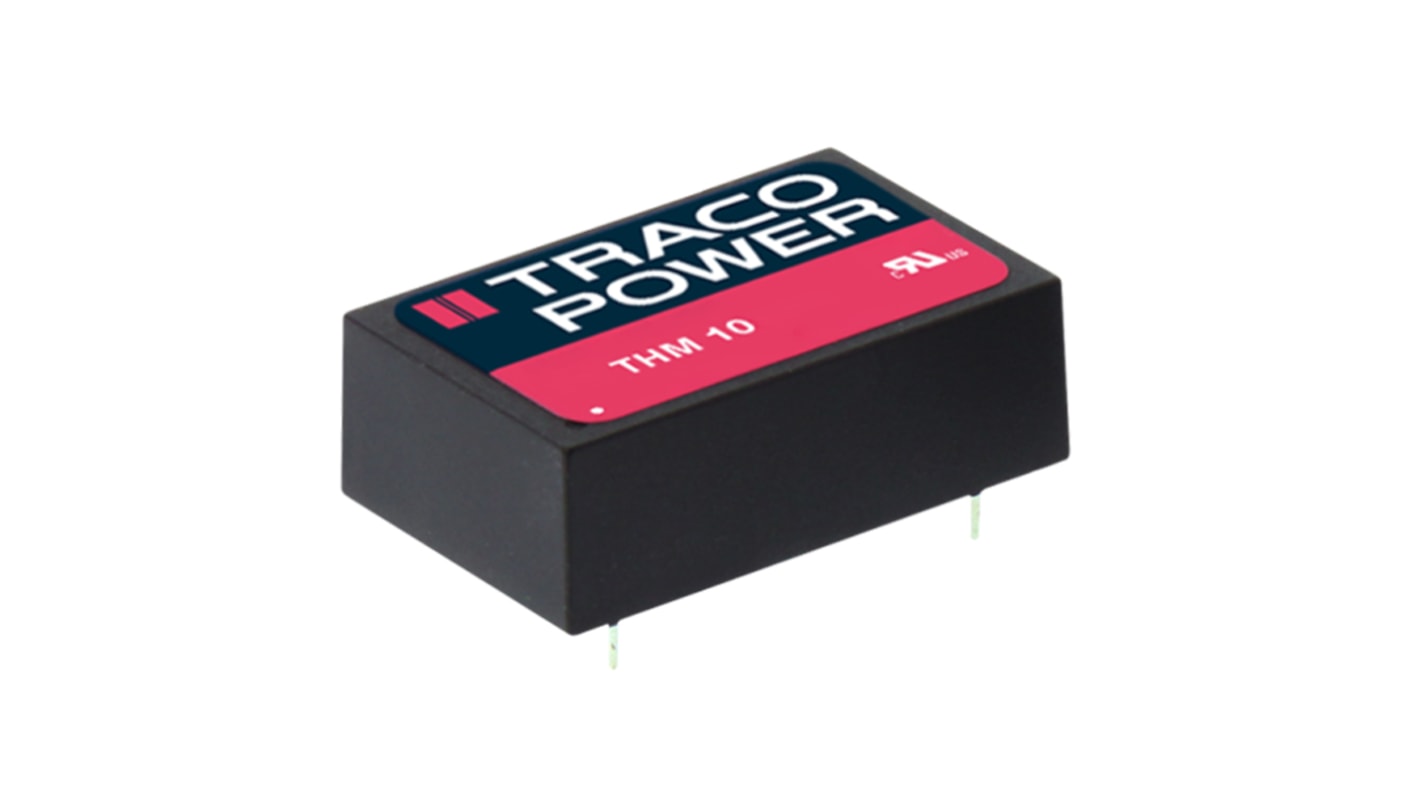

TRACOPOWER THM 10 DC-DC Converter, 5V dc/ 2A Output, 9 → 18 V dc Input, 10W, PCB Mount, +90°C Max Temp -40°C Min
- RS Stock No.:
- 135-0597
- Mfr. Part No.:
- THM 10-1211
- Brand:
- TRACOPOWER
On back order for despatch 10/10/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) 1 Tube of 10
$861.18
(exc. GST)
$947.30
(inc. GST)
Tube(s) | Per Tube | Per unit* |
1 - 4 | $861.18 | $86.118 |
5 - 9 | $826.74 | $82.674 |
10 + | $792.29 | $79.229 |
*price indicative |
- RS Stock No.:
- 135-0597
- Mfr. Part No.:
- THM 10-1211
- Brand:
- TRACOPOWER
Legislation and Compliance
Product Details
Traco Power THM 10 Series, 10 Watt
The THM-10 series is a range of medical 10 Watt DC/DC converters in DIP-24 plastic package with a wide 2:1 input voltage range. They provide a reinforced isolation system for 5000 VACrms isolation and a very low leakage current of less than 2 μA. The units are approved to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP (Means Of Patient Protection) and come along with an ISO 14971 risk management file. Design and production conform to the quality management system ISO 13485. With a high efficien¬cy of up to 87% and highest grade components the converters can reliably operate in an ambient temperature range of –40°C up to +90°C. They constitute a reliable solution not only for medical equipment but also for demanding ranges of application such as transportation, control & measurement or IGBT drivers.
Features and Benefits
• Wide 2:1 input voltage
• I/O isolation 5000 V ac RMS rated for 250 V ac RMS working voltage
• Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP
• Risk management process according to ISO 14971 including risk management file
• Acceptance criteria for electronic assemblies according to IPC-A-610 Level 3
• Low Leakage Current
• Extended operating temperature range –40°C to 90°C
• Operating up to 5000 m altitude
• 5-year product warranty A
• I/O isolation 5000 V ac RMS rated for 250 V ac RMS working voltage
• Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP
• Risk management process according to ISO 14971 including risk management file
• Acceptance criteria for electronic assemblies according to IPC-A-610 Level 3
• Low Leakage Current
• Extended operating temperature range –40°C to 90°C
• Operating up to 5000 m altitude
• 5-year product warranty A
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 9 → 18 V dc |
Power Rating | 10W |
Input Voltage Nominal | 12 V dc |
Output Current | 2A |
Mounting Type | PCB Mount |
Isolated | Yes |
Number of Outputs | 1 |
Package | DIP-24 |
Isolation Voltage | 5kV ac |
Width | 20.3mm |
Depth | 10.2mm |
Length | 31.8mm |
Series | THM 10 |
Load Regulation | 0.002 |
Medical Approved | Yes |
Efficiency | 85.5% |
Standards Met | ANSI/AAMI ES60601-1:2005/(R)2012, CB Scheme IEC 606010-1, cULus Recognised, ES60601-1, IEC/EN 60601-1 |
Maximum Temperature | +90°C |
Minimum Temperature | -40°C |
