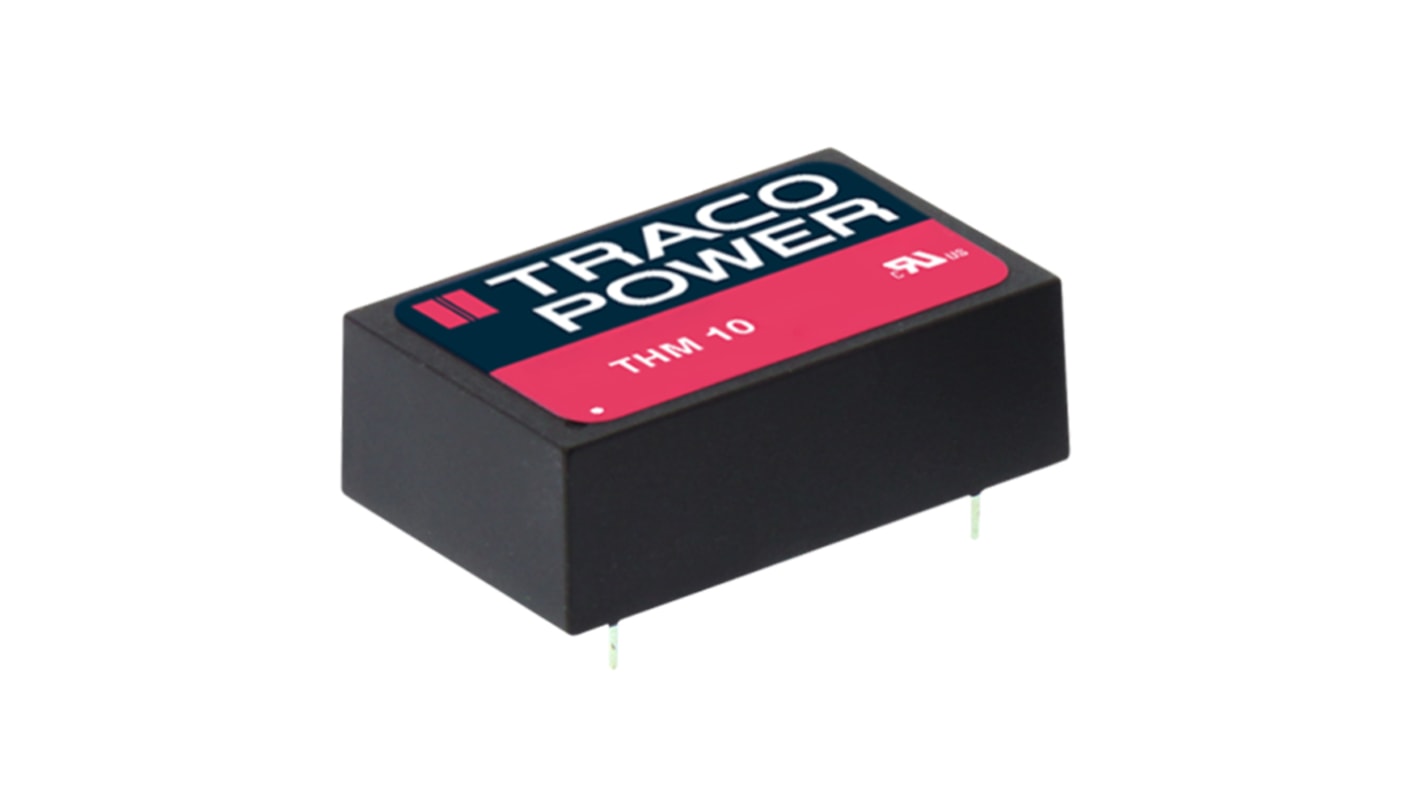

TRACOPOWER THM 10 DC-DC Converter, ±5V dc/ ±1A Output, 9 → 18 V dc Input, 10W, PCB Mount, +90°C Max Temp -40°C
- RS Stock No.:
- 135-0601
- Mfr. Part No.:
- THM 10-1221
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)**
$794.20
(exc. GST)
$873.62
(inc. GST)
On back order for despatch 01/11/2025, delivery within 10 working days from despatch date.*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Tube(s) | Per Tube | Per unit** |
|---|---|---|
| 1 - 4 | $794.20 | $79.42 |
| 5 - 9 | $762.44 | $76.244 |
| 10 + | $730.68 | $73.068 |
**price indicative
- RS Stock No.:
- 135-0601
- Mfr. Part No.:
- THM 10-1221
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±5V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 10W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | ±1A | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | DIP-24 | |
| Isolation Voltage | 5kV ac | |
| Width | 20.3mm | |
| Depth | 10.2mm | |
| Length | 31.8mm | |
| Series | THM 10 | |
| Load Regulation | 0.01 | |
| Medical Approved | Yes | |
| Minimum Temperature | -40°C | |
| Efficiency | 84% | |
| Maximum Temperature | +90°C | |
| Standards Met | ANSI/AAMI ES60601-1:2005/(R)2012, CB Scheme IEC 606010-1, cULus Recognised, ES60601-1, IEC/EN 60601-1 | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±5V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 10W | ||
Input Voltage Nominal 12 V dc | ||
Output Current ±1A | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP-24 | ||
Isolation Voltage 5kV ac | ||
Width 20.3mm | ||
Depth 10.2mm | ||
Length 31.8mm | ||
Series THM 10 | ||
Load Regulation 0.01 | ||
Medical Approved Yes | ||
Minimum Temperature -40°C | ||
Efficiency 84% | ||
Maximum Temperature +90°C | ||
Standards Met ANSI/AAMI ES60601-1:2005/(R)2012, CB Scheme IEC 606010-1, cULus Recognised, ES60601-1, IEC/EN 60601-1 | ||
