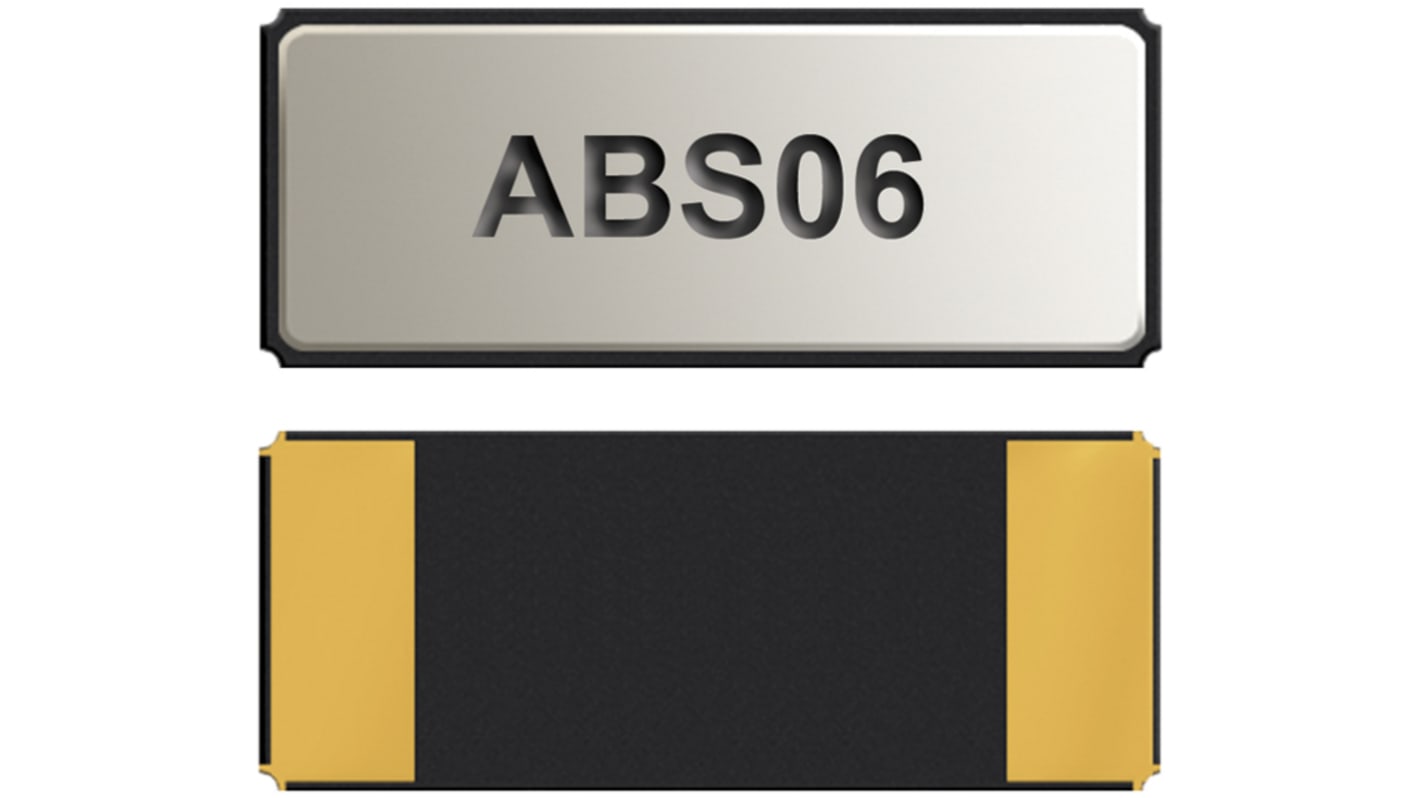

Abracon 32.76kHz Crystal Unit ±20ppm SMD 2-Pin 2 x 1.2 x 0.6mm
- RS Stock No.:
- 187-5735
- Mfr. Part No.:
- ABS06-32.768kHz-7-T
- Brand:
- Abracon
On back order for despatch 19/08/2025, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 3000)
$1.538
(exc. GST)
$1.692
(inc. GST)
| Units | Per unit | Per Reel* |
| 3000 - 12000 | $1.538 | $4,614.00 |
| 15000 + | $1.488 | $4,464.00 |
| *price indicative | ||
- RS Stock No.:
- 187-5735
- Mfr. Part No.:
- ABS06-32.768kHz-7-T
- Brand:
- Abracon
Technical data sheets
Legislation and Compliance
Product Details
Miniature size 2.0 x 1.2 x 0.6mm ideal for high density circuit boards
Ceramic package offers excellent environmental & heat resistance
Extended temperature -55°C to +125°C for industrial applications
Miniature size 2.0 x 1.2 x 0.6mm ideal for high density circuit boards
APPLICATIONS:
Wide range in communication & measuring equipment
Commercial & Industrial applications
Wireless communications
PDA and Palm Pilots
Ceramic package offers excellent environmental & heat resistance
Extended temperature -55°C to +125°C for industrial applications
Miniature size 2.0 x 1.2 x 0.6mm ideal for high density circuit boards
APPLICATIONS:
Wide range in communication & measuring equipment
Commercial & Industrial applications
Wireless communications
PDA and Palm Pilots
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 32.76kHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 7pF |
| Package Type | SMD |
| Pin Count | 2 |
| Length | 2mm |
| Width | 1.2mm |
| Height | 0.6mm |
| Dimensions | 2 x 1.2 x 0.6mm |
| Frequency Tolerance | ±20ppm |
| Series Resistance | 90kΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
