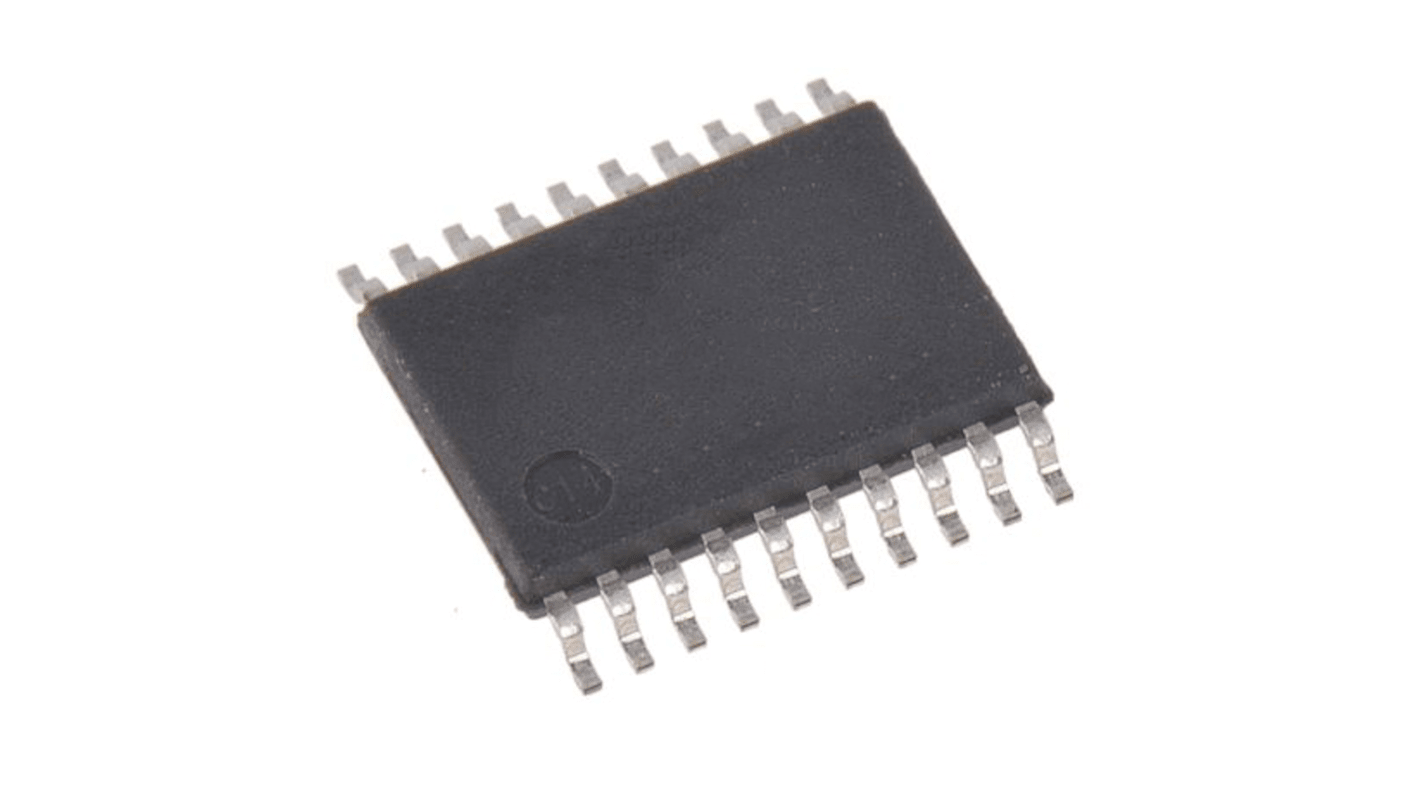

Renesas Electronics 5V41236PGG, Frequency Synthesizer 3.465 V 20-Pin TSSOP
- RS Stock No.:
- 254-4951
- Mfr. Part No.:
- 5V41236PGG
- Brand:
- Renesas Electronics
296 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 2)
$6.345
(exc. GST)
$6.979
(inc. GST)
| Units | Per unit | Per Pack* |
| 2 - 8 | $6.345 | $12.69 |
| 10 - 18 | $5.695 | $11.39 |
| 20 - 24 | $5.585 | $11.17 |
| 26 - 72 | $5.395 | $10.79 |
| 74 + | $4.67 | $9.34 |
| *price indicative | ||
- RS Stock No.:
- 254-4951
- Mfr. Part No.:
- 5V41236PGG
- Brand:
- Renesas Electronics
Technical data sheets
Legislation and Compliance
Product Details
The Renesas Electronics PCIe Gen1/2/3 compliant spread spectrum capable clock generator. The device has 4 differential HCSL outputs and can be used in communication or embedded systems to substantially reduce electro-magnetic interference (EMI). The spread amount and output frequency are selectable via select pins.
20-TSSOP package, small board footprint
Spread spectrum capable, reduces EMI
Outputs can be terminated to LVDS, can drive a wider variety of devices
Power-down pin, greater system power management
OE control pin, greater system power management
Spread% and frequency pin selection, no software required to configure device
Industrial temperature range available, supports demanding embedded applications
Spread spectrum capable, reduces EMI
Outputs can be terminated to LVDS, can drive a wider variety of devices
Power-down pin, greater system power management
OE control pin, greater system power management
Spread% and frequency pin selection, no software required to configure device
Industrial temperature range available, supports demanding embedded applications
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Category | Digital Synthesizer |
| Maximum Output Frequency | 200MHz |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 20 |
| Maximum Operating Supply Voltage | 3.465 V |
