Renesas Electronics 5V41066PGGI Digital Synthesiser 4 20-Pin 3.47 V TSSOP

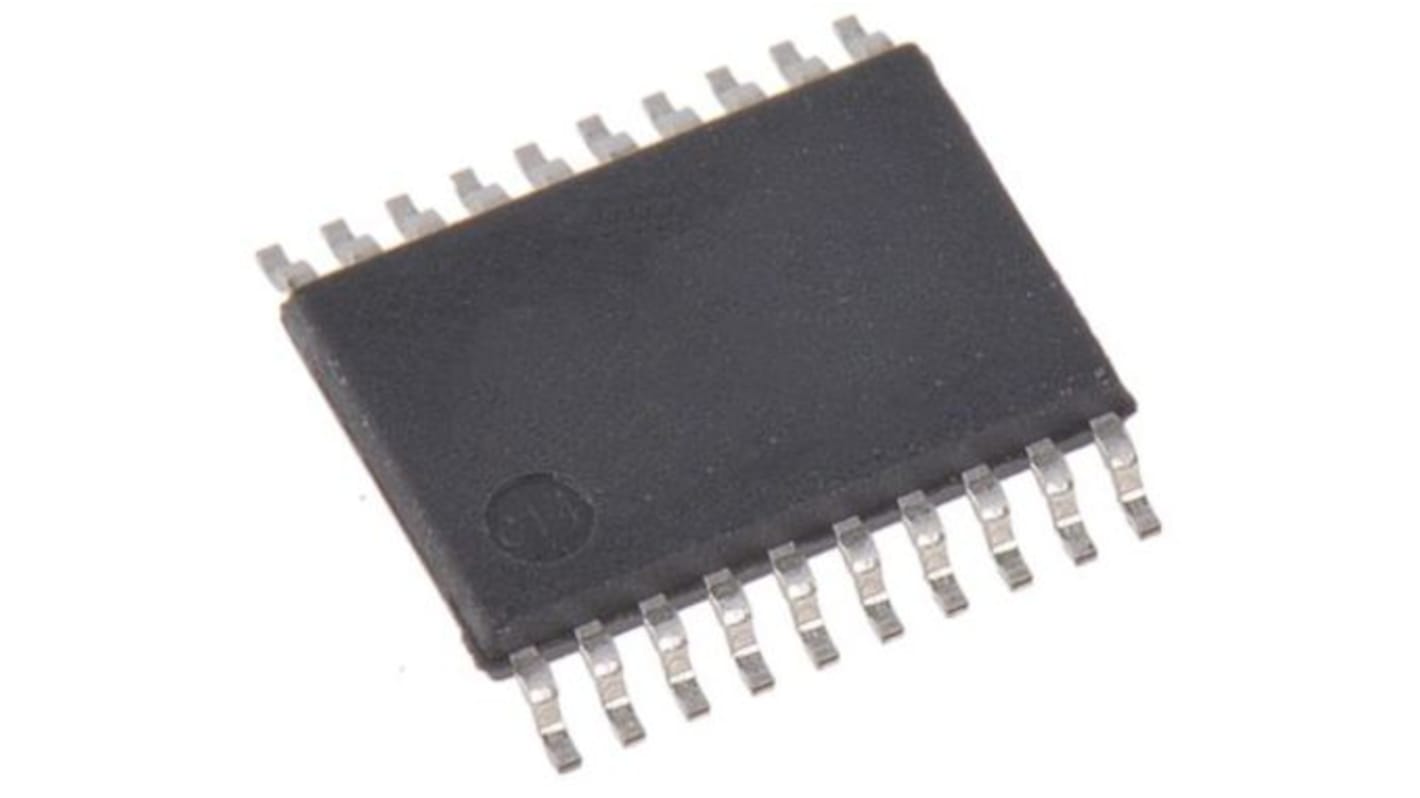

This image is representative of the product range

View all Clock Synthesizers
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
217-7874
Mfr. Part No.:
5V41066PGGI
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

Digital Synthesiser

Sub Type

Digital Synthesiser

Maximum Output Frequency

200MHz

Output Logic Level

CMOS

Mount Type

Surface

Package Type

TSSOP

Pin Count

20

Maximum Input Frequency

25MHz

Minimum Supply Voltage

3.14V

Maximum Supply Voltage

3.47V

Minimum Operating Temperature

-40°C

Input Logic Level

CMOS

Maximum Operating Temperature

85°C

Height

1mm

Standards/Approvals

No

Series

5V41066

Length

6.5mm

Automotive Standard

No

The Renesas Electronics 5V41066 is a PCIe Gen2 compliant spread-spectrum-capable clock generator. The device has 4 differential HCSL outputs and can be used in communication or embedded systems to substantially reduce electro-magnetic interference (EMI). The spread amount and output frequency are selectable via select pins.

4 - 0.7V current mode differential HCSL output pairs

20-pin TSSOP package

small board footprint

Spread-spectrum capable

reduces EMI

Outputs can be terminated to LVDS

can drive a wider variety of devices

Power down pin

greater system power management

OE control pin

greater system power management

Spread% and frequency pin selection

no software required to configure device

Industrial temperature range available

supports demanding embedded applications

For PCIe Gen3 applications, see the 5V41236

Cycle-to-cycle jitter < 100 ps

Output-to-output skew < 50 ps

PCIe Gen2 phase jitter < 3.0ps RMS
