RS PRO Heat Shrink Cable Marker, White, 2.3 → 5.5mm Cable
- RS Stock No.:
- 872-6249
- Brand:
- RS PRO
21 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) 1 Box of 250
$89.93
(exc. GST)
$98.92
(inc. GST)
| Box(es) | Per Box | Per unit* |
| 1 - 14 | $89.93 | $0.36 |
| 15 - 74 | $88.79 | $0.355 |
| 75 + | $73.06 | $0.292 |
| *price indicative | ||
- RS Stock No.:
- 872-6249
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

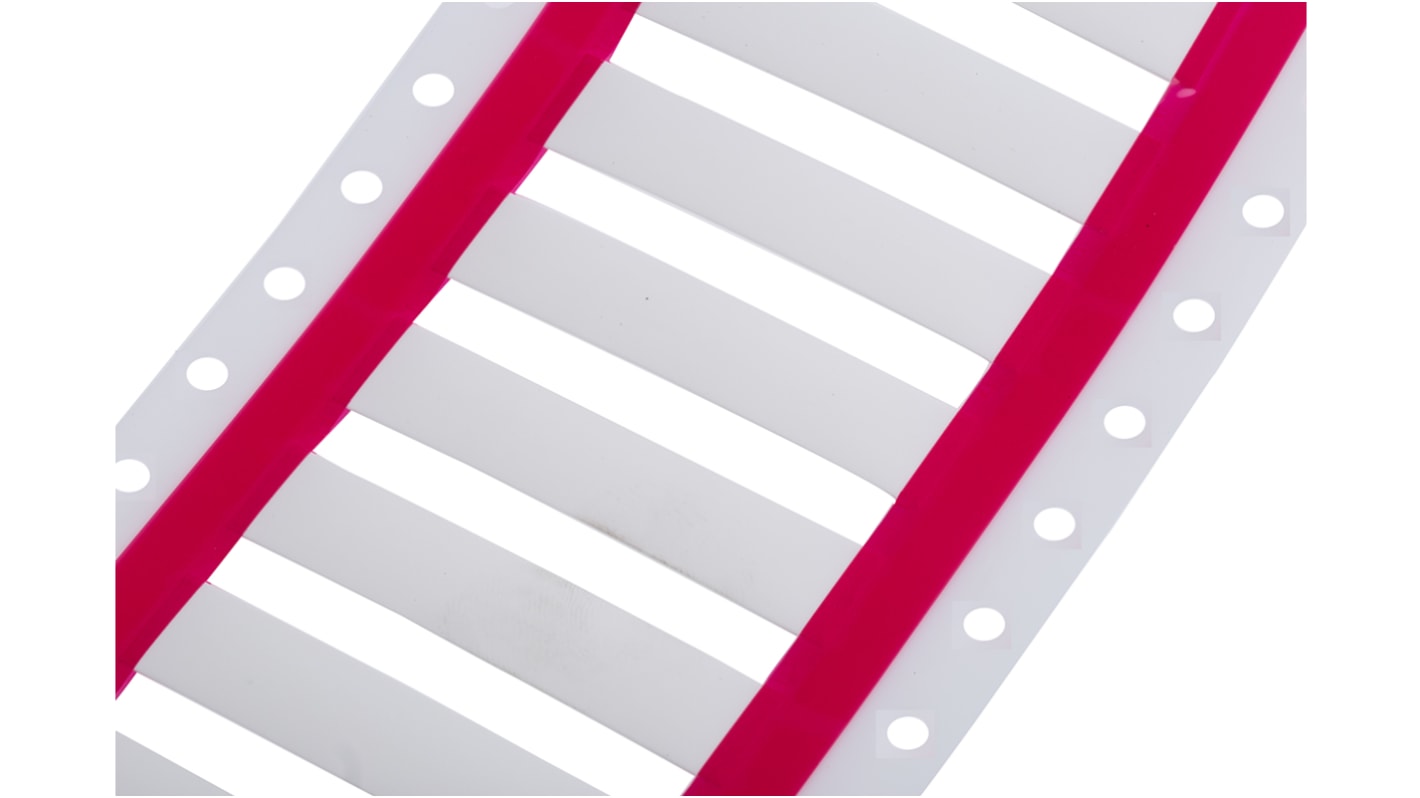

RS Heat-shrink Identification Sleeves
Heat shrinkable identification sleeves that are manufactured from high quality, flame retardant polyolefin with excellent performance properties. The marker sleeves are pre-cut and organised in a ladder format. The identification sleeves are extremely flexible with a thin wall design allowing them to be used with printers; reducing errors, installation time and cost.
Features and benefits
• Shrink ratio of 3:1
• Available in yellow or white, in a range of diameter sizes
• Ready to use for thermal transfer printers
• Flexible
• Flame retardant
• Good abrasion and chemical resistance
• Reliable physical, chemical and electrical properties
• Pre-cut tube with dotted line for tearing off the tube easily
Specifications
Attribute | Value |
|---|---|
| Affixing Method | Heat Shrink |
| Minimum Cable Diameter | 2.3mm |
| Maximum Cable Diameter | 5.5mm |
| Colour | White |
| Width | 6.4 mm |
| Quantity | 250 |
| Material | Polyolefin |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Fire Behaviour | Flame Retardant |
| Cable Diameter Range | 2.3 → 5.5mm |
| Resistant To | Abrasion, Chemicals |
| Operating Temperature Range | -55 → +125 °C |
| Standards Met | cULus, RoHS Compliant |
