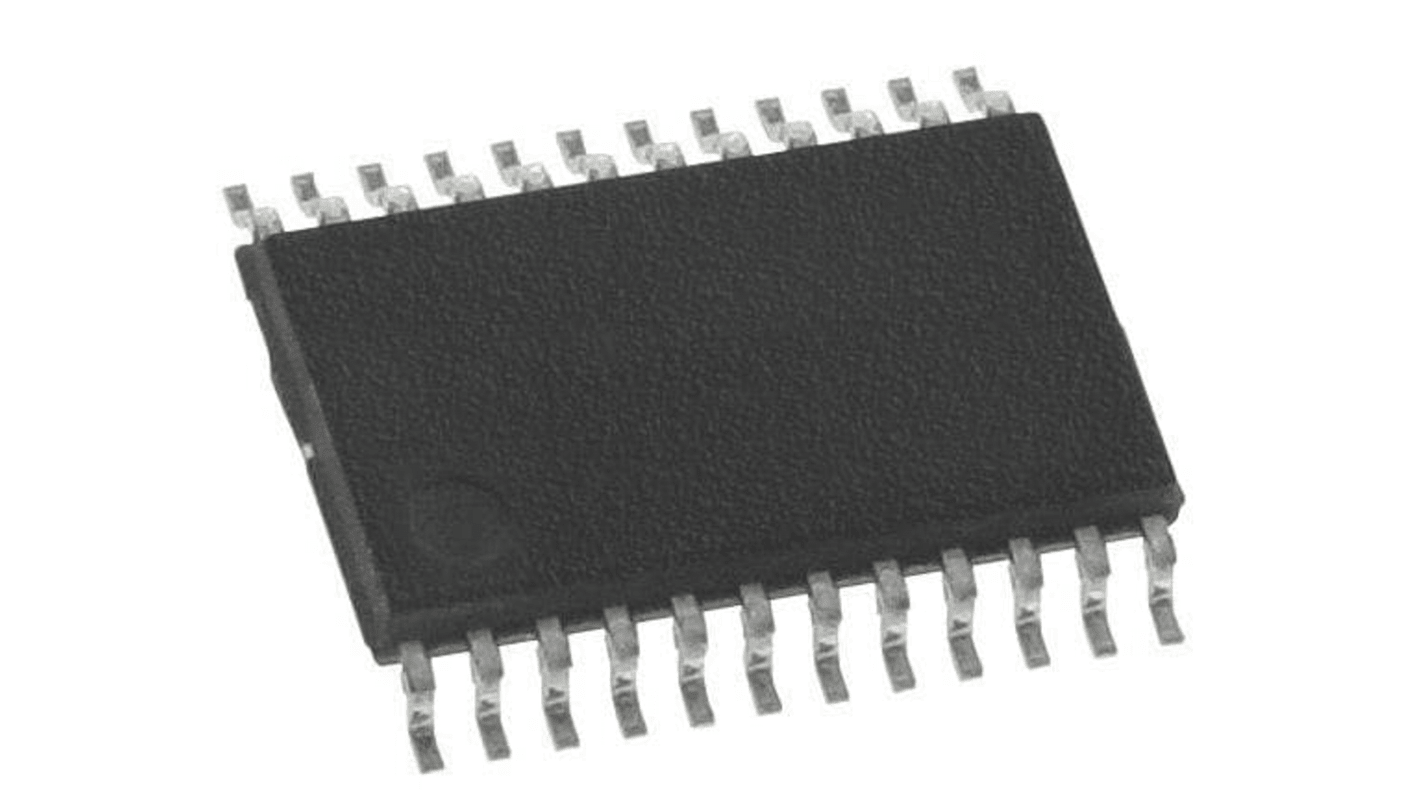

Renesas Electronics QS3384PAG8, Bus Switch
- RS Stock No.:
- 264-1318
- Mfr. Part No.:
- QS3384PAG8
- Brand:
- Renesas Electronics
3000 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (On a Reel of 3000)
$1.143
(exc. GST)
$1.257
(inc. GST)
| Units | Per unit | Per Reel* |
| 3000 + | $1.143 | $3,429.00 |
| *price indicative | ||
- RS Stock No.:
- 264-1318
- Mfr. Part No.:
- QS3384PAG8
- Brand:
- Renesas Electronics
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The Renesas Electronics QS3384 provides a set of ten high-speed CMOS, TTL-compatible bus switches. The low ON resistance of QS3384 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce. Two banks of 5 switches are controlled by independent Bus Enable (BE) signals.
Enhanced N channel FET with no inherent diode to Vcc
5Ω bidirectional switches connect inputs to outputs
Zero propagation delay, zero added ground bounce
Undershoot clamp diodes on all switch and control inputs
5Ω bidirectional switches connect inputs to outputs
Zero propagation delay, zero added ground bounce
Undershoot clamp diodes on all switch and control inputs
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Number of Inputs per Chip | 10 |
| Number of Outputs per Chip | 10 |
