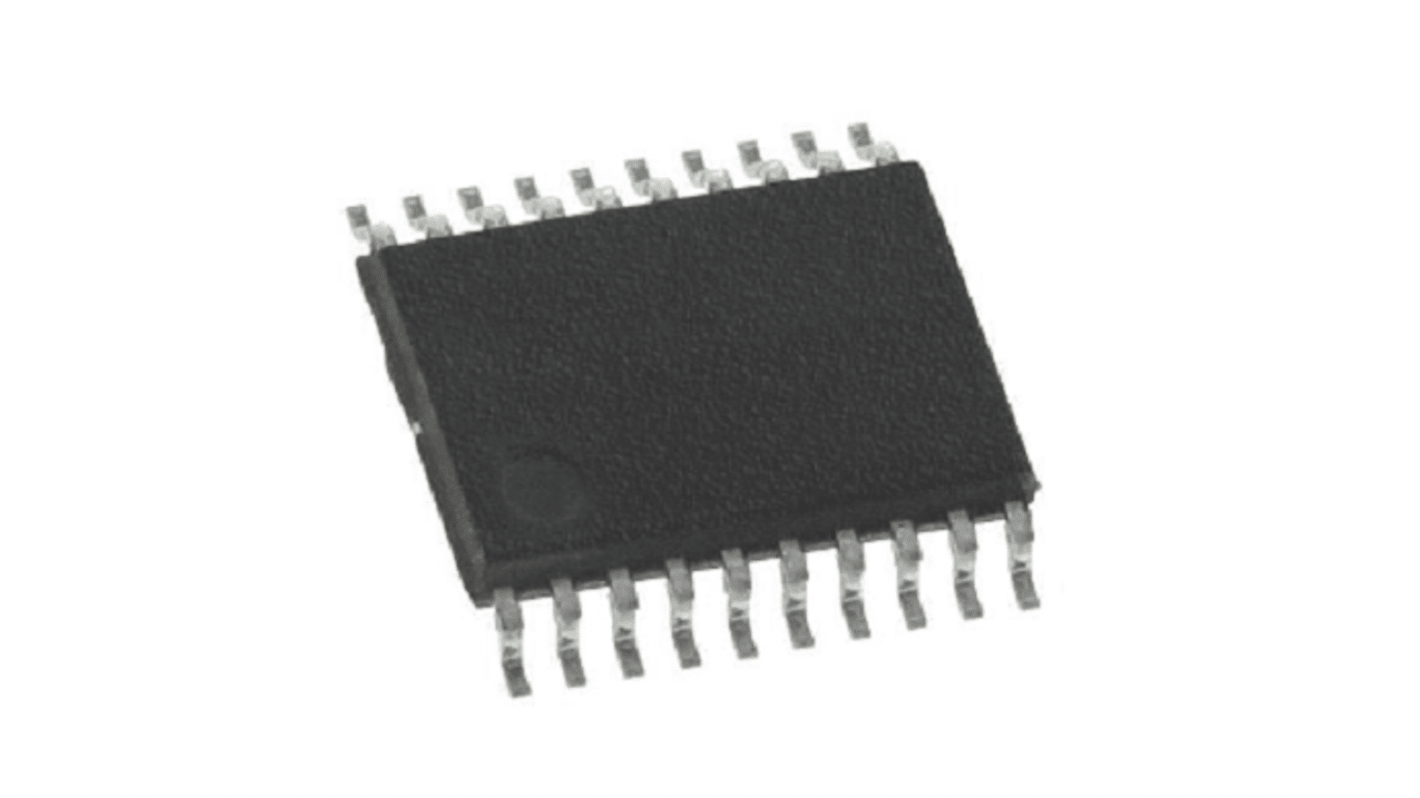

Renesas Electronics 74CBTLV3244PGG8, Bus Switch
- RS Stock No.:
- 249-2443
- Mfr. Part No.:
- 74CBTLV3244PGG8
- Brand:
- Renesas Electronics
On back order for despatch 03/05/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Pack of 10)
$1.339
(exc. GST)
$1.473
(inc. GST)
| Units | Per unit | Per Pack* |
| 10 - 40 | $1.339 | $13.39 |
| 50 - 90 | $1.298 | $12.98 |
| 100 - 240 | $1.259 | $12.59 |
| 250 - 990 | $1.221 | $12.21 |
| 1000 + | $1.184 | $11.84 |
| *price indicative | ||
- RS Stock No.:
- 249-2443
- Mfr. Part No.:
- 74CBTLV3244PGG8
- Brand:
- Renesas Electronics
Technical data sheets
Legislation and Compliance
Product Details
The Renesas Electronics octal bus switch has standard 244 pinouts and is designed for asynchronous communication between data buses. Sets of four switches are controlled by one output Enable (OE). When OE is low, the set of four bus switches is on and port A is connected to port B. When OE is high, the set of four bus switches is off and a high impedance exists between port A and port B.
Pin-out compatible with standard '244 Logic products
5Ω A/B bi-directional switch
Isolation under power-off conditions and over-voltage tolerant
5Ω A/B bi-directional switch
Isolation under power-off conditions and over-voltage tolerant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Logic Family | FCT |
