IXYS Bridge Rectifier, 1700 V 595 A, 5-Pin Single
- RS Stock No.:
- 168-4594
- Mfr. Part No.:
- VUO86-16NO7
- Brand:
- IXYS

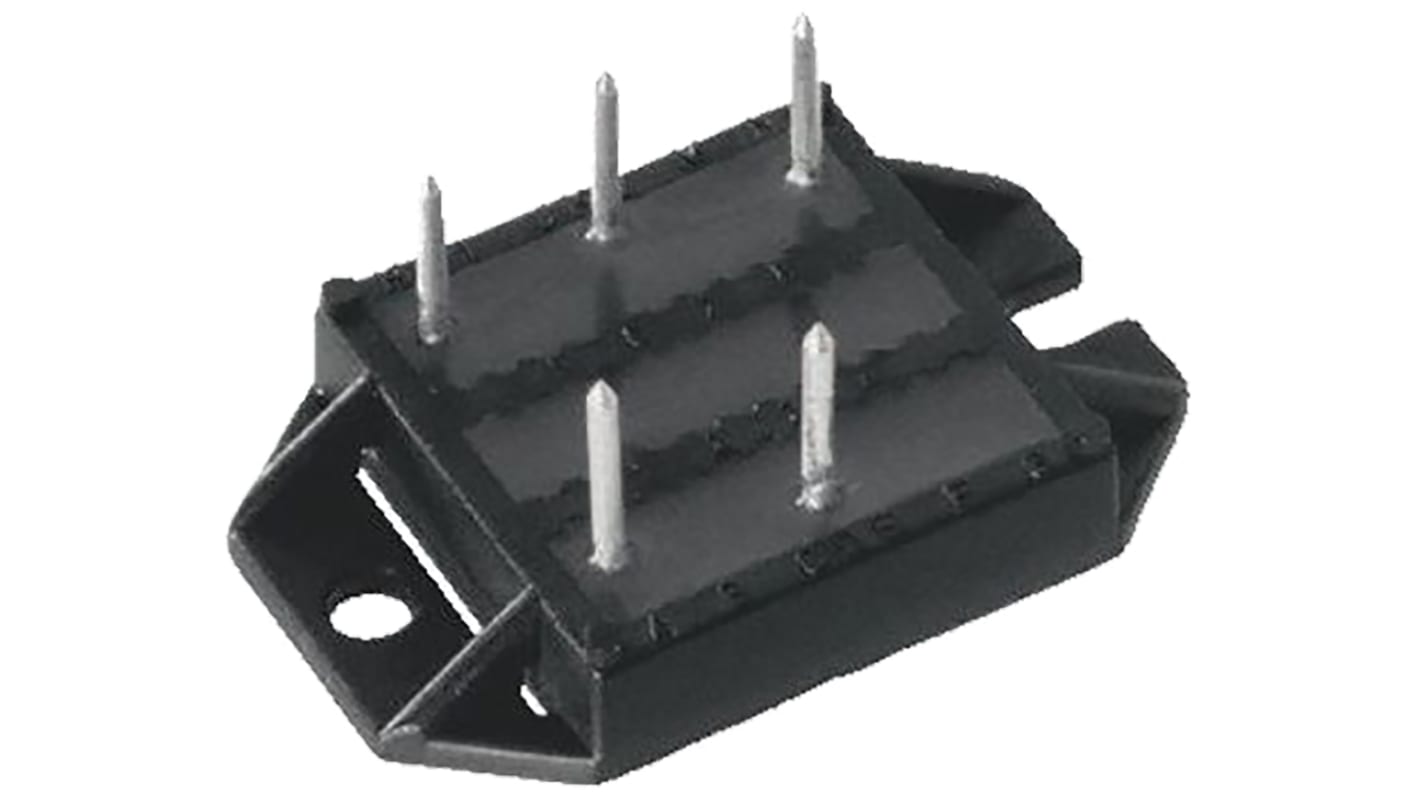

This image is representative of the product range
Bulk discount available
Subtotal (1 tube of 25 units)*
$557.50
(exc. GST)
$613.25
(inc. GST)
Add 25 units to get free delivery
In Stock
- 125 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 25 - 25 | $22.30 | $557.50 |
| 50 - 75 | $21.742 | $543.55 |
| 100 + | $21.407 | $535.18 |
*price indicative
- RS Stock No.:
- 168-4594
- Mfr. Part No.:
- VUO86-16NO7
- Brand:
- IXYS
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IXYS | |
| Product Type | Bridge Rectifier | |
| Peak Reverse Repetitive Voltage Vrrm | 1700V | |
| Mount Type | PCB | |
| Number of Phases | 3 | |
| Package Type | ECO-PAC1 | |
| Pin Count | 5 | |
| Configuration | Single | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Forward Current If | 90A | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 595A | |
| Peak Forward Voltage Vf | 1.51V | |
| Series | VUO86 | |
| Standards/Approvals | No | |
| Height | 9mm | |
| Peak Reverse Current Ir | 1.5mA | |
| Width | 30.3 mm | |
| Length | 47mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand IXYS | ||
Product Type Bridge Rectifier | ||
Peak Reverse Repetitive Voltage Vrrm 1700V | ||
Mount Type PCB | ||
Number of Phases 3 | ||
Package Type ECO-PAC1 | ||
Pin Count 5 | ||
Configuration Single | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
Forward Current If 90A | ||
Peak Non-Repetitive Forward Surge Current Ifsm 595A | ||
Peak Forward Voltage Vf 1.51V | ||
Series VUO86 | ||
Standards/Approvals No | ||
Height 9mm | ||
Peak Reverse Current Ir 1.5mA | ||
Width 30.3 mm | ||
Length 47mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- DE
Three Phase Bridge Rectifier for PCB Mounting, VUO86 Series, IXYS
Package with Direct Copper Bonding (DCB) ceramic base plate
Low forward voltage drop
Isolation voltage 3000Vrms
Soldering pins for PCB mounting
Bridge Rectifiers - IXYS
A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
