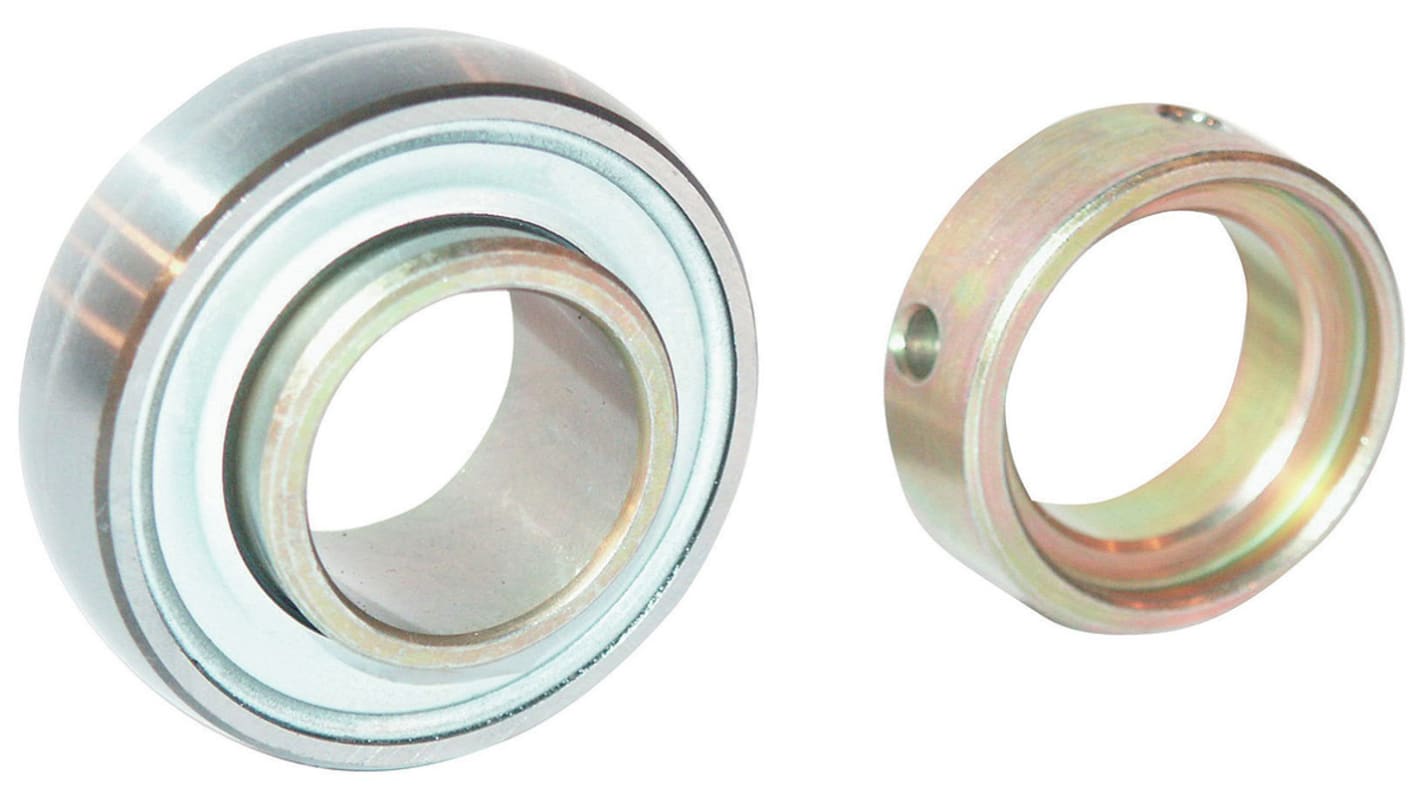

INA Bearing Inserts 60mm ID 110mm OD GRAE60-XL-NPP-B

RS Stock No.:: 137-1817
Mfr. Part No.:: GRAE60-XL-NPP-B
Brand:: INA

INA Bearing Inserts 60mm ID 110mm OD GRAE60-XL-NPP-B

View all Bearing Inserts

Bulk discount available

Subtotal (1 unit)**

$212.09

(exc. GST)

$233.30

(inc. GST)

3 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 12	$212.09
13 - 24	$206.16
25 +	$203.15

**price indicative

RS Stock No.:: 137-1817
Mfr. Part No.:: GRAE60-XL-NPP-B
Brand:: INA

Radial Insert Ball Bearings with Eccentric Locking Collar

INA from Schaeffler classic radial insert ball bearings are located on the shaft with a locking collar. They are suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation.

The locking collar is preferably tightened in the direction of rotation and secured with a grub screw. This location method prevents damage to the shaft and can be easily loosened again.

The P seal is two zinc-coated sheet steel washers with intermediate NBR part, seal lip axially preloaded.

The R seal is two zinc-coated sheet steel washers extended outwards and angled downwards with intermediate NBR part and radially preloaded seal lip. Better protection against mechanical damage.
Substantial grease reservoir due to the space between the extended and angled sheet steel washers. Used in radial insert ball bearings with inner ring extended on both sides.

To protect the seal lip from mechanical damage, the outer sheet steel washer extends a considerable distance down towards the bearing inner ring.

In addition to bearings with a spherical outer ring (GRAE..-NPP-B and GE..-KRR-B), there are also cylindrical (RAE..-NPP and RALE..-NPP)

Features and Benefits

• Lower operating costs

• Reduced maintenance due to improved lubrication

• Lower heat generation

• Less noise

• Protected against fretting corrosion

• Shaft diameters from 12 mm to 60 mm (RAE..NPP) and (GRAE..-NPP-B)

• Shaft diameters from 20 mm to 30 mm (RALE..NPP)

• Shaft diameters from 17 mm to 120 mm (GE..-KRR-B)

Suffixes

FA106 - Bearing subjected to special noise testing

B - Bearing with special outer ring

NPP - Lip seals on both sides (P type seal)

KRR - Lip seals on both sides (R type seal)

Schaeffler Bearing Inserts, 60mm Inside Diameter, 110mm Outside Diameter - GRAE60-XL-NPP-B

This bearing insert is designed for robust industrial applications. With an inside diameter of 60mm and an outside diameter of 110mm, it is manufactured from durable steel, making it suitable for high-stress environments. The insert provides efficient functionality in various machinery, offering both static and dynamic load ratings to meet demanding performance requirements.

Features & Benefits

• High static load rating of 36,000 N for durability
• Dynamic load rating of 56,000 N accommodates heavy loads
• Supports various automation and mechanical usage
• Ideal for heavy-duty operations and industrial setups
• Provides effective solutions for machinery performance challenges

Applications

• Utilised in conveyor systems for material handling
• Integrated into machinery for high-load bearing solutions
• Suitable for use in robotics and automation systems
• Effective in various electrical and mechanical installations
• Compatible with industrial equipment requiring heavy-duty performance

How does the load rating influence the choice of bearing insert?

The load ratings are critical as they determine the maximum weight the insert can support, ensuring reliability under specific working conditions. A higher rating indicates suitability for more demanding applications, reducing the likelihood of failure.

What benefit does the steel construction provide in operational settings?

Steel construction enhances durability, providing resistance against wear and tear. This material choice allows the insert to withstand harsh conditions and ensures longevity in both static and dynamic applications.

Can these inserts be used in high-speed machinery?

The dynamic load rating indicates that they can indeed be utilised in high-speed applications, maintaining performance and reliability while handling significant forces generated during operation.

What specific challenges are addressed by using these bearing inserts?

These inserts efficiently manage high loads, reducing friction and wear on machinery components, which leads to lower maintenance costs and enhanced performance in various industrial environments.

INA

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	INA
	Inside Diameter	60mm
	Outside Diameter	110mm
	Material	Steel
	Static Load Rating	36000N
	Dynamic Load Rating	56000N

	Select all
	Brand INA
	Inside Diameter 60mm
	Outside Diameter 110mm
	Material Steel
	Static Load Rating 36000N
	Dynamic Load Rating 56000N
