SKF E2.609-2Z/C3 1 Row Ball Bearing - 9 mm ID, 24 mm OD
- RS Stock No.:
- 719-2002
- Mfr. Part No.:
- E2.609-2Z/C3
- Brand:
- SKF
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$10.39
(exc. GST)
$11.43
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 28 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 5 | $10.39 |
| 6 - 24 | $10.26 |
| 25 + | $9.99 |
*price indicative
- RS Stock No.:
- 719-2002
- Mfr. Part No.:
- E2.609-2Z/C3
- Brand:
- SKF
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 9mm | |
| Outside Diameter | 24mm | |
| Race Width | 7mm | |
| Cage Material | Non-Metallic | |
| Ball Material | Steel | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 1.66kN | |
| Dynamic Load Rating | 3.71kN | |
| Series | 0 Extra Light | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 37000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 9mm | ||
Outside Diameter 24mm | ||
Race Width 7mm | ||
Cage Material Non-Metallic | ||
Ball Material Steel | ||
End Type Shielded | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 1.66kN | ||
Dynamic Load Rating 3.71kN | ||
Series 0 Extra Light | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 37000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
RoHS Status: Exempt

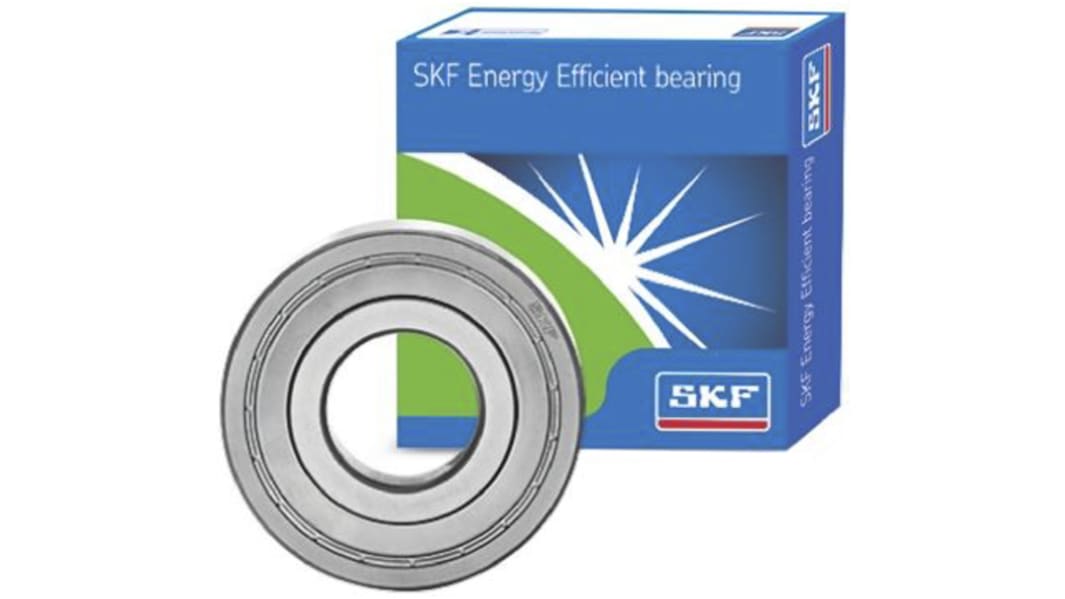

SKF Ball Bearing, Deep-Groove Bearing Type, Shielded, 9mm ID, 24mm OD - E2.609-2Z/C3
Need a low-friction ball bearing to support light and medium loads? Use this deep-groove ball bearing from SKF. Thanks to its fibreglass-reinforced composite polymer cage, the spaces between the balls are accurately maintained in the 7mm plain raceway. This lets the unit handle speeds up to 34,000rpm. The single-row cylindrical-bore design prevents energy loss at a rate 66% better than regular ball bearings to keep your system running efficiently.
• Dynamic load rating of 3.71kN for use with medium loads
• Smooth precision-engineered raceway to suppress noise and vibrations
• Shielded to keep the grease inside for a longer lifespan
• Steel material for durability and strength
Applications
• Mining applications
• Power plant conveyors
Can I use this ball bearing in demanding environments?
Yes. Thanks to its wide operating temperature range of -50°C to +150°C, you can use this bearing in harsh conditions.
Will this bearing need to be relubricated?
No. This unit has a non-contact steel shield on both sides to prevent the lubricant from leaking out, saving you the hassle of relubricating.
