- RS Stock No.:
- 285-0807
- Mfr. Part No.:
- 623-2Z
- Brand:
- SKF
On back order for despatch 10/09/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$9.93
(exc. GST)
$10.92
(inc. GST)
Units | Per unit |
1 - 24 | $9.93 |
25 - 49 | $9.83 |
50 + | $9.70 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 285-0807
- Mfr. Part No.:
- 623-2Z
- Brand:
- SKF
Legislation and Compliance
Product Details

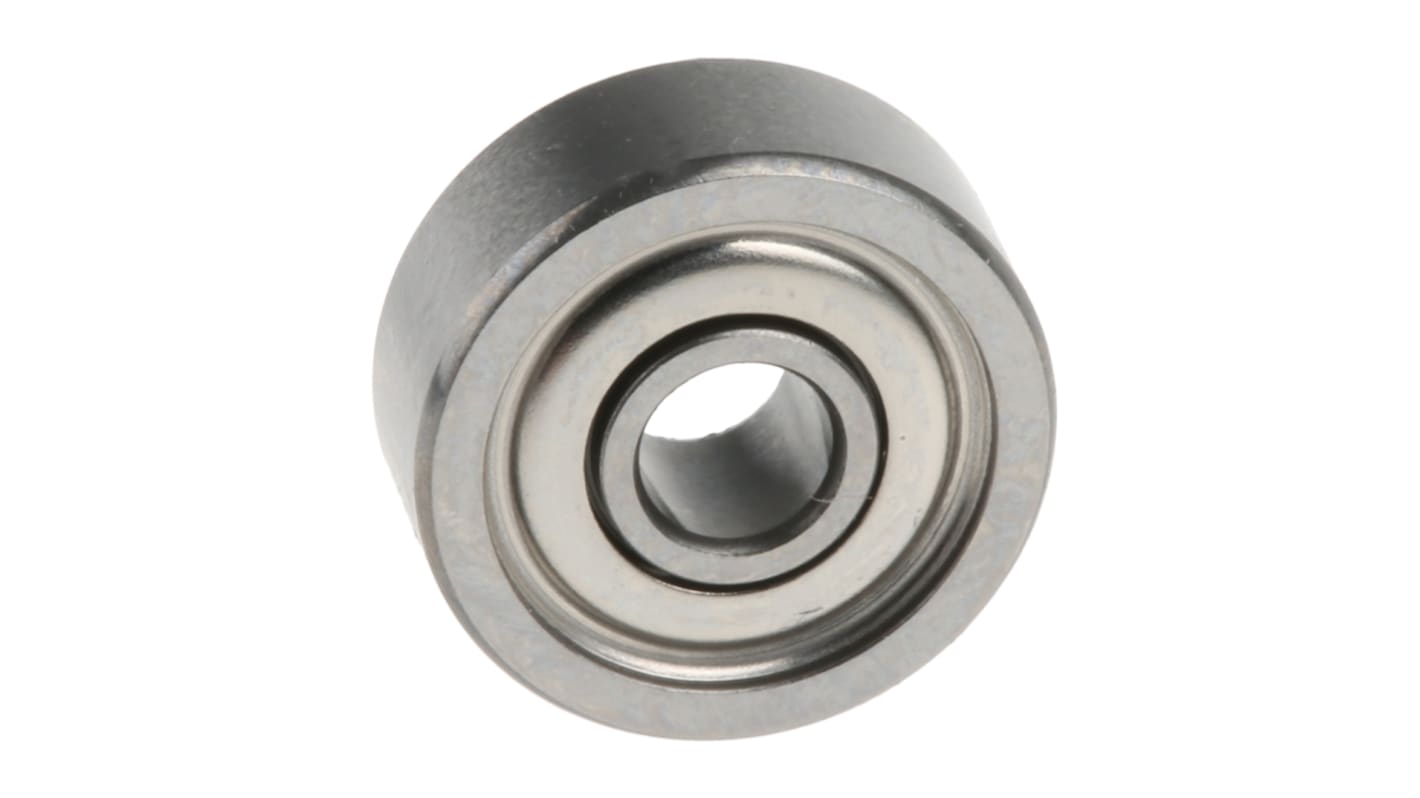

SKF Deep-Groove Ball Bearing, 3mm ID, 10mm OD - 623-2Z
Support radial and axial loads simultaneously with this robust ball bearing from SKF. It features a deep-groove construction with balls that fit snugly inside the smooth raceway for improved stability and a high load-carrying capacity. A limiting speed of 63,000rpm (rotations per minute) makes it a good choice for your very high-speed applications. Like all SKF deep-groove ball bearings, it's heat-stabilised up to +120°C, so it's suitable for use in applications where exposure to high temperatures is likely.
• Pre-lubricated to reduce friction for more efficient performance
• Stainless-steel construction for impact strength, durability and resistance to oxidation to ensure a long service life
• Static load rating of 180N and dynamic load rating of 540N to support heavy loads
• Stainless-steel construction for impact strength, durability and resistance to oxidation to ensure a long service life
• Static load rating of 180N and dynamic load rating of 540N to support heavy loads
Applications
• Agricultural equipment
• Pumps and engines
• Industrial conveyor belts
• Pumps and engines
• Industrial conveyor belts
Is this bearing suitable for use in dusty or damp environments?
Thanks to the bearing's two metal shields, it's protected against dirt, moisture and other debris that can interfere with the performance of the bearing. This makes it a robust choice for use in demanding industrial environments.
Specifications
Attribute | Value |
---|---|
Inside Diameter | 3mm |
Outside Diameter | 10mm |
Race Width | 4mm |
Ball Bearing Type | Single Row Deep Groove Ball Bearing |
Sealing Arrangement | Both Sides Shielded |
Bearing Clearance | CN |
Material | Steel |
Ball Material | Steel |
Cage Material | Sheet Metal |
Number of Rows | 1 |
Static Load Rating | 180N |
Dynamic Load Rating | 540N |
Bore Type | Parallel |
Bearing Series | 2 Light |
Race Type | Plain |
Model Number p | 6232Z |
Partial Bearing Code | 623 |
