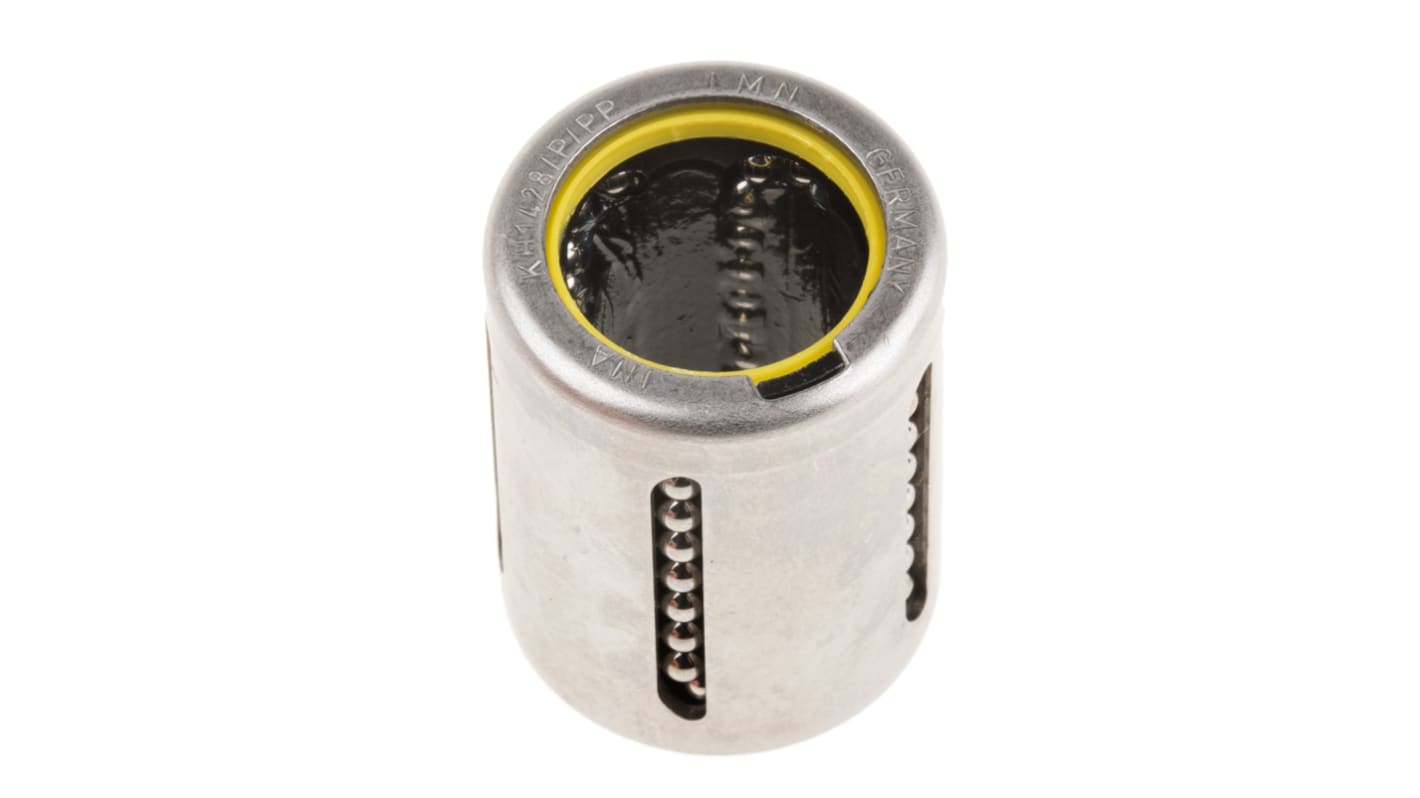

INA KH14-PP Linear Ball Bearing- Both Sides Sealed 14mm I.D, 21mm O.D

RS Stock No.:: 137-1570
Mfr. Part No.:: KH14-PP
Brand:: INA

INA KH14-PP Linear Ball Bearing- Both Sides Sealed 14mm I.D, 21mm O.D

View all Ball Bearings

Bulk discount available

Subtotal (1 unit)**

$40.23

(exc. GST)

$44.25

(inc. GST)

4 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 12	$40.23
13 - 24	$39.09
25 +	$38.04

**price indicative

RS Stock No.:: 137-1570
Mfr. Part No.:: KH14-PP
Brand:: INA

Linear Ball Bearings

INA from Schaeffler linear ball bearings KH and linear ball bearing and housing units of the compact range have a small radial design envelope and are economical. Their low radial section height automatically makes them attractive for applications in which only a small amount of radial space is available.

The bearings have an outer ring with openings and contain a ball and cage assembly with a plastic cage. The outer ring is formed and hardened. The balls undergo return travel along the openings in the outer ring.

The bearings are available in an open version and with lip seals on both sides (suffix PP). The end face seals have two seal lips; the outer lip prevents the ingress of contamination, the inner lip retains the lubricant in the bearing.

Features and Benefits

• Lower operating costs

• Reduced maintenance due to improved lubrication

• Lower heat generation

• Less noise

Product Application Information

Due to the closed design, these linear bearings are suitable for use on shafts.

Suffixes

PP - Lip seals on both sides

Schaeffler KH14PP Series Ball Bearing, 14mm Inside Diameter, 21mm Outside Diameter - KH14-PP

This ball bearing is a high-performance linear ball bearing designed for applications requiring precision and reliability. With an inside diameter of 14mm and an outside diameter of 21mm, it is engineered to withstand significant loads, making it suitable for demanding environments. The sealed design enhances longevity by protecting it from contaminants.

Features & Benefits

• Offers high static load capacity of 760N
• Dynamic load rating reaches up to 830N
• Constructed from durable steel for robustness
• Features a polyamide cage for lightweight performance
• Both sides are sealed to prevent contamination
• Designed with CN clearance for effective operation

Applications

• Utilised in automated machinery for smooth movement
• Suitable for precision equipment in the electronics industry
• Ideal for linear motion systems in mechanical setups
• Employed in electrical needing reliable bearing performance

How does the sealed design benefit operation?

The sealed construction ensures that contaminants do not enter the bearing, which enhances its longevity and maintains performance in demanding conditions.

What are the implications of the CN clearance on functionality?

The CN clearance allows a fit that balances snugness and freedom of movement, making it suitable for applications that require both precision and the capacity to accommodate thermal expansion.

In what conditions should this bearing be used?

It is best suited for applications where exposure to contaminants is a concern, such as in dusty or humid environments, ensuring operational reliability.

What is the significance of the steel and polyamide materials used?

Steel offers strength and durability, while the polyamide cage reduces weight and friction, promoting efficient performance during operation.

How do the load ratings affect selection for specific applications?

The static and dynamic load ratings inform users about the maximum forces the bearing can handle, enabling informed decisions based on operational demands and ensuring reliability in various applications.

INA

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	INA
	Inside Diameter	14mm
	Outside Diameter	21mm
	Race Width	28mm
	Ball Bearing Type	Linear Ball Bearing
	Sealing Arrangement	Both Sides Sealed
	Bearing Clearance	CN
	Material	Steel
	Ball Material	Steel
	Cage Material	Polyamide
	Number of Rows	1
	Static Load Rating	760N
	Dynamic Load Rating	830N
	Clearance Code	CN
	Bore Type	Parallel
	Race Type	Plain
	Partial Bearing Code	KH14PP

	Select all
	Brand INA
	Inside Diameter 14mm
	Outside Diameter 21mm
	Race Width 28mm
	Ball Bearing Type Linear Ball Bearing
	Sealing Arrangement Both Sides Sealed
	Bearing Clearance CN
	Material Steel
	Ball Material Steel
	Cage Material Polyamide
	Number of Rows 1
	Static Load Rating 760N
	Dynamic Load Rating 830N
	Clearance Code CN
	Bore Type Parallel
	Race Type Plain
	Partial Bearing Code KH14PP
