INA KH10-PP Linear Ball Bearing- Both Sides Sealed 10mm I.D, 17mm O.D

RS Stock No.:: 137-1568
Mfr. Part No.:: KH10-PP
Brand:: INA

INA KH10-PP Linear Ball Bearing- Both Sides Sealed 10mm I.D, 17mm O.D

View all Ball Bearings

Bulk discount available

Subtotal (1 unit)**

$30.33

(exc. GST)

$33.36

(inc. GST)

11 In Global stock for delivery within 10 working day(s)*

47 In Global stock for delivery within 10 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80.00 ex GST

Units	Per unit
1 - 12	$30.33
13 - 24	$29.48
25 +	$29.04

**price indicative

RS Stock No.:: 137-1568
Mfr. Part No.:: KH10-PP
Brand:: INA

Datasheet

Linear Ball Bearings

INA from Schaeffler linear ball bearings KH and linear ball bearing and housing units of the compact range have a small radial design envelope and are economical. Their low radial section height automatically makes them attractive for applications in which only a small amount of radial space is available.

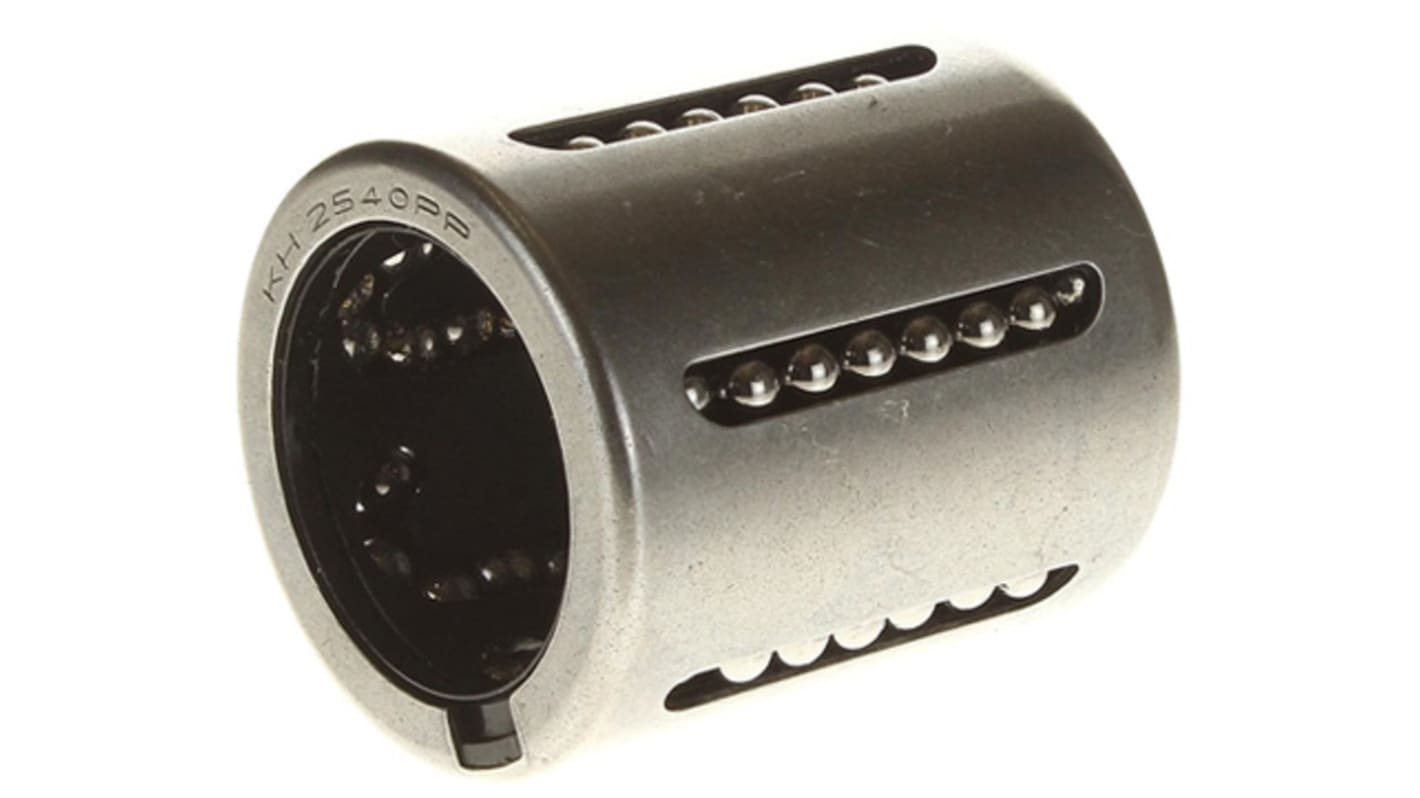

The bearings have an outer ring with openings and contain a ball and cage assembly with a plastic cage. The outer ring is formed and hardened. The balls undergo return travel along the openings in the outer ring.

The bearings are available in an open version and with lip seals on both sides (suffix PP). The end face seals have two seal lips; the outer lip prevents the ingress of contamination, the inner lip retains the lubricant in the bearing.

Features and Benefits

• Lower operating costs

• Reduced maintenance due to improved lubrication

• Lower heat generation

• Less noise

Product Application Information

Due to the closed design, these linear bearings are suitable for use on shafts.

Suffixes

PP - Lip seals on both sides

Schaeffler Ball Bearing, 10mm Inside Diameter, 17mm Outside Diameter - KH10-PP

This ball bearing is designed for precision applications, offering smooth movement and reduced friction in mechanical systems. With an inside diameter of 10mm and an outside diameter of 17mm, this bearing is built from steel for durability. Its robust construction and effective sealing make it ideal for various industrial uses.

Features & Benefits

• High static load rating of 520N for increased durability
• Dynamic load rating of 590N ensures reliable performance
• Double-sealed design protects against contaminants
• Steel construction delivers strength and longevity
• Polyamide cage reduces friction and wear
• One-row configuration supports high-speed operation

Applications

• Suitable for linear motion systems in machinery
• Ideal for electronic devices requiring precision
• Effective in mechanical assemblies needing high load capacity

What type of sealing does this component use?

The component features a double-sealed arrangement, offering protection from debris and contaminants, which enhances its longevity.

How does the cage material contribute to performance?

The polyamide cage reduces friction, supporting smoother operation and reduced wear, particularly in high-speed applications.

Can this bearing handle heavy loads?

Yes, with a static load rating of 520N and a dynamic load rating of 590N, this bearing is built to support significant loads in demanding environments.

What is the significance of the parallel bore type?

The parallel bore type allows for straightforward installation and alignment, ensuring efficient functioning without the need for additional spacing or adjustments.

INA

Attribute	Value
Inside Diameter	10mm
Outside Diameter	17mm
Race Width	26mm
Ball Bearing Type	Linear Ball Bearing
Sealing Arrangement	Both Sides Sealed
Bearing Clearance	CN
Material	Steel
Ball Material	Steel
Cage Material	Polyamide
Number of Rows	1
Static Load Rating	520N
Dynamic Load Rating	590N
Bore Type	Parallel
Partial Bearing Code	KH10PP
Race Type	Plain
