Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
$33.38
(exc. GST)
$36.72
(inc. GST)
- RS Stock No.:
- 144-0967
- Brand:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Adapter Type | Plug-In Adapter | |
| Plug Type | 2-Pin IEC | |
| Output Voltage | 24V dc | |
| Input Voltage | 90 → 264V ac | |
| Output Current | 0 → 1A | |
| Maximum Temperature | +40°C | |
| Output Connector | 2.1 x 5.5 mm Connector | |
| Input Connector | C8 | |
| Number of Outputs | 1 | |
| Power Rating | 24W | |
| Cable Length | 1.83m | |
| Standards Met | CB, CE, cUL, FCC, SAA, TUV, UL | |
| Efficiency | 86% | |
| MTBF | 50000h | |
| Minimum Temperature | 0°C | |
| Depth | 35mm | |
| Width | 45.5mm | |
| Energy Efficiency Level | VI | |
| Length | 88mm | |
| Series | HK-AY | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Adapter Type Plug-In Adapter | ||
Plug Type 2-Pin IEC | ||
Output Voltage 24V dc | ||
Input Voltage 90 → 264V ac | ||
Output Current 0 → 1A | ||
Maximum Temperature +40°C | ||
Output Connector 2.1 x 5.5 mm Connector | ||
Input Connector C8 | ||
Number of Outputs 1 | ||
Power Rating 24W | ||
Cable Length 1.83m | ||
Standards Met CB, CE, cUL, FCC, SAA, TUV, UL | ||
Efficiency 86% | ||
MTBF 50000h | ||
Minimum Temperature 0°C | ||
Depth 35mm | ||
Width 45.5mm | ||
Energy Efficiency Level VI | ||
Length 88mm | ||
Series HK-AY | ||
- COO (Country of Origin):
- CN

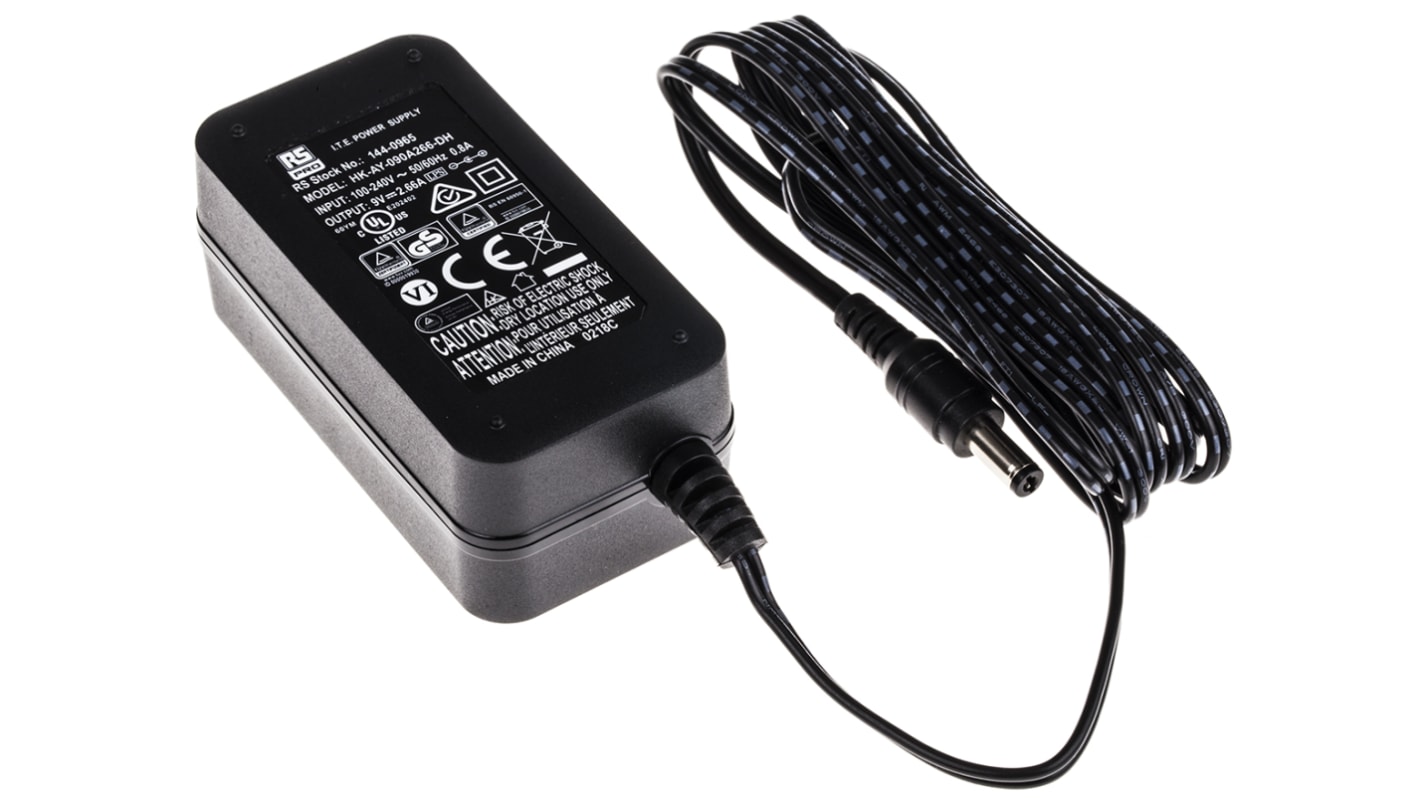

RS Pro 24W Single Output Switch Mode Desktop Power Supply
The RS Pro class 1 Desktop power supply with ErP has output power of 24W and compliance to ErP Level VI efficiency regulations. The switching power supply is ideal to provide power for technology equipment’s including electrical business equipment. The adaptor meets the requirements if lead free and RoHS. This power supply is lightweight, simple to use, has a 2 pin IEC plug type.
Features & benefits include:
• Level VI Efficiency
• 2 Pin IEC (C8) Inlet Desktop Power Supply
• Universal Input 90∼264V-AC 47∼63Hz
• Efficiency 86.20%
• Short Circuit Protected
• Operating Temperature 0∼40°C
• RoHS-REACH and CE Compliant
• Limited Power Source (LPS)
• Very Low Power Consumption <0.10W
• ERP II Regulations Compliant
• 2 Pin IEC (C8) Inlet Desktop Power Supply
• Universal Input 90∼264V-AC 47∼63Hz
• Efficiency 86.20%
• Short Circuit Protected
• Operating Temperature 0∼40°C
• RoHS-REACH and CE Compliant
• Limited Power Source (LPS)
• Very Low Power Consumption <0.10W
• ERP II Regulations Compliant
How does it connect?
• The desktop power supply complies with a 2-pin IEC (C8) plug type (not supplied)
What devices can I power?
• Consumer electronics
Safety Standards & Approvals
UL, cUL, FCC, CB, SAA, CE, REACH & RoHS
