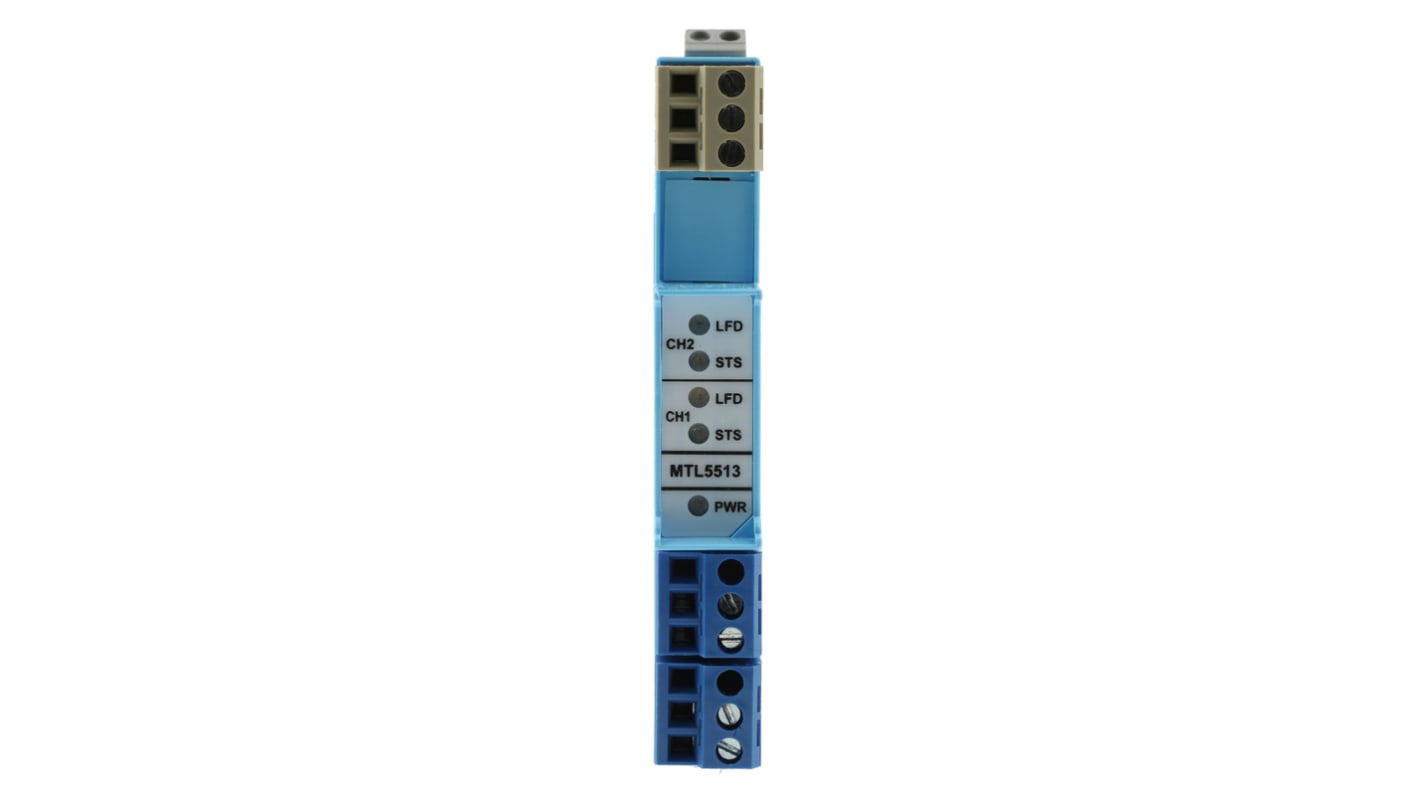

Eaton 2 Channel Zener Barrier, Solenoid Driver, NAMUR Sensor, Switch Input, ATEX

RS Stock No.:: 703-7046
Mfr. Part No.:: MTL5513/RS
Brand:: Eaton

Eaton 2 Channel Zener Barrier, Solenoid Driver, NAMUR Sensor, Switch Input, ATEX

Price (ex. GST) Each

$651.16

(exc. GST)

$716.28

(inc. GST)

On back order for despatch 19/11/2024, delivery within 10 working days from despatch date.*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 +	$651.16

Alternative

This product is not currently available. Here is our alternative recommendation.

PR Electronics 9200 Series Pulse Isolator, NAMUR Sensor, Switch Input, Relay Output, 19.2 → 31.2V dc Supply, ATEX

RS Stock No.: 796-7054

Price (ex. GST) Each

$412.33

(exc. GST)

$453.56

(inc. GST)

RS Stock No.:: 703-7046
Mfr. Part No.:: MTL5513/RS
Brand:: Eaton

5500 Series IS Interface Units

The MTL5500 series is the latest generation of MTL isolators. Incorporating advanced circuit design and innovative isolating transformer construction. The compact 16mm wide design reduces weight and gives a high packing density and reduction in power consumption. They build on the success of the MTL5000 series to bring the benefits of galvanic isolation with exceptional design and reliability.,II (I) GD (Ex ia) IIC,IECEx, ATEX (Baseefa) FM, CSA

Features and Benefits

3-Port Isolation
High Packing density
Low power dissipation
Multi-channel I/O modules
Compatible with preceding MTL5000 series
Assessed for Functional safety IEC61508 applications
Required EX numbers and information displayed on cover where applicable

Eaton MTL Zener Barrier, 2 Channels, 20 to 35V DC Supply Voltage - MTL5513/RS

Use this Zener barrier from Eaton MTL with your switches or proximity sensors in hazardous industrial areas. It regulates voltage and current supply to minimise the risk of electrical hazards. The unit can carry two signal loads at once for enhanced efficiency. To boost safety, it has LFD (line fault detection) capability to quickly notify you of any electrical faults in your circuits. You'll find a Zener barrier like this one used in instrumentation and control applications.

• Wide supply voltage range between 20 and 35V DC for versatility
• Maximum current consumption of 90mA at 24V for energy efficiency
• Designed for DIN rail mounting for quick and simple installation
• Backwards compatibility with legacy equipment from the MTL5000 series for added versatility

Can this device withstand extreme temperatures?

Yes, it can. Thanks to its operating temperature range of -20°C to +65°C, it's suitable for use in both hot and cold environments.

How can I tell if this device is active?

It has multiple LED indicators that show you its operating status at a glance. Green means it's on, yellow indicates that the output signal is active and red means that a line fault has been detected.

Note

Eaton formerly known as MTL

Attribute	Value
Number of Channels	2
Module Type	Solenoid Driver
Barrier Type	Galvanic Barrier
Maximum Voltage	10.5V
Hazardous Area Certification	ATEX
Input Signal Type	NAMUR Sensor, Switch
Maximum Current	14mA
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-20°C
Supply Voltage	20 → 35V dc
Safety Current Maximum	14mA
Safety Voltage Maximum	10.5 V
