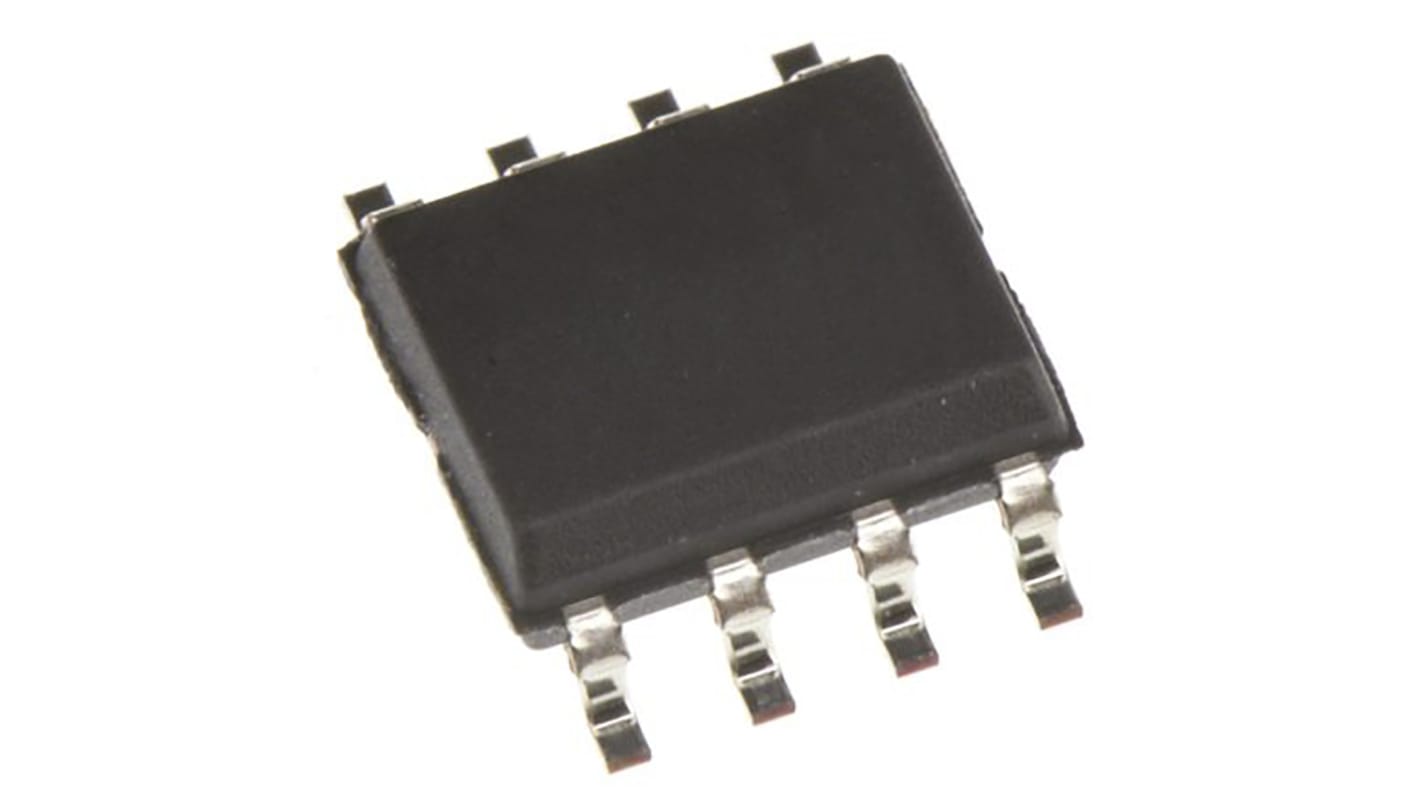

STMicroelectronics 6, 18V Zener Diode SMT 8-Pin SOIC
- RS Stock No.:
- 190-7556
- Mfr. Part No.:
- DALC112S1RL
- Brand:
- STMicroelectronics
2250 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 10)
$1.746
(exc. GST)
$1.921
(inc. GST)
| Units | Per unit | Per Pack* |
| 10 - 620 | $1.746 | $17.46 |
| 630 - 1240 | $1.72 | $17.20 |
| 1250 + | $1.677 | $16.77 |
| *price indicative | ||
- RS Stock No.:
- 190-7556
- Mfr. Part No.:
- DALC112S1RL
- Brand:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
ARRAY of 12 diodes configured by cells of 2 diodes, each cell being used to protect signal line from transient overvoltages by clamping action. Its very low capacitance allows to protect fast signals with no distortion. It is particularly suited for the protection of graphic video ports
ARRAY OF 12 DIODES FOR ESD PROTECTION.
VERY LOW CAPACITANCE PER DIODE: C<5pF.
PEAK REVERSE VOLTAGE VRRM= 18V PER DIODE.
VERY LOW LEAKAGE CURRENT : IR < 2 μA.
VERY LOW CAPACITANCE PER DIODE: C<5pF.
PEAK REVERSE VOLTAGE VRRM= 18V PER DIODE.
VERY LOW LEAKAGE CURRENT : IR < 2 μA.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Nominal Zener Voltage | 18V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 6 |
| Package Type | SOIC |
| Pin Count | 8 |
| Maximum Reverse Leakage Current | 2µA |
| Dimensions | 5 x 1.65 x 4mm |
| Maximum Operating Temperature | +150 °C |
| Forward Current | 50mA |
| Forward Voltage | 1.3V |
