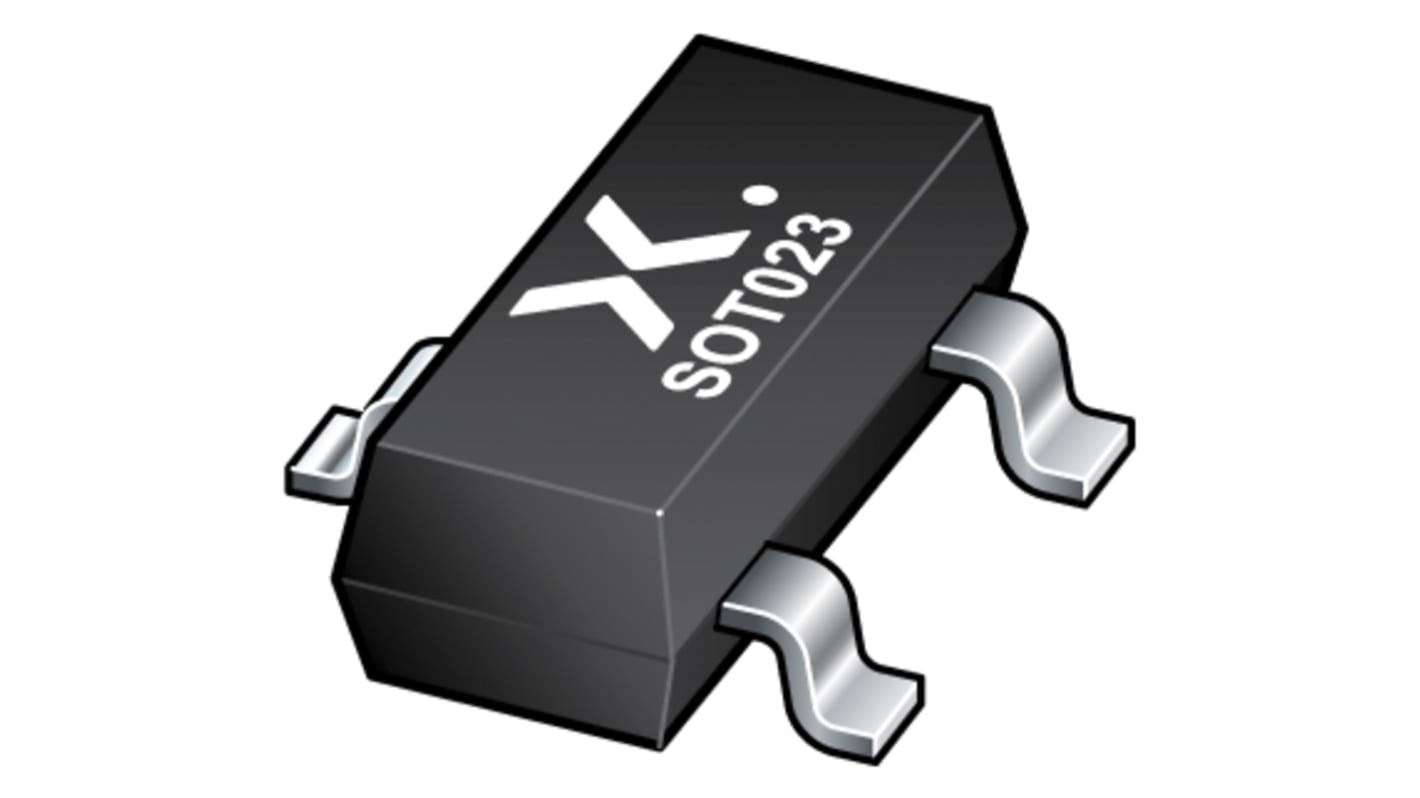

Nexperia, 2.4V Zener Diode ±2% 250 mW SMT 3-Pin TO-236AB
- RS Stock No.:
- 151-2603
- Mfr. Part No.:
- BZX84-B2V4,215
- Brand:
- Nexperia
3000 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (On a Reel of 3000)
$0.044
(exc. GST)
$0.048
(inc. GST)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | $0.044 | $132.00 |
| 6000 - 9000 | $0.043 | $129.00 |
| 12000 + | $0.042 | $126.00 |
| *price indicative | ||
- RS Stock No.:
- 151-2603
- Mfr. Part No.:
- BZX84-B2V4,215
- Brand:
- Nexperia
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Voltage regulator diodes, Low-power voltage regulator diodes in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ±1 % (BZX84-A), ±2 % (BZX84-B) and approximately ±5 % (BZX84-C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4Vto75 V.
Total power dissipation: ≤ 250 mW
Three tolerance series: ±1%, ±2% and approximately ±5%
AEC-Q101 qualified
Working voltage range: nominal 2.4 V to 75 V (E24 range)
Non-repetitive peak reverse power dissipation: ≤ 40 W
Three tolerance series: ±1%, ±2% and approximately ±5%
AEC-Q101 qualified
Working voltage range: nominal 2.4 V to 75 V (E24 range)
Non-repetitive peak reverse power dissipation: ≤ 40 W
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 2.4V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 250 mW |
| Package Type | TO-236AB |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 3 |
| Test Current | 5mA |
| Dimensions | 3 x 1.4 x 1.1mm |
| Forward Current | 200mA |
| Typical Voltage Temperature Coefficient | -1.6mV/K |
| Automotive Standard | AEC-Q101 |
| Forward Voltage | 0.9V |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
