- RS Stock No.:
- 405-720
- Mfr. Part No.:
- NC3MXBAH
- Brand:
- Neutrik
72 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$11.01
(exc. GST)
$12.11
(inc. GST)
Units | Per unit |
1 - 24 | $11.01 |
25 - 124 | $10.86 |
125 + | $9.77 |
- RS Stock No.:
- 405-720
- Mfr. Part No.:
- NC3MXBAH
- Brand:
- Neutrik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- LI
Product Details

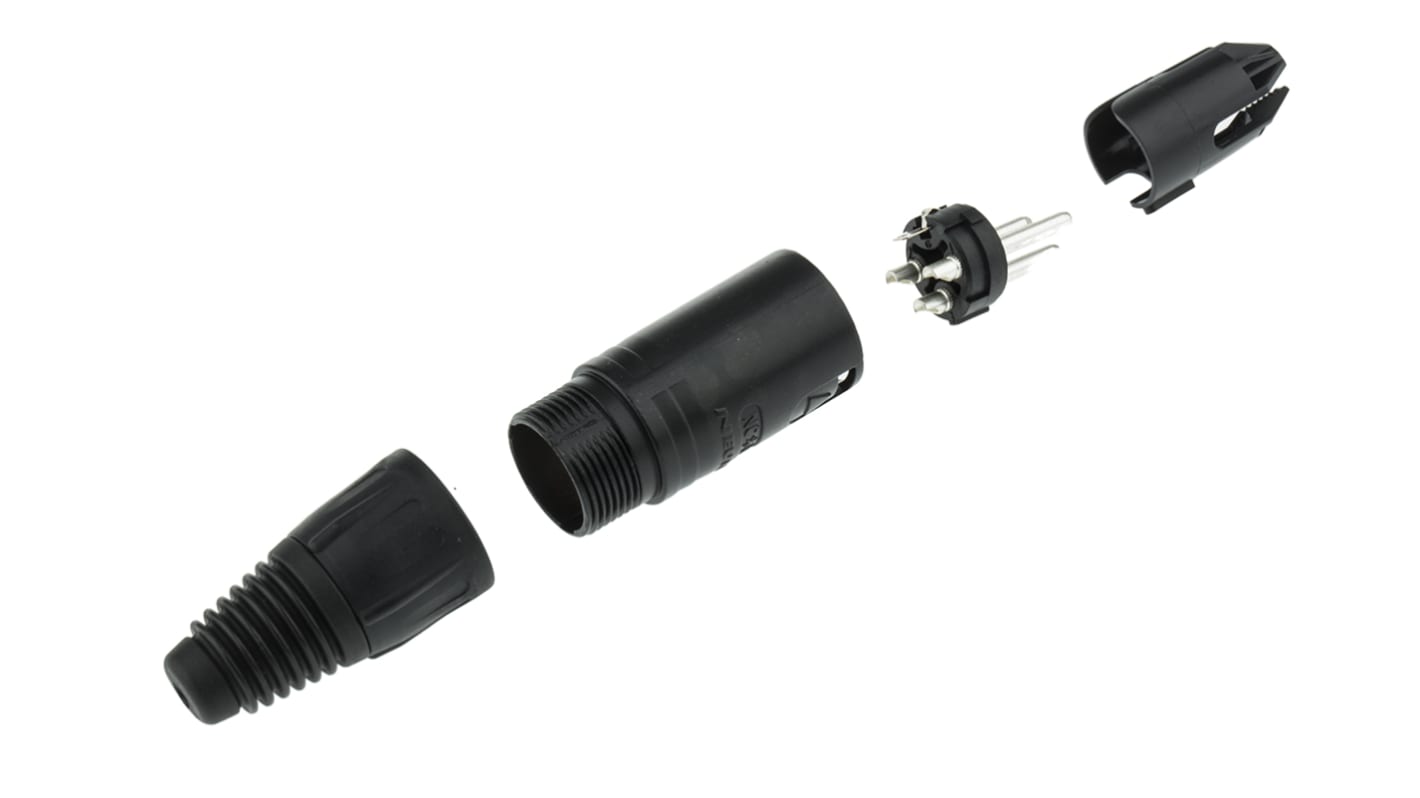

X Series XLR Cable Connectors
Precision engineered audio connectors from Neutrik. Their construction ensures reliable connection for both power and low-level signal circuitry.
The Connector/Cable assembly is straightforward, employing a minimal number of parts with no assembly screws required. Parts are polarised and securely fitted, thereby eliminating connector noise. Available in either nickel or black chrome finishes, the cable mounting parts have a self adjusting strain relief for cable diameters between 3 and 8 mm, and mated connectors are secured by a latch.
This product has dual use terminals which can either be soldered or crimped for increased choice and ease of connectivity.
For type MP see Stock number: 543-591 and for type FP1 Stock number: 543-579.
The Connector/Cable assembly is straightforward, employing a minimal number of parts with no assembly screws required. Parts are polarised and securely fitted, thereby eliminating connector noise. Available in either nickel or black chrome finishes, the cable mounting parts have a self adjusting strain relief for cable diameters between 3 and 8 mm, and mated connectors are secured by a latch.
This product has dual use terminals which can either be soldered or crimped for increased choice and ease of connectivity.
For type MP see Stock number: 543-591 and for type FP1 Stock number: 543-579.
Features and Benefits:
Connector bodies: Diecast zinc/aluminium
Insulator: Polyester/Nylon
Contacts: Copper alloy
Plating: Hard silver
Operating temperature: -30°C → +80°C
Insertion force: ≤ 20 N
Withdrawal force: ≤ 10 N
Current per contact: 3-way 16A, 4-way 10A, 5- & 6-way 7.5 A , 7-way 6 A
Rated voltage: 250 V a.c.
Test voltage: 1500 V a.c.
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 109Ω
Connector bodies: Diecast zinc/aluminium
Insulator: Polyester/Nylon
Contacts: Copper alloy
Plating: Hard silver
Operating temperature: -30°C → +80°C
Insertion force: ≤ 20 N
Withdrawal force: ≤ 10 N
Current per contact: 3-way 16A, 4-way 10A, 5- & 6-way 7.5 A , 7-way 6 A
Rated voltage: 250 V a.c.
Test voltage: 1500 V a.c.
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 109Ω
Identification boots supplied in a bag of 9 colours include:
Blue, Brown, Green, Grey, Orange, Purple, Red, White, Yellow and Black
Blue, Brown, Green, Grey, Orange, Purple, Red, White, Yellow and Black
:
Identification collars in a bag of 10 colours include:
Blue, Brown, Green, Grey, Orange, Purple, Red, White, Yellow and Black, Black only (see stock number 448-7186.)
Blue, Brown, Green, Grey, Orange, Purple, Red, White, Yellow and Black, Black only (see stock number 448-7186.)
:
Warning
Not to be used as mains connectors
Specifications
Attribute | Value |
---|---|
Number of Contacts | 3 |
Gender | Male |
Mounting Type | Cable Mount |
Body Orientation | Straight |
Colour | Black Metallic |
Contact Plating | Silver |
Housing Material | Zinc |
Termination Method | Solder |
Current Rating | 16A |
Voltage Rating | 50 V |
Contact Material | Brass |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +80°C |
