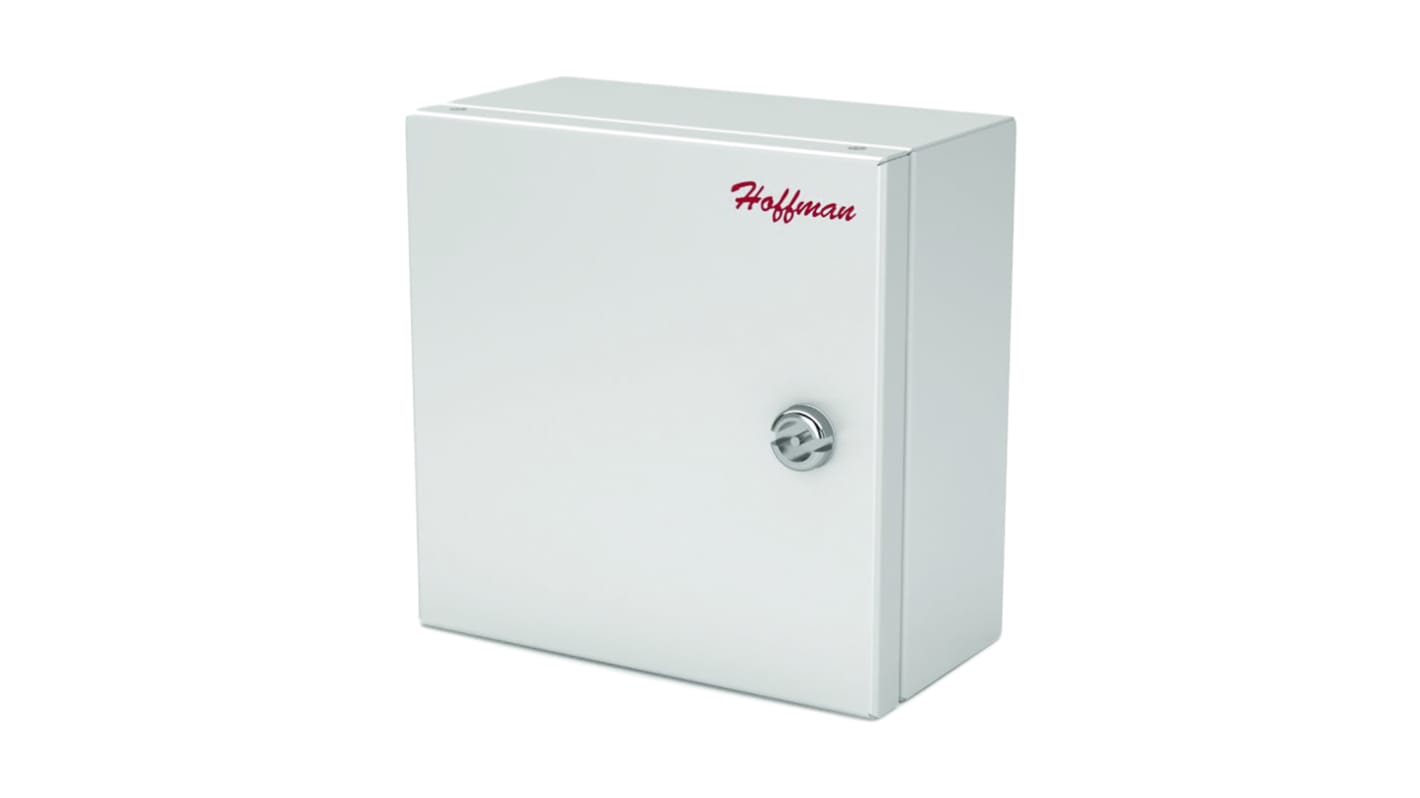

Hoffman GL66 Terminal Boxes, Hinged Lid

The GL66 series from Hoffman are mild steel wall mount enclosures with a durable light-grey finish and an ergonomic and aesthetic styling. They have an outward formed flange to prevent contaminants from entering the enclosure. The door of the GL66 enclosure has a seamless foam-in-place gasket, removable hinges and can be opened 180°.

Features and Benefits

Mild steel construction

Body thickness 1.2 mm (except MHC200200120E & MHC30020080E which are 1 mm)

Door thickness 1.2 mm

Seams continuously welded and ground smooth

External formed body flange

Mounting holes in back of body for direct mounting or for optional external mounting brackets

Seamless foam-in-place gasket

Quarter-turn latch with 3 mm double-bit insert

Finish RAL 7035 textured light grey polyester powder paint

Grounding studs system

Installation instructions

Application Information

The GL66 terminal boxes are ideal for indoor and outdoor applications which require corrosion protection from chemicals and water. They are designed to house and protect electrical and electronic components in industrial environments.

Note

Mounting brackets required to meet UL/CSA external mounting requirements.

Approvals

UL 508A listed: Type 3, 4, 12, File No. E61997.
cUL Listed per CSA C22. 2 No. 94: Type 3, 4, 12, File No. E61997.

Standards

NEMA/EEMAC Type 4 and 12
CSA, File No. 42186: Type 4, 12
IEC/EN62262 IK9
IEC 60529 IP66
IEC 62208

Select all	Attribute	Value
	Brand	nVent HOFFMAN
	Product Type	Wall Box
	Body Material	Steel
	IP Rating	IP66
	Colour	White
	Standards/Approvals	RoHS
	IK Rating	IK09

	Select all
	Brand nVent HOFFMAN
	Product Type Wall Box
	Body Material Steel
	IP Rating IP66
	Colour White
	Standards/Approvals RoHS
	IK Rating IK09

nVent HOFFMAN Steel Wall Box, IP66
