Lascar V125 Series Digital Voltmeter DC, LCD Display 3-Digits ±3 %, 45 mm, 21.5 mm
- RS Stock No.:
- 419-9384
- Mfr. Part No.:
- V 125
- Brand:
- Lascar
Bulk discount available
Subtotal (1 pack of 10 units)*
$495.84
(exc. GST)
$545.42
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 120 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 16 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | $49.584 | $495.84 |
| 50 - 90 | $49.142 | $491.42 |
| 100 + | $48.331 | $483.31 |
*price indicative
- RS Stock No.:
- 419-9384
- Mfr. Part No.:
- V 125
- Brand:
- Lascar
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lascar | |
| Product Type | Digital Voltmeter | |
| Current Type | DC | |
| Number of Digits | 3 | |
| Display Type | LCD | |
| Cutout Height | 45mm | |
| Cutout Width | 21.5mm | |
| Digit Height | 12.5mm | |
| Meter Accuracy | ±3 % | |
| Series | V125 | |
| Minimum Operating Temperature | 0°C | |
| Standards/Approvals | LVD 93/68/EEC, BS EN 61010 | |
| Maximum Operating Temperature | 50°C | |
| Select all | ||
|---|---|---|
Brand Lascar | ||
Product Type Digital Voltmeter | ||
Current Type DC | ||
Number of Digits 3 | ||
Display Type LCD | ||
Cutout Height 45mm | ||
Cutout Width 21.5mm | ||
Digit Height 12.5mm | ||
Meter Accuracy ±3 % | ||
Series V125 | ||
Minimum Operating Temperature 0°C | ||
Standards/Approvals LVD 93/68/EEC, BS EN 61010 | ||
Maximum Operating Temperature 50°C | ||

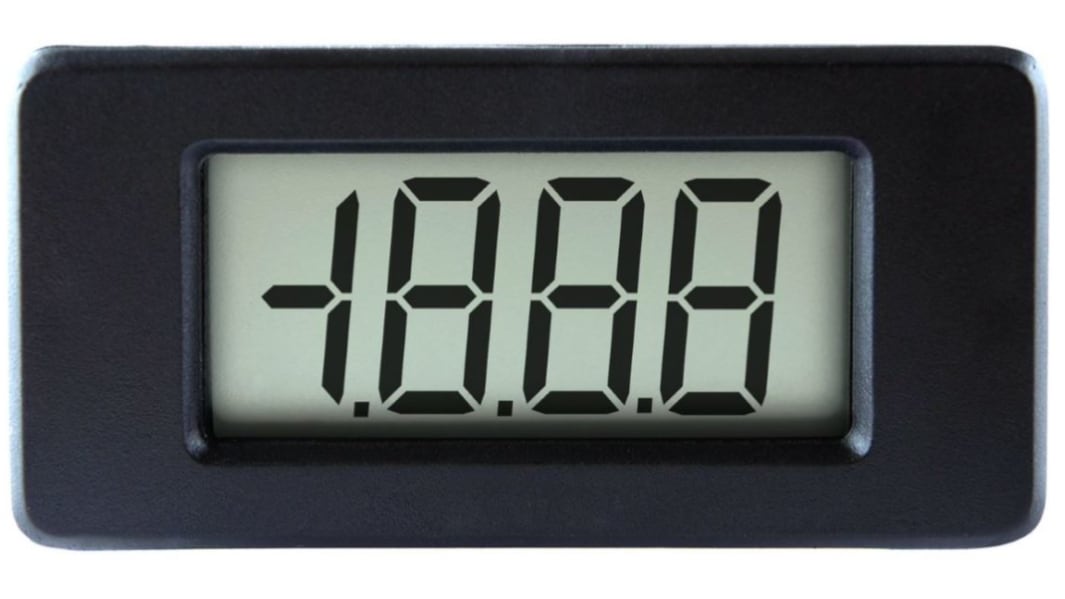

Lascar Digital Voltmeter
The Lascar digital voltmeter is a panel meter ideally suited for high volume applications. It features an exceptionally large display in a miniature package along with an auto-zero and user-selectable decimal points. The module is supplied with a panel mounting bezel. Its full-scale reading is 200mVDC and supply voltage ranging between 7VDC and 12VDC.
Features and Benefits
Low cost
Digit height is 12.5mm (0.5in)
1mA at 9VDC power supply
Auto-zero
Auto-polarity
User selectable decimal points
Supplied with a mounting bezel
Operating temperature ranging between 0°C and 0°C
Applications
Power supply monitoring
Panel-mount indication
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
