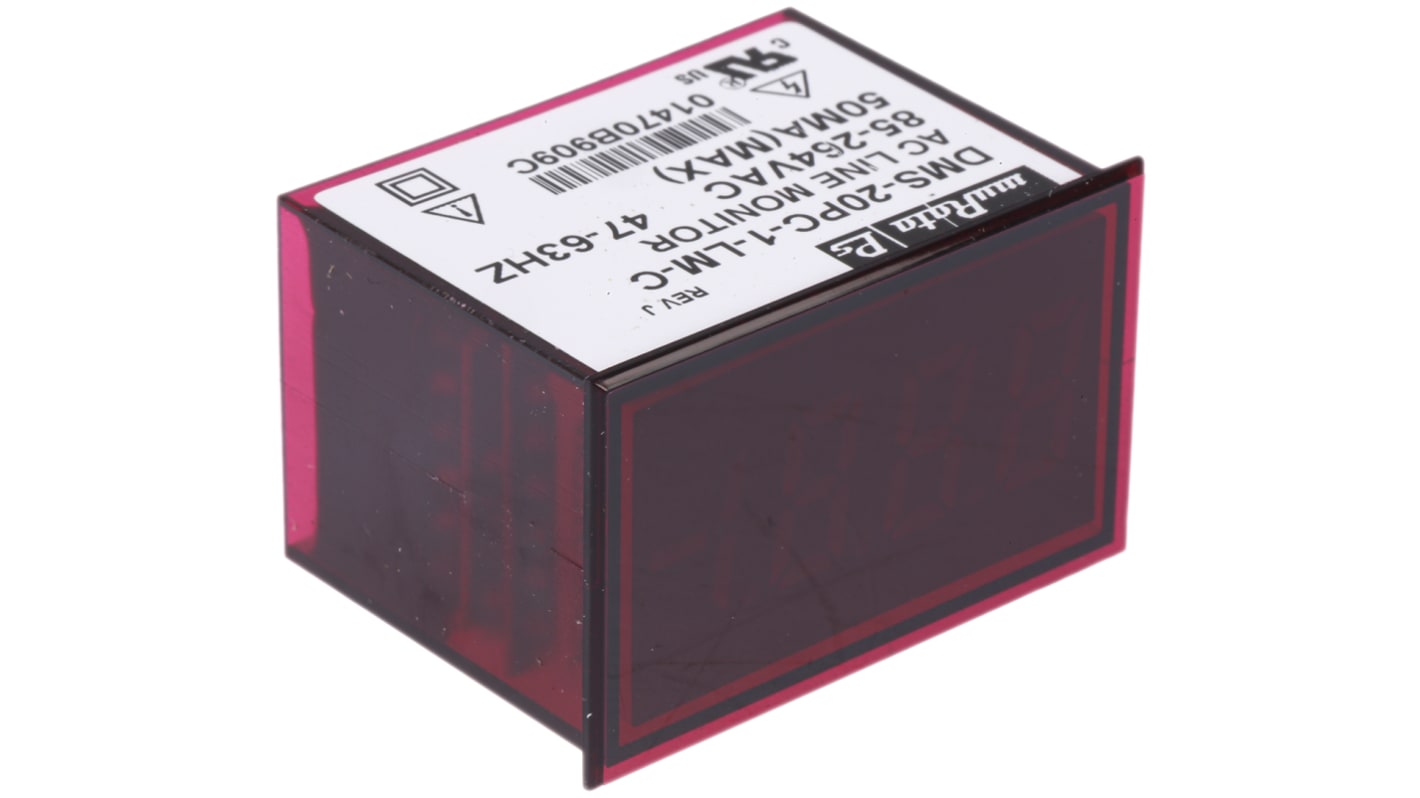

Murata Power Solutions DMS-20PC Series Digital Voltmeter AC, 21.29 mm, 33.93 mm

RS Stock No.:: 176-4171
Mfr. Part No.:: DMS-20PC-1-LM-C
Brand:: Murata Power Solutions

Murata Power Solutions DMS-20PC Series Digital Voltmeter AC, 21.29 mm, 33.93 mm

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

$112.90

(exc. GST)

$124.19

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

Plus 1 unit(s) shipping from 27 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	$112.90
5 +	$92.93

*price indicative

RS Stock No.:: 176-4171
Mfr. Part No.:: DMS-20PC-1-LM-C
Brand:: Murata Power Solutions

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Murata Power Solutions
	Current Type	AC
	Product Type	Digital Voltmeter
	Cutout Height	21.29mm
	Cutout Width	33.93mm
	Depth	17.45mm
	Standards/Approvals	No
	Maximum Operating Temperature	60°C
	Series	DMS-20PC

	Select all
	Brand Murata Power Solutions
	Current Type AC
	Product Type Digital Voltmeter
	Cutout Height 21.29mm
	Cutout Width 33.93mm
	Depth 17.45mm
	Standards/Approvals No
	Maximum Operating Temperature 60°C
	Series DMS-20PC

Datasheet

Murata Power Solutions Digital Voltmeter

The Murata Power Solutions digital voltmeter is a component-size self-contained AC voltmeter for true line measurements. The large (0.37in/9.4mm), 3.5 digit, bright red LED display makes it easily readable under any lighting conditions. It employs half-wave sinusoidal averaging (RMS calibrated) and has a display resolution of 1VAC over its full input range and is fully encapsulated for ruggedness. Its supply voltage ranging between 85VAC and 264VAC.

Features and Benefits

Low cost

Overvoltage protected to 300VAC

Plugs directly into USA-style wall outlets

Screw terminals for panel mounting

Applications

Industries

Laboratories

Office

Certifications

UL approved

CSA certified

IEC1010-1

ANSI/ESD S20.20:2014

BS EN 61340-5-1:2007
