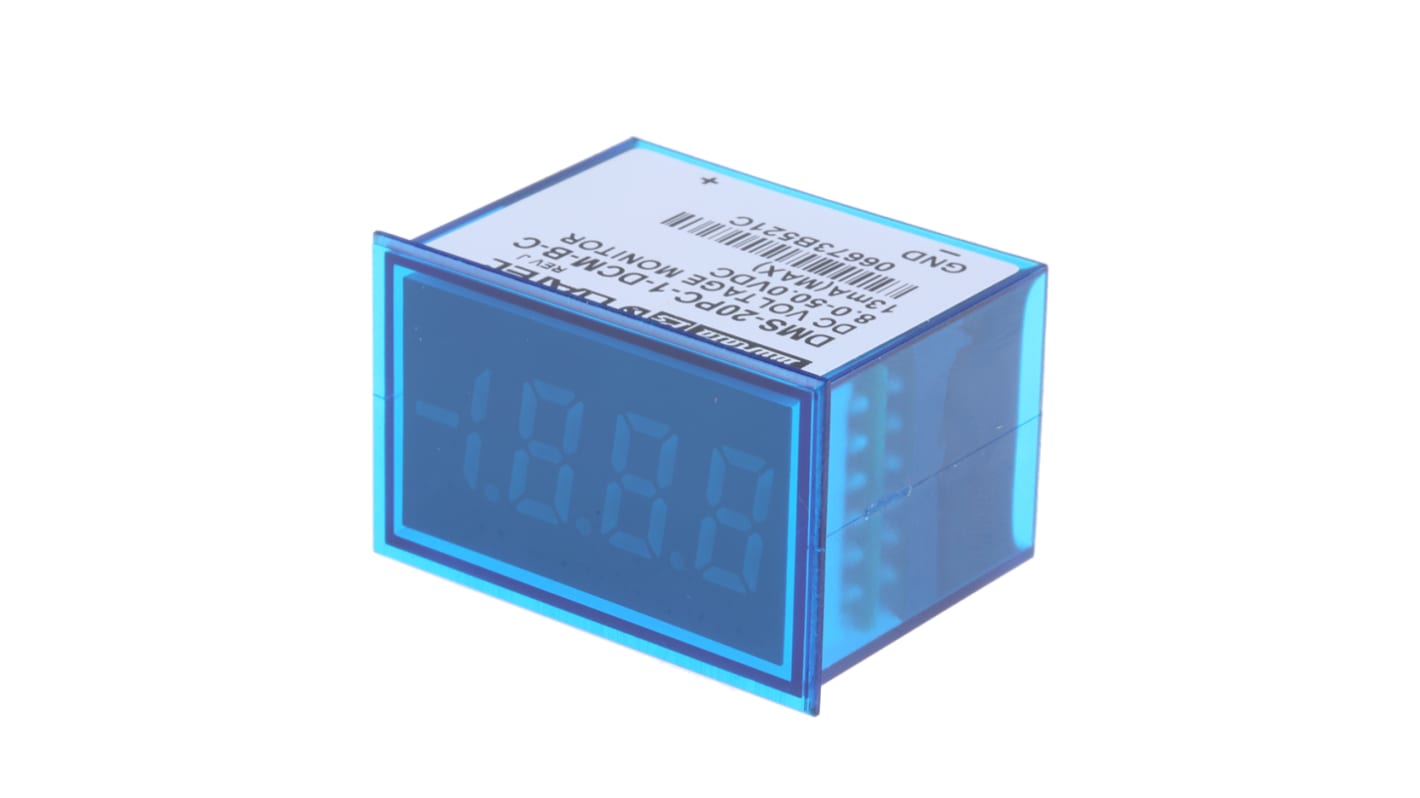

Murata Power Solutions Digital Voltmeter DC, LED Display 3, 3.5-Digits ±0.2 V

RS Stock No.:: 810-3365
Mfr. Part No.:: DMS-20PC-1-DCM-B-C
Brand:: Murata Power Solutions

Murata Power Solutions Digital Voltmeter DC, LED Display 3, 3.5-Digits ±0.2 V

1 In Global stock for delivery within 5 working day(s)

Added

Price (ex. GST) Each

$114.63

(exc. GST)

$126.09

(inc. GST)

Units	Per unit
1 - 4	$114.63
5 +	$94.35

RS Stock No.:: 810-3365
Mfr. Part No.:: DMS-20PC-1-DCM-B-C
Brand:: Murata Power Solutions

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

DMS-20PC-DCM - Self-Powered LED DC Voltage Monitors

The digital panel voltmeter DMS-20PC-DCM series of self-powered, positive-reading, DC voltage monitors are great replacements for older, hard-to-read, analogue panel meters. Simply connect a positive DC voltage across the rear terminals and the meters are fully operational, no additional components or power supplies are required.
A rugged, epoxy-encapsulated, polycarbonate case provides excellent protection against moisture, shock and vibration.

Digital voltmeters with a large 9.4 mm, red or blue, LED display
Different input voltage ranges from +4.50- +19.99V to +30.0- +264V
Self-powered, only two connections required
Ultra-low power consumption (8 mA typ.)
Super reliable, epoxy-encapsulated, construction
Subminiature size with 35x22.4x25.4 mm
Built-in reverse polarity protection assures simple, trouble-free installation
Ideal replacements for analogue panel meters

Murata Power Solutions Series

Specifications

Attribute	Value
Current Type	DC
Number of Digits	3, 3.5
Display Type	LED
Cutout Height	21.29mm
Cutout Width	33.93mm
Depth	25.4mm
Meter Accuracy	±0.2 V
Analogue Effect	Digits Only
Minimum Temperature	-25°C
Meter Type	Voltmeter
Maximum Temperature	+60°C
