Lascar Digital Voltmeter DC, LED Display 3.5-Digits ±1 %

RS Stock No.:: 257-206
Mfr. Part No.:: DPM 40
Brand:: Lascar

Lascar Digital Voltmeter DC, LED Display 3.5-Digits ±1 %

45 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$158.98

(exc. GST)

$174.88

(inc. GST)

Units	Per unit
1 - 4	$158.98
5 - 9	$156.99
10 +	$153.36

RS Stock No.:: 257-206
Mfr. Part No.:: DPM 40
Brand:: Lascar

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

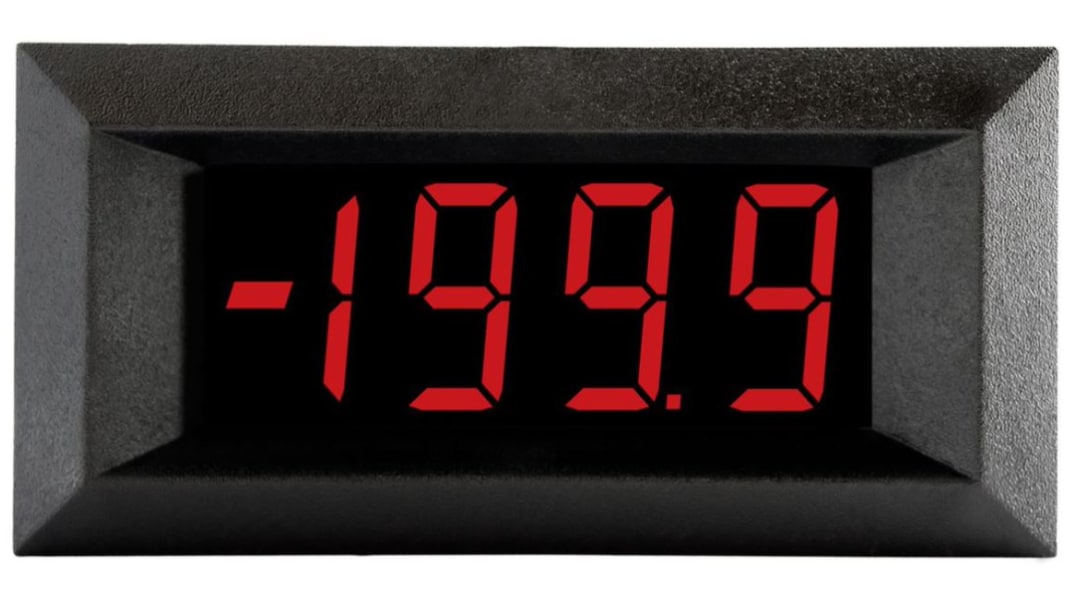

Lascar Digital Voltmeter

The Lascar digital voltmeter is a compact instrument, ideally suited for applications that require excellent readability under all lighting conditions. The meter is fitted with high-efficiency LEDs that, together with the integral red filter, provide a high contrast display. The user can easily scale the meter to indicate volts, amps, or other engineering units and may be used in single-ended, differential, or floating input modules. Its full-scale reading is 200mVDC and voltage supply ranging between 4.5V to 5.5V.

Features and Benefits

Digit height is 11mm (0.43in)
Auto-zero
Auto-polarity
Programmable decimal points
Number of digits are 3.5
Operating temperature ranging between 0°C and 50°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications

Attribute	Value
Current Type	DC
Number of Digits	3.5
Display Type	LED
Cutout Height	33mm
Cutout Width	68mm
Depth	10.6mm
Supply Voltage	4.5 → 5.5 V dc
Digit Height	11 mm
Meter Accuracy	±1 %
Analogue Effect	Digits Only
Minimum Temperature	0°C
Meter Type	Voltmeter
Maximum Temperature	+50°C
