DiodesZetex AZ1117CH-5.0TRG1, 1 Low Dropout Voltage, Voltage Regulator 300mA, 5 V 3+Tab-Pin, SOT-223

RS Stock No.:: 165-8340
Mfr. Part No.:: AZ1117CH-5.0TRG1
Brand:: DiodesZetex

DiodesZetex AZ1117CH-5.0TRG1, 1 Low Dropout Voltage, Voltage Regulator 300mA, 5 V 3+Tab-Pin, SOT-223

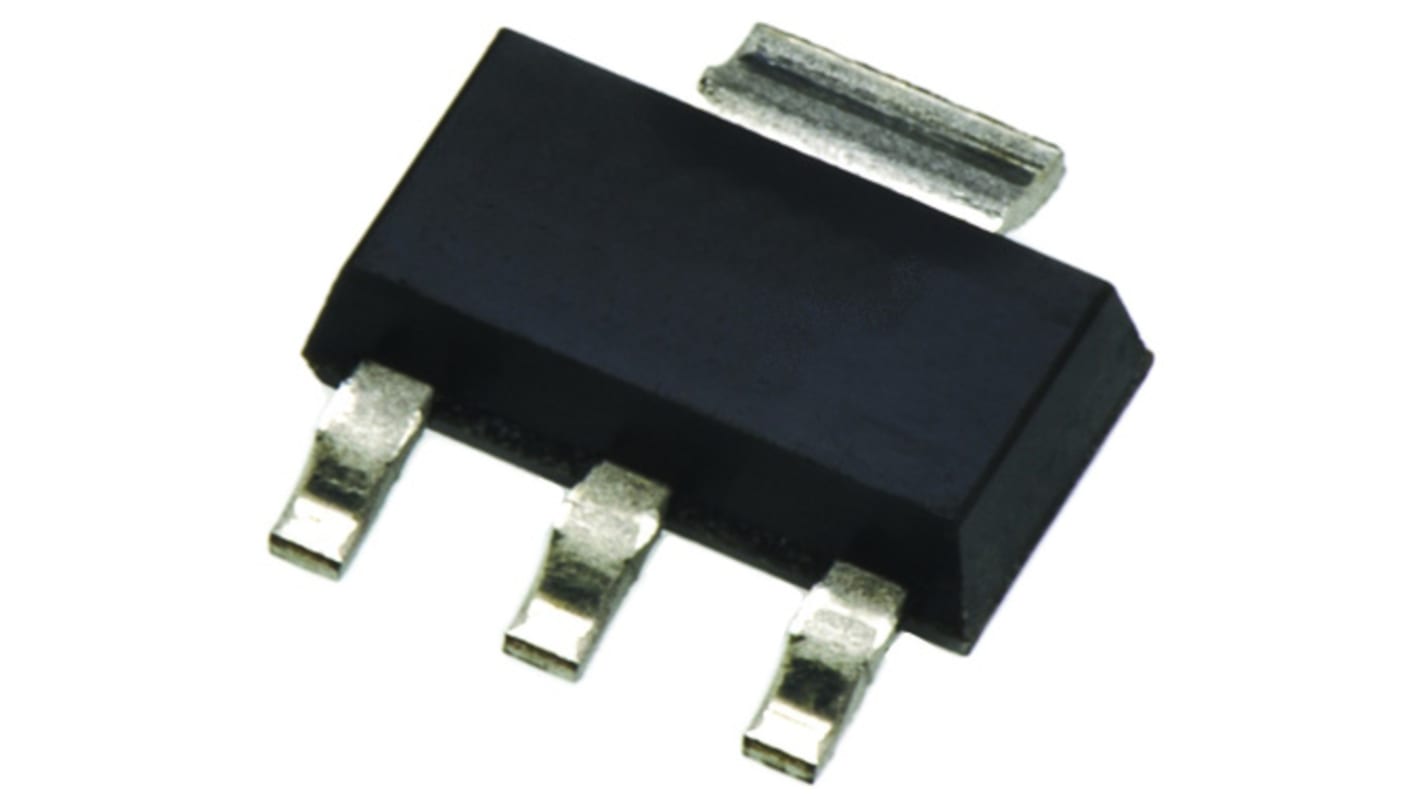

This image is representative of the product range

Bulk discount available

Subtotal (1 reel of 4000 units)**

$532.00

(exc. GST)

$584.00

(inc. GST)

On back order for despatch 24/05/2025, delivery within 10 working days from despatch date.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Units	Per unit	Per Reel**
4000 - 4000	$0.133	$532.00
8000 - 12000	$0.129	$516.00
16000 +	$0.127	$508.00

**price indicative

RS Stock No.:: 165-8340
Mfr. Part No.:: AZ1117CH-5.0TRG1
Brand:: DiodesZetex

AZ1117C, Low Dropout Linear Regulator
ESD Control Selection Guide V1

Attribute	Value
Regulator Type	Low Dropout Voltage
Maximum Output Current	300mA
Number of Outputs	1
Output Voltage	5 V
Line Regulation	10 mV
Load Regulation	15 mV
Accuracy	±1%
Polarity	Positive
Mounting Type	Surface Mount
Quiescent Current	6mA
Package Type	SOT-223
Pin Count	3+Tab
Output Type	Fixed
Dimensions	6.7 x 3.7 x 1.7mm
Maximum Input Voltage	15 V
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-20 °C
Height	1.7mm
Length	6.7mm
Width	3.7mm

DiodesZetex AZ1117CH-5.0TRG1, 1 Low Dropout Voltage, Voltage Regulator 300mA, 5 V 3+Tab-Pin, SOT-223

FREE delivery for orders over $60.00 ex GST

LDO (Low Dropout) Linear Voltage Regulators, 5.0V Output, Diodes Inc
