DiodesZetex AZ1117CH-1.8TRG1, 1 Low Dropout Voltage, Voltage Regulator 800mA, 1.8 V 3+Tab-Pin, SOT-223

RS Stock No.:: 828-7599
Mfr. Part No.:: AZ1117CH-1.8TRG1
Brand:: DiodesZetex

DiodesZetex AZ1117CH-1.8TRG1, 1 Low Dropout Voltage, Voltage Regulator 800mA, 1.8 V 3+Tab-Pin, SOT-223

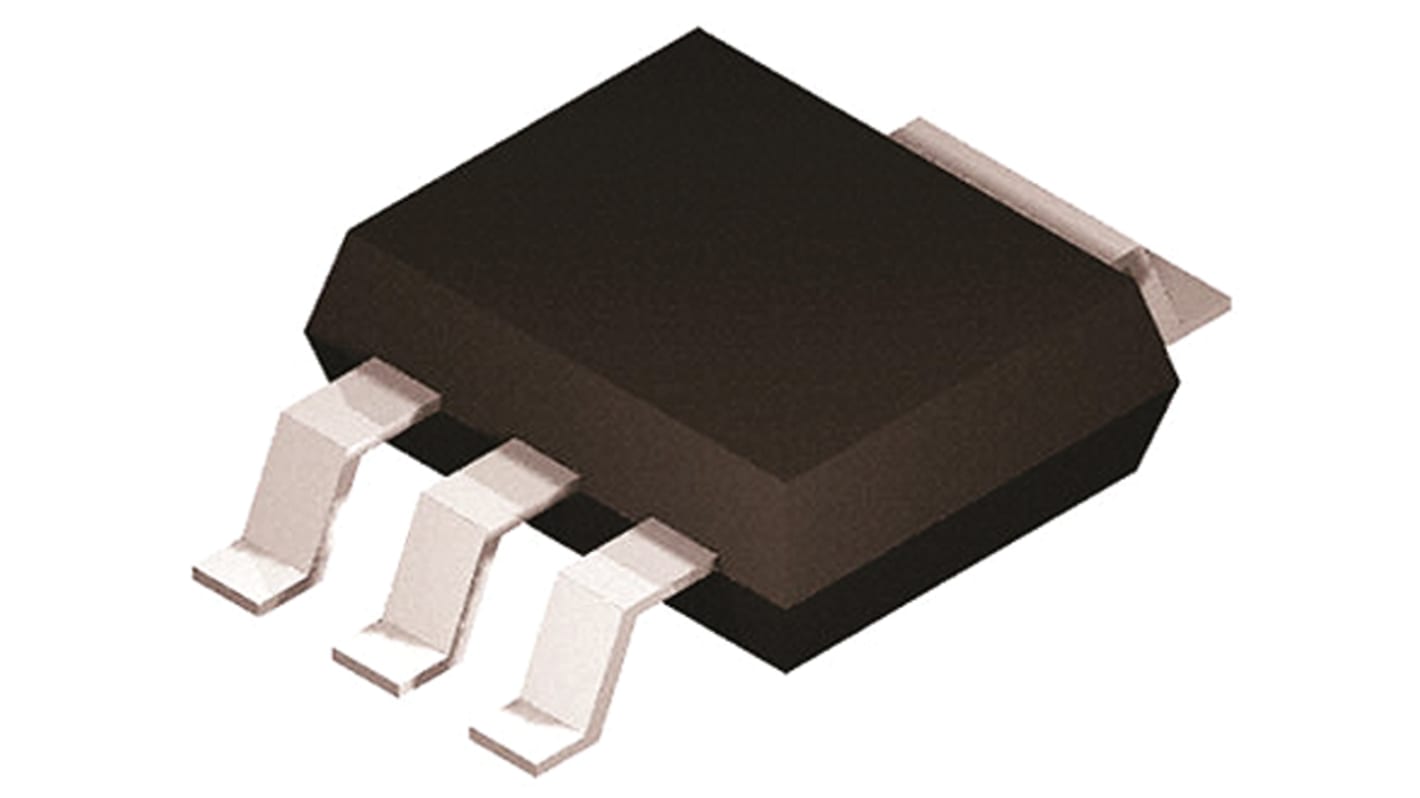

This image is representative of the product range

Bulk discount available

Subtotal (1 pack of 50 units)**

$17.50

(exc. GST)

$19.50

(inc. GST)

On back order for despatch 01/06/2025, delivery within 10 working days from despatch date.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Units	Per unit	Per Pack**
50 - 950	$0.35	$17.50
1000 - 1950	$0.348	$17.40
2000 +	$0.342	$17.10

**price indicative

RS Stock No.:: 828-7599
Mfr. Part No.:: AZ1117CH-1.8TRG1
Brand:: DiodesZetex

AZ1117C LOW DROPOUT LINEAR REGULATOR
ESD Control Selection Guide V1

Attribute	Value
Maximum Output Current	800mA
Regulator Type	Low Dropout Voltage
Number of Outputs	1
Output Voltage	1.8 V
Line Regulation	10 mV
Load Regulation	15 mV
Accuracy	±1%
Polarity	Positive
Mounting Type	Surface Mount
Quiescent Current	6mA
Package Type	SOT-223
Pin Count	3+Tab
Output Type	Fixed
Dimensions	6.7 x 3.7 x 1.7mm
Height	1.7mm
Maximum Input Voltage	15 V
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-20 °C
Length	6.7mm
Width	3.7mm

DiodesZetex AZ1117CH-1.8TRG1, 1 Low Dropout Voltage, Voltage Regulator 800mA, 1.8 V 3+Tab-Pin, SOT-223

FREE delivery for orders over $60.00 ex GST

LDO (Low Dropout) Linear Voltage Regulators, 1.8V Output, Diodes Inc

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
