DiodesZetex AZ1117H-3.3TRE1, 1 Low Dropout Voltage, Voltage Regulator 1A, 3.3 V 3+Tab-Pin, SOT-223

RS Stock No.:: 921-0701
Mfr. Part No.:: AZ1117H-3.3TRE1
Brand:: DiodesZetex

DiodesZetex AZ1117H-3.3TRE1, 1 Low Dropout Voltage, Voltage Regulator 1A, 3.3 V 3+Tab-Pin, SOT-223

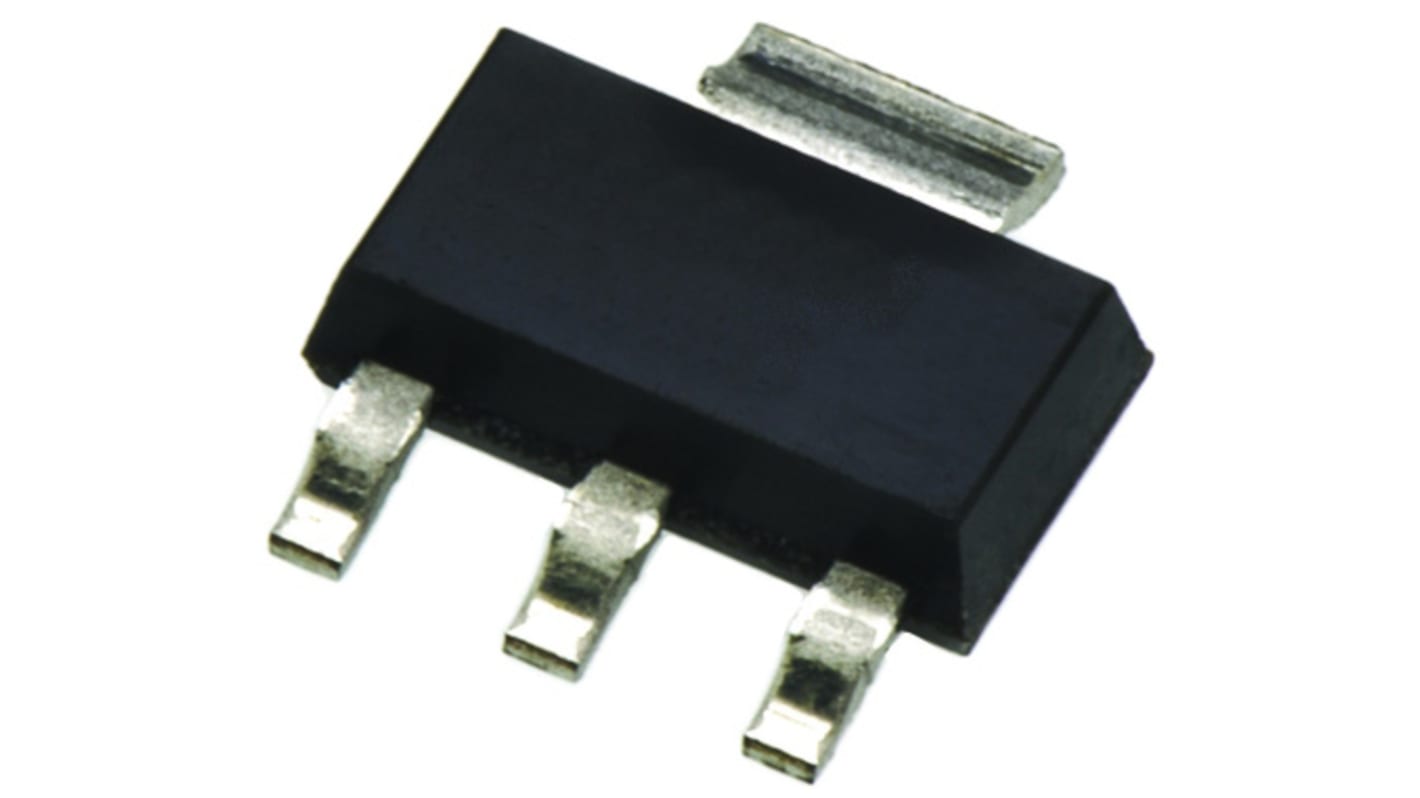

This image is representative of the product range

50 In AU stock for next working day delivery

3100 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each (In a Pack of 50)

$0.431

(exc. GST)

$0.474

(inc. GST)

Units	Per unit	Per Pack*
50 - 950	$0.431	$21.55
1000 - 1950	$0.423	$21.15
2000 +	$0.416	$20.80

*price indicative

RS Stock No.:: 921-0701
Mfr. Part No.:: AZ1117H-3.3TRE1
Brand:: DiodesZetex

AZ1117, 1A Low Dropout Linear Regulator
ESD Control Selection Guide V1

Attribute	Value
Maximum Output Current	1A
Regulator Type	Low Dropout Voltage
Output Voltage	3.3 V
Number of Outputs	1
Line Regulation	6 mV
Load Regulation	10 mV
Accuracy	1%
Mounting Type	Surface Mount
Polarity	Positive
Package Type	SOT-223
Quiescent Current	10mA
Pin Count	3+Tab
Output Type	Fixed
Dimensions	6.7 x 3.7 x 1.7mm
Height	1.7mm
Maximum Input Voltage	15 V
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Length	6.7mm
Width	3.7mm

DiodesZetex AZ1117H-3.3TRE1, 1 Low Dropout Voltage, Voltage Regulator 1A, 3.3 V 3+Tab-Pin, SOT-223

LDO (Low Dropout) Linear Voltage Regulators, 3.3V Output, Diodes Inc
