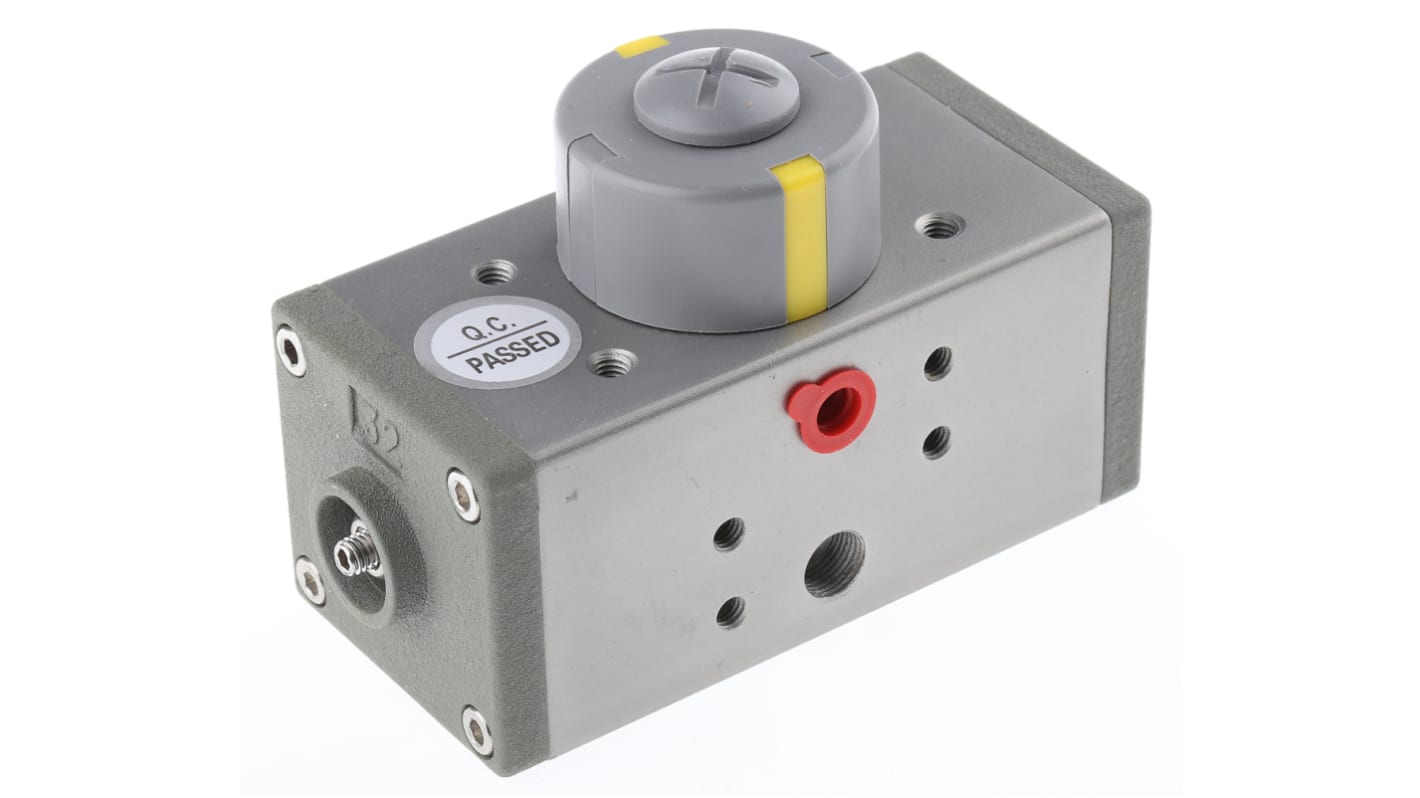

RS PRO Pneumatic 5 port Valve Actuator - Double Acting, 3 → 8bar Operating Pressure

RS Stock No.:: 805-6036
Brand:: RS PRO

RS PRO Pneumatic 5 port Valve Actuator - Double Acting, 3 → 8bar Operating Pressure

2 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$137.14

(exc. GST)

$150.85

(inc. GST)

Units	Per unit
1 - 4	$137.14
5 +	$112.88

RS Stock No.:: 805-6036
Brand:: RS PRO

Technical data sheets

RS Pro Datasheet

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: CN

Product Details

RS Pneumatic Actuators

RS pneumatic actuator valves for the moving or controlling of mechanisms or systems.

Features:

Indicator:

A position indicator with NAMUR mounting as standard

Pinion:

The hardened alloy steel pinion is precision ground and nickel plated to reduce friction

Actuator Body:

Hard anodised aluminium body to protect against wear

End Caps:

Epoxy covered die cast aluminium end caps providing maximum resistance against corrosive elements

Pistons:

The precisely balanced pistons are fitted with high quality rings and guides

High Performance Springs:

High tensile steel springs coated with zinc phosphate

O-rings:

NBR O-rings provide trouble-free operation

Specifications

Attribute	Value
Number of Ports Supported	5
Actuator Type	Pneumatic
Function	Double Acting
Maximum Torque	11.5Nm
Operating Pressure Range	3 → 8bar
